HSG-KSM-2
HSG-KSM-2
Heat Cutters

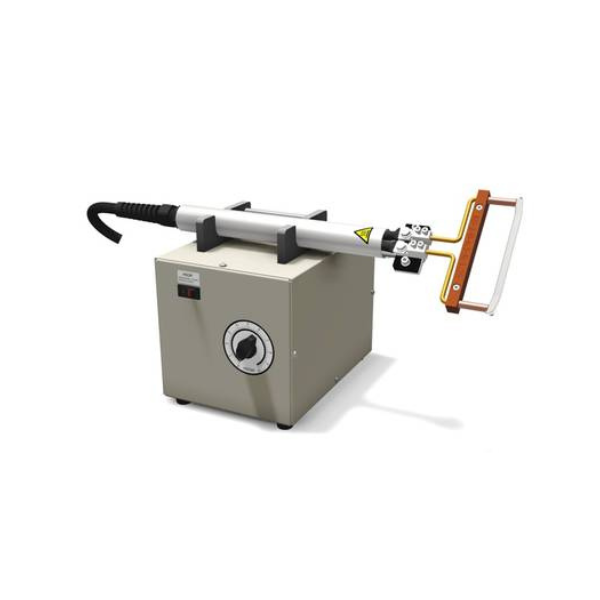

HSG-KSM-2

Precision edge welding of heavy fabric with temp control and 100% duty cycle.

Other Variants

HSG-0 foot SF HSG-00-VW HSG-03-VW HSG-3-VW

Applications

Thermal cutters,
Enquire Now Download Brochure
Description
Heats up in only 6-8 seconds
Working temperature 600 °C (1110 °F) max.
Supply voltage: 230 V-50 Hz (115 V-60 Hz)
Power input: 350 W max.
Continuous operation
Rocker switch with indicator lamp
Supply cord 2 m
Class I protection
Dimensions: 300x185x170 mm
Weight: 12 kg

BASIC KIT:
Edge Sealing Device HSG-KSM-2, 230 V, 350 W, 2 m flexible cord connects handgrip MS-1 with unit
incl. 1 Heating Fork KS-1, construction and dimension as desired (see Datasheet)
Manual
Technical features
Ready to use in just 6-8 seconds Maximum operating temperature: 600 °C Mains voltage: 230 V-50 Hz (115 V-60 Hz) Power consumption: max. 350 W Continuous operation 100% ED Power switch with indicator light Power cord 2 m long Device complies with protection class I Dimensions: 300x185x170mm Weight: 12.0 kg
