Description

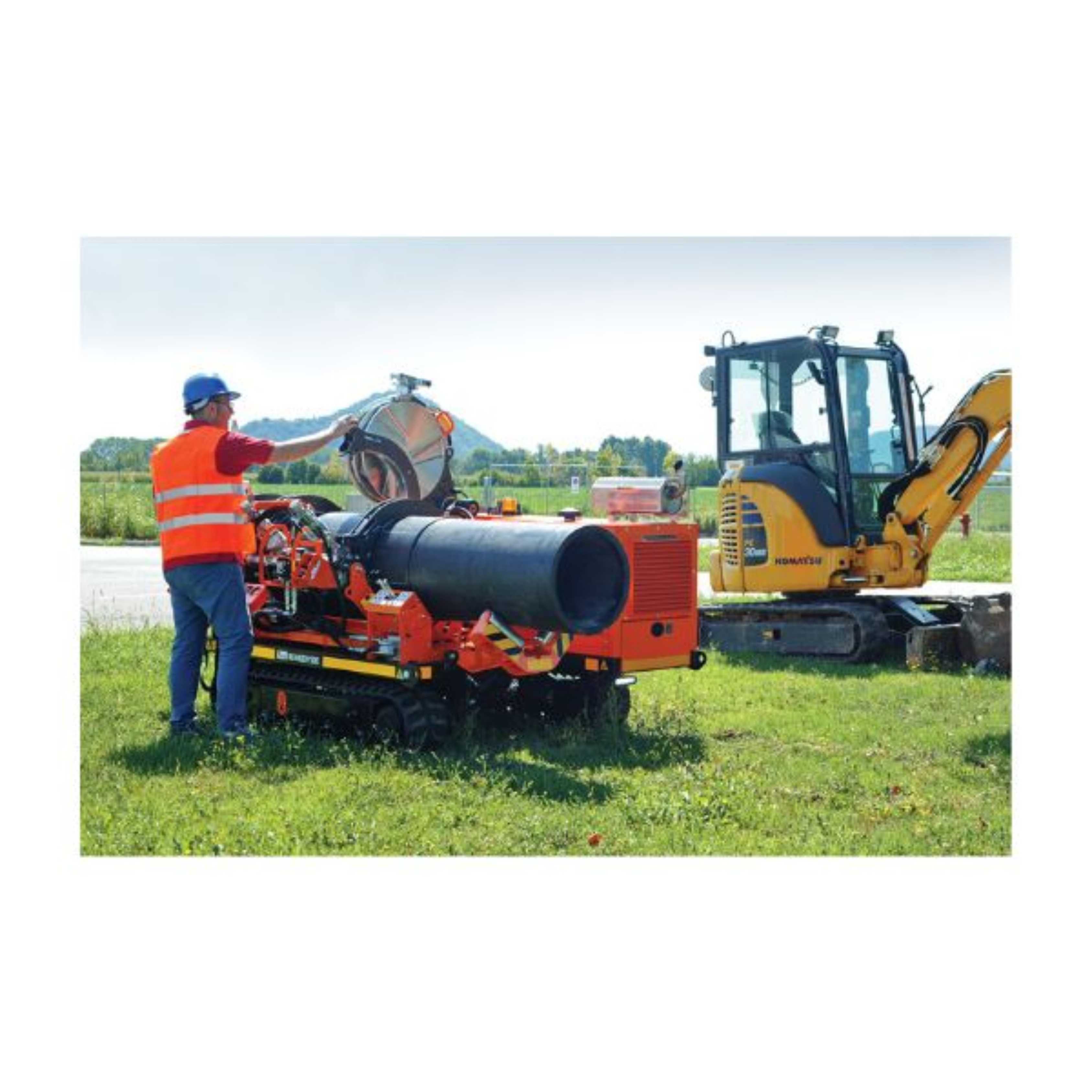

REMEDY 500 is an independent, high-productivity welding machine driven by tracks and powered by a Diesel on-board generator. Designed for butt welding HDPE and PP pipes from Ø 200 to 500 mm (from 6” to 20” IPS; from 6” to 18” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.

Versatile
– Working range
from Ø 200 to 500 mm
from Ø 6” to 20”IPS
from Ø 6” to 18” DIPS
– Materials: HDPE, PP
– Manual controls
– Tracked welding machine
– Drives over 30% slopes
– In-ditch/user friendly
– Controlled welding cycle
– In-ditch hoses/cables 23 ft range/length

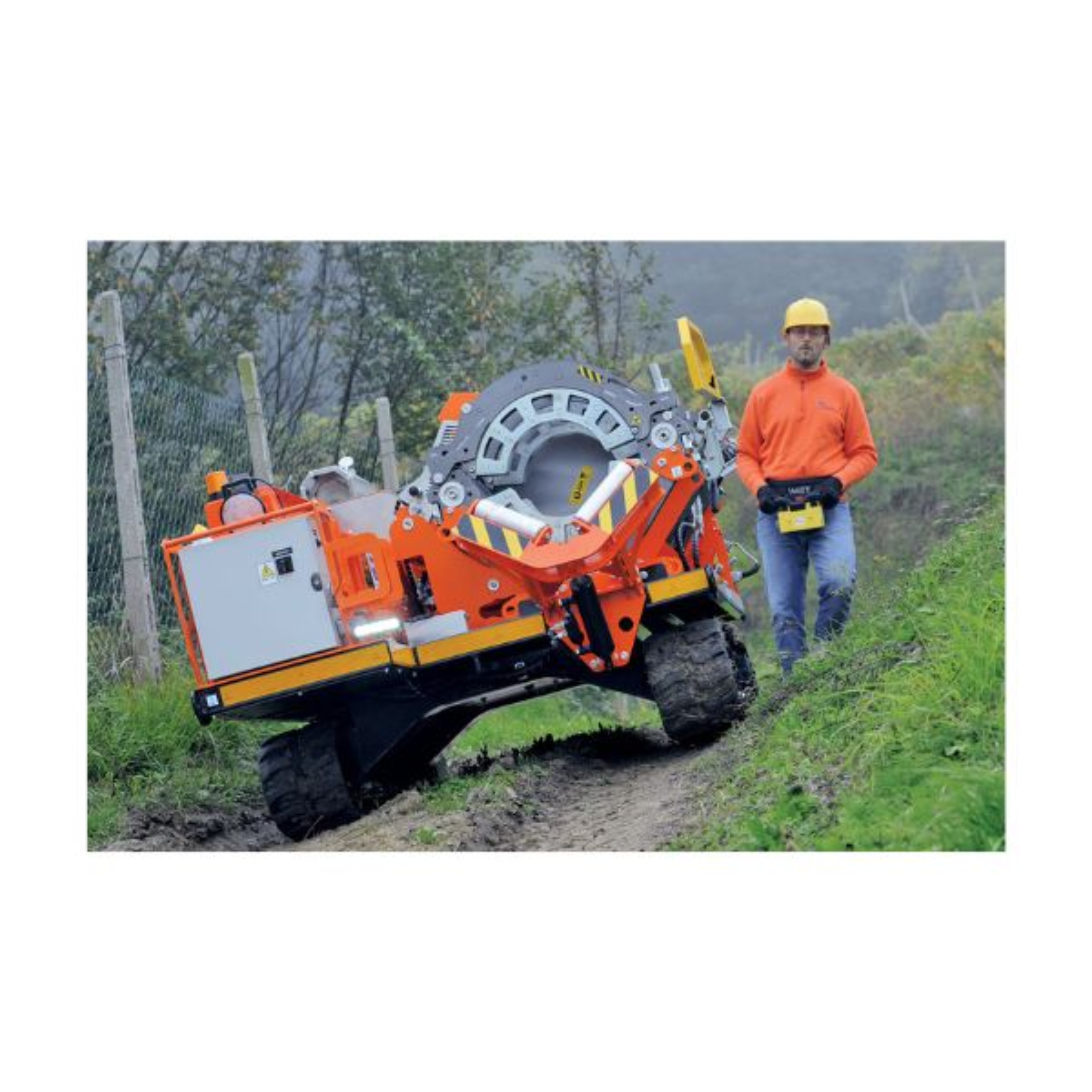

– Remote control track up to 100 m 328 ft

Accurate
– Designed to weld according to:
ISO 21307 High Pressure
ASTM F2620 standards

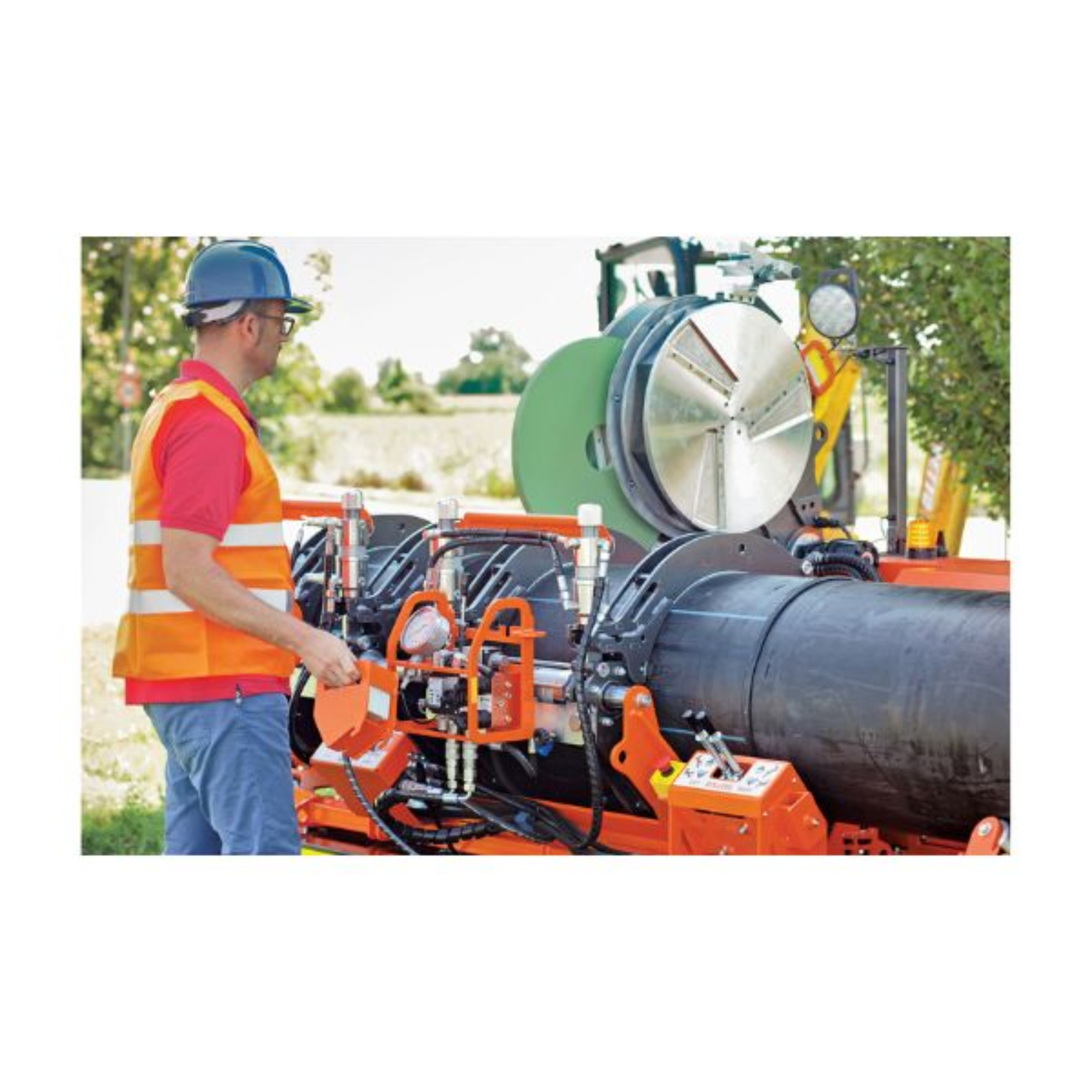

– Removable auxiliary panel to control
facer/heating plate
– Easily welds fittings/quick set-up time
– Heating plate with a high temperature
resistant protection casing
– Spotlights on welding area
– Insert with fast-locking system

Complete
– Self-propelled on track
– System to open/close clamps
– Heating plate with hydraulic movement
– Facer with hydraulic movement
– Hydraulic side rollers
– Facer with safety microswitch
– Self-contained generator on-board
– Heater/facer on-board

Patented by Ritmo
EP2860430

HYDRAULIC CLAMPING (on request)
Remedy 500 allows the locking of the clamps in a hydraulic way. The kit is designed to work with the removal of the 4th clamp
for welding fittings or stub-end/flanges.
