Sheet welder

Polyfusion 2-100

HDPE/PP sheet welder 3– 100mm, 2 m width, hydraulic dual-pressure

Other Variants

2-25 2-50 3 4 4-30 3-30 3-50 4-50

Applications

Plastic Fabrication,

Enquire Now Download Brochure

Description

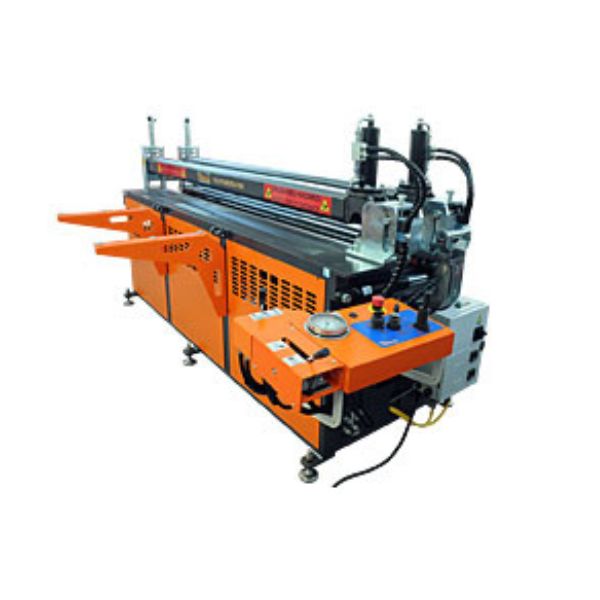

POLYFUSION 2-100 is a hydraulic welder for HDPE and PP sheets up to two meters wide and 3 mm to 100 mm thickness. The machine can also weld twin-wall sheets.

The welding cycle is handled by a control panel which commands the hydraulic gearcase; “Dual Pressure” welding is also feasible.

The manual heating plate, located under the machine body, has a height adjustment handwheel. The temperature is controlled by a built-in high-precision electronic thermoregulator,

The sheets are fixed to the machine body by hydraulic arm; the locking arm has an articulated joint that allws its opening and the easy extraction of the welded sheets.

Technical features

Max. working width	2 m - 6.56 ft
Min. weldable thickness	100 mm - 4”
Types of welding	straight; twin wall
Sheet locking clamps	hydraulic
Locking 90° sheets	mechanical
Heating plate lift	mechanical manual
Welding System	manual hydraulic
Power supply	400 V Three Phase 50/60 Hz
Total absorbed power	10500 W
Dimensions	3440 x 2000 x 1450 mm 135.4” x 78.7” x 57”
Weight	1200 Kg (2645 lb)
