Durel

Butt Fusion Welding Machines

Basic 200 Easy Life

User-friendly butt welder (Ø63–200 mm) with auto control and preset customization.

Other Variants

Basic 160 Basic 250 Basic 315 Basic 355 Delta 500 Delta 630 Delta 800 Delta 1000

Applications

Pipe welding,

Enquire Now Download Brochure

Description

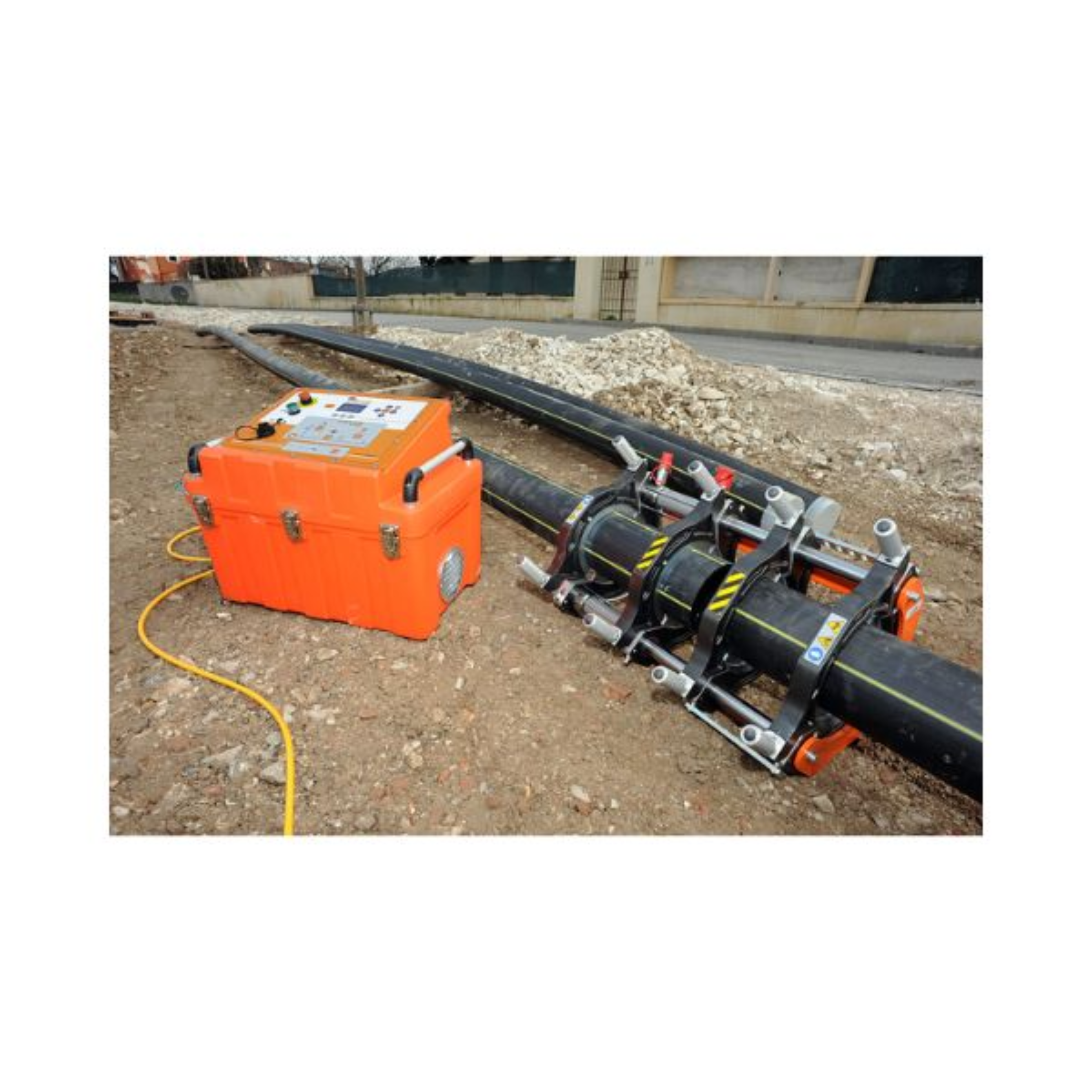

BASIC 200 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way.
The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port. Possibility to pre-set 50 customized. The EASY LIFE system data logging now shows the time!

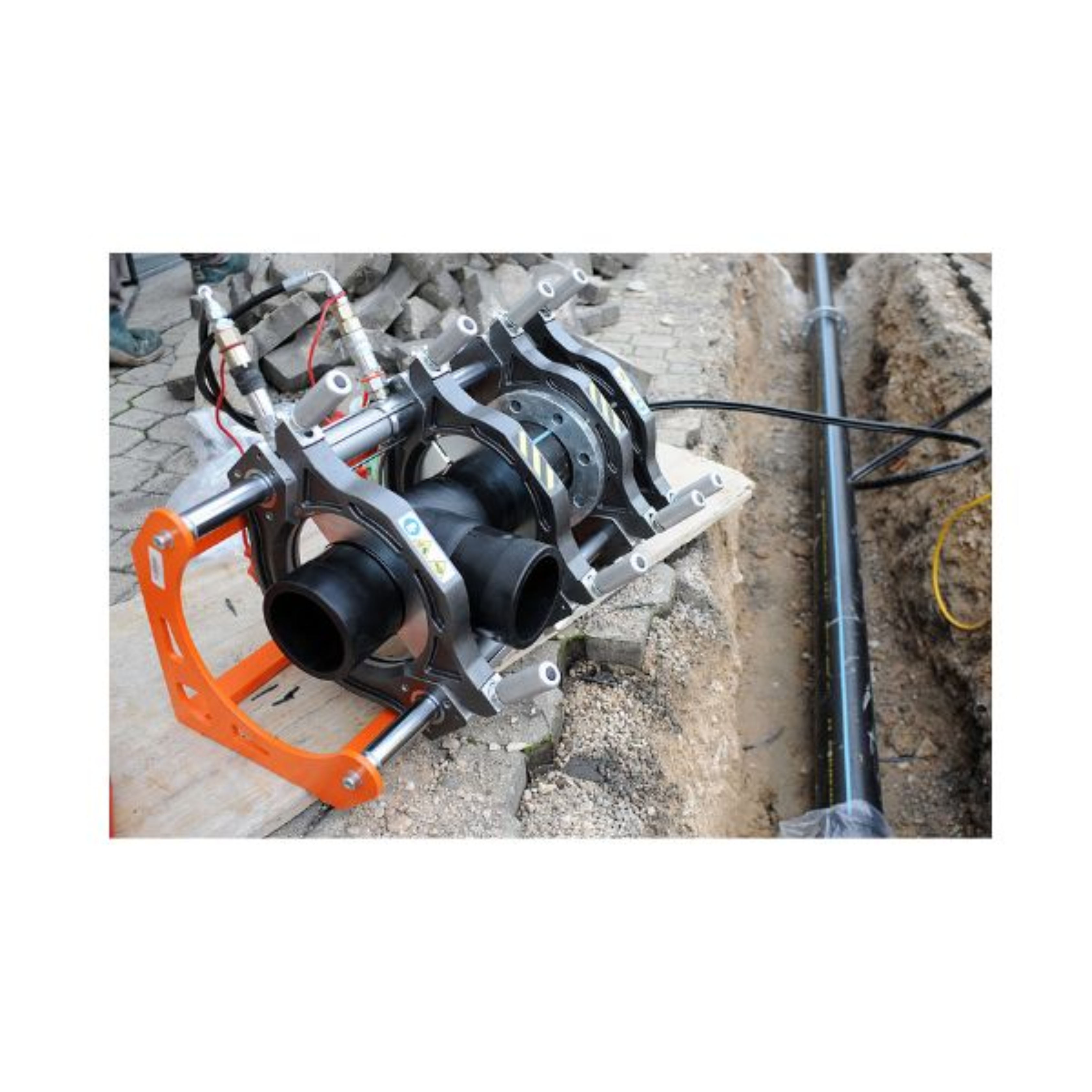

BASIC 200 EASY LIFE is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate
– An extractable milling cutter, with safety micro-switch

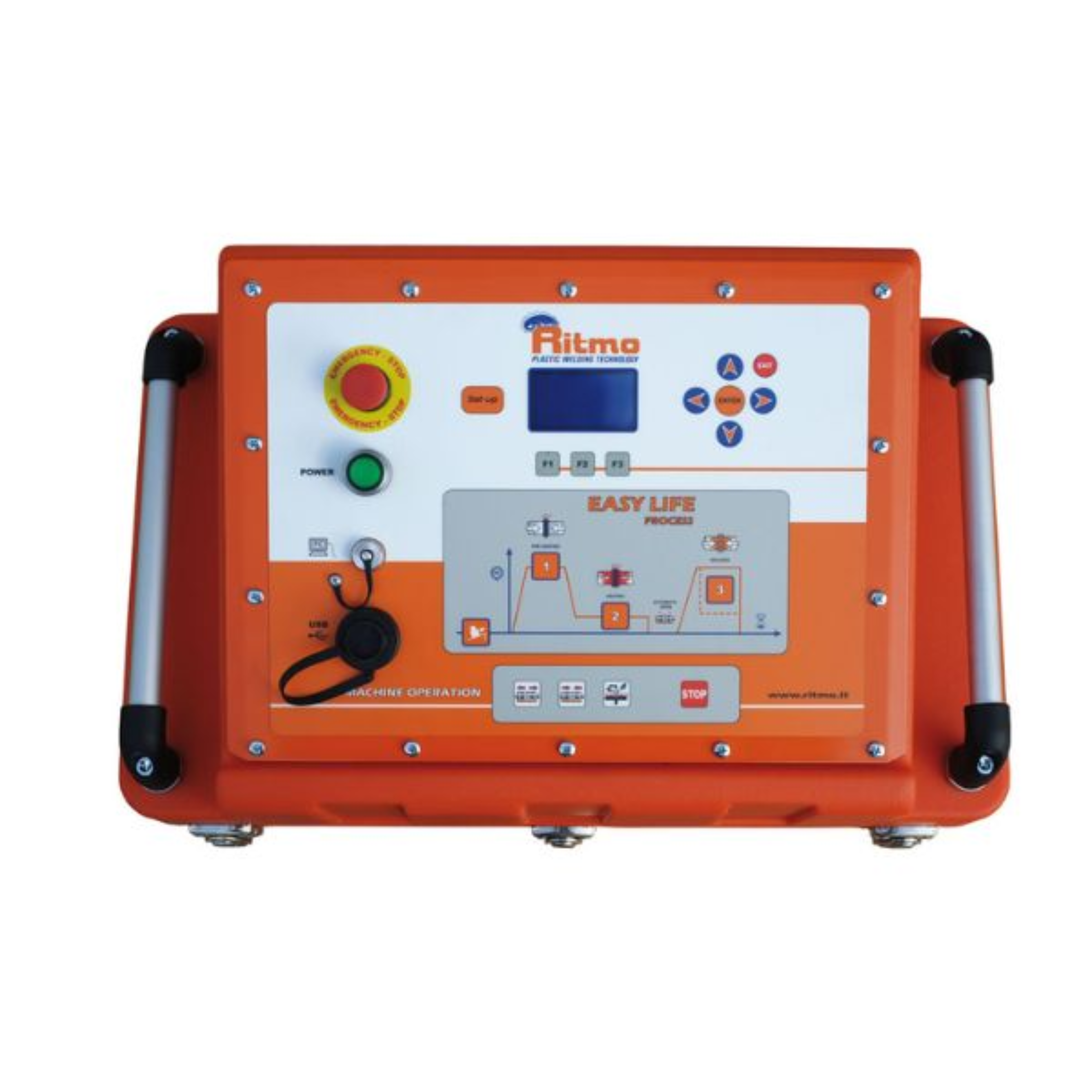

– An electrohydraulic gearcase EASY LIFE
– A hydraulic hoses with non – drip quick couplings
– Adapters from Ø 63 to 180 mm

ON REQUEST (ACCESSORIES)
– Tool for flange necks – Trolley – Rollers

Technical features

Materials	HDPE – PP – PB – PVDF
Working range	Ø 63 ÷ 200 mm
Power supply	110V; 230V – 50/60 Hz
Gearcase absorbed power	1100 W
Total absorbed power	3250 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	39 Kg
Weight gearcase	37 Kg
Dimension machine	685x460x420 mm
Dimension gearcase	585x384x463 mm
