Durel

Butt Fusion Welding Machines

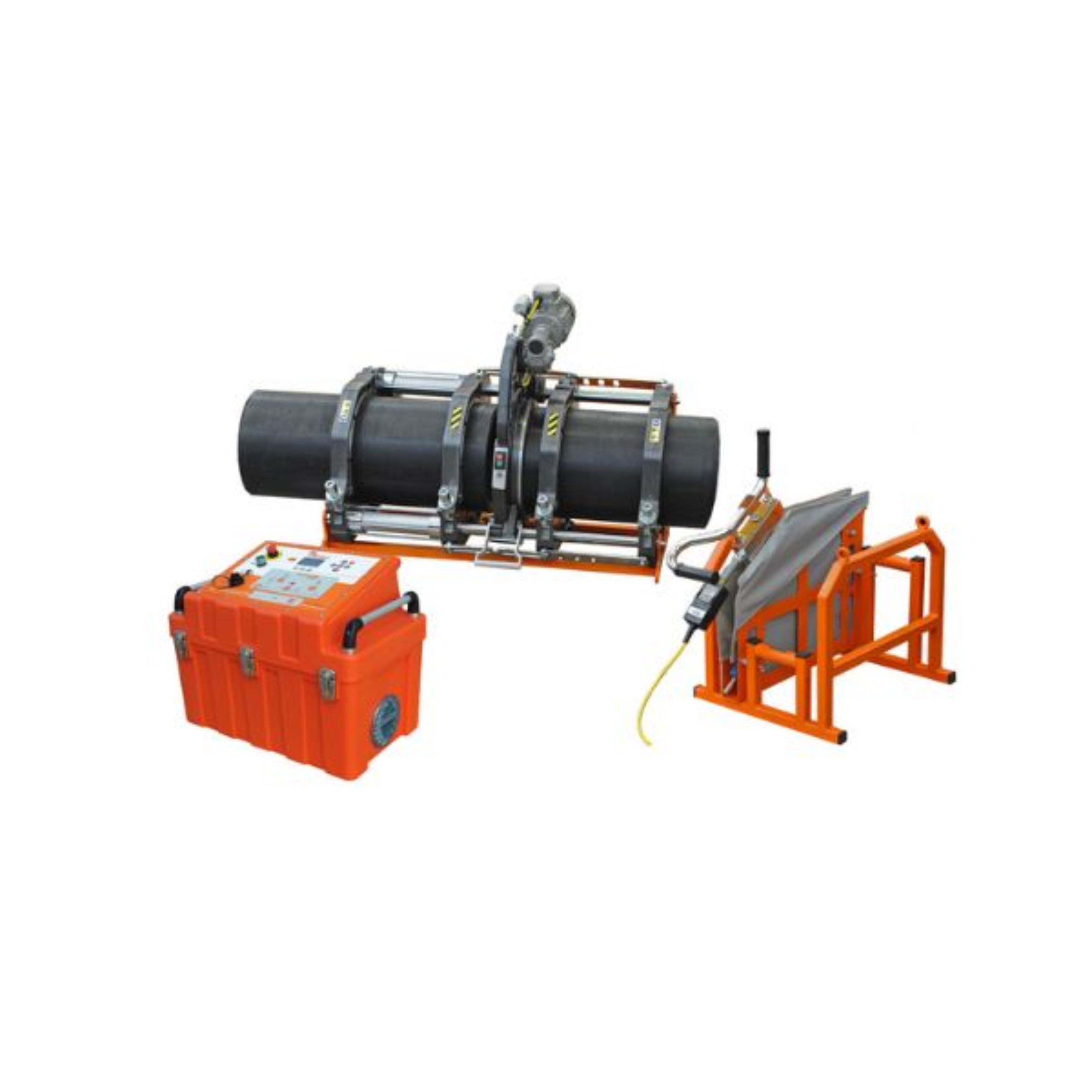

Basic 355 Easy Life

Easy Life semi-auto welder (Ø125–355 mm) with 50 presets and PDF reporting.

Other Variants

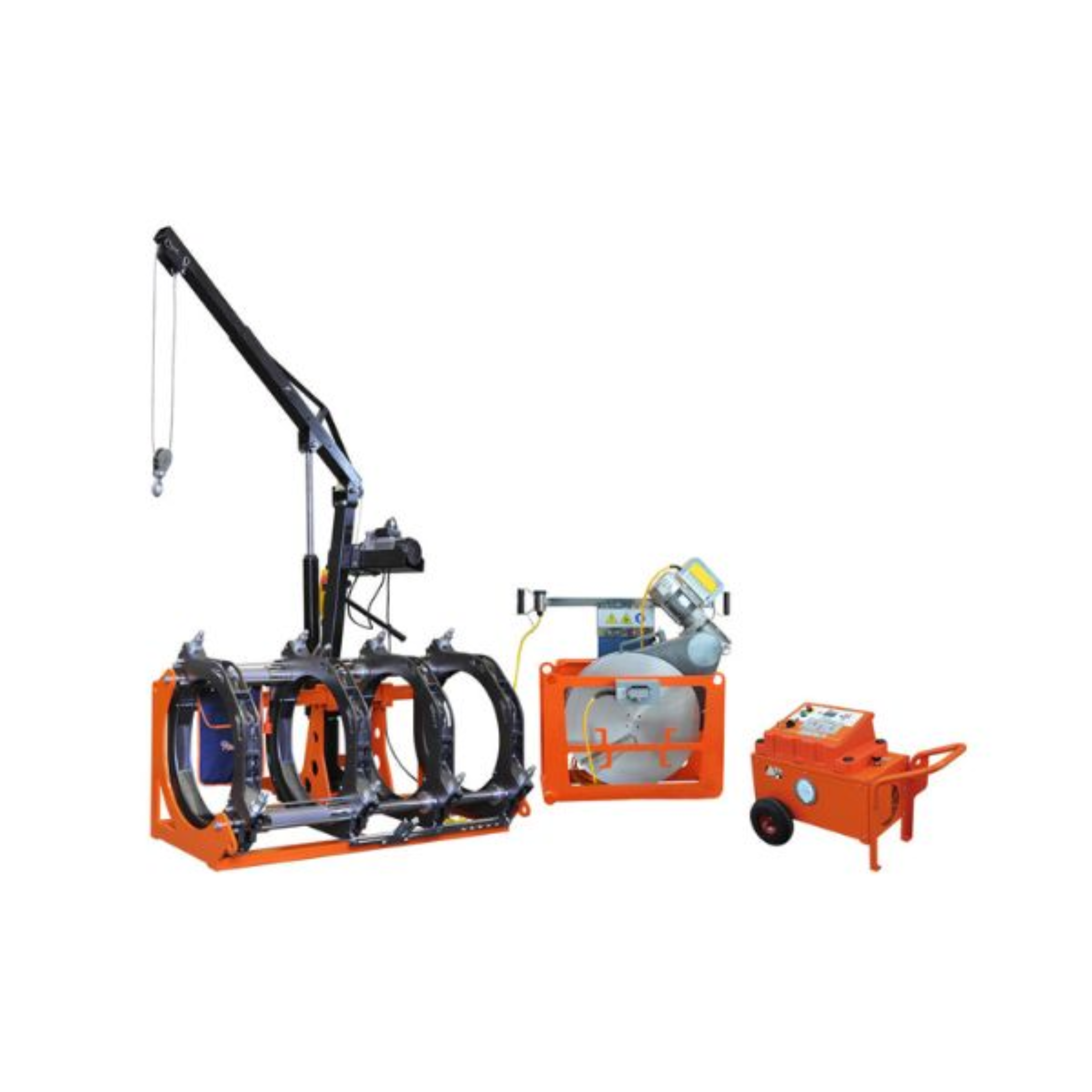

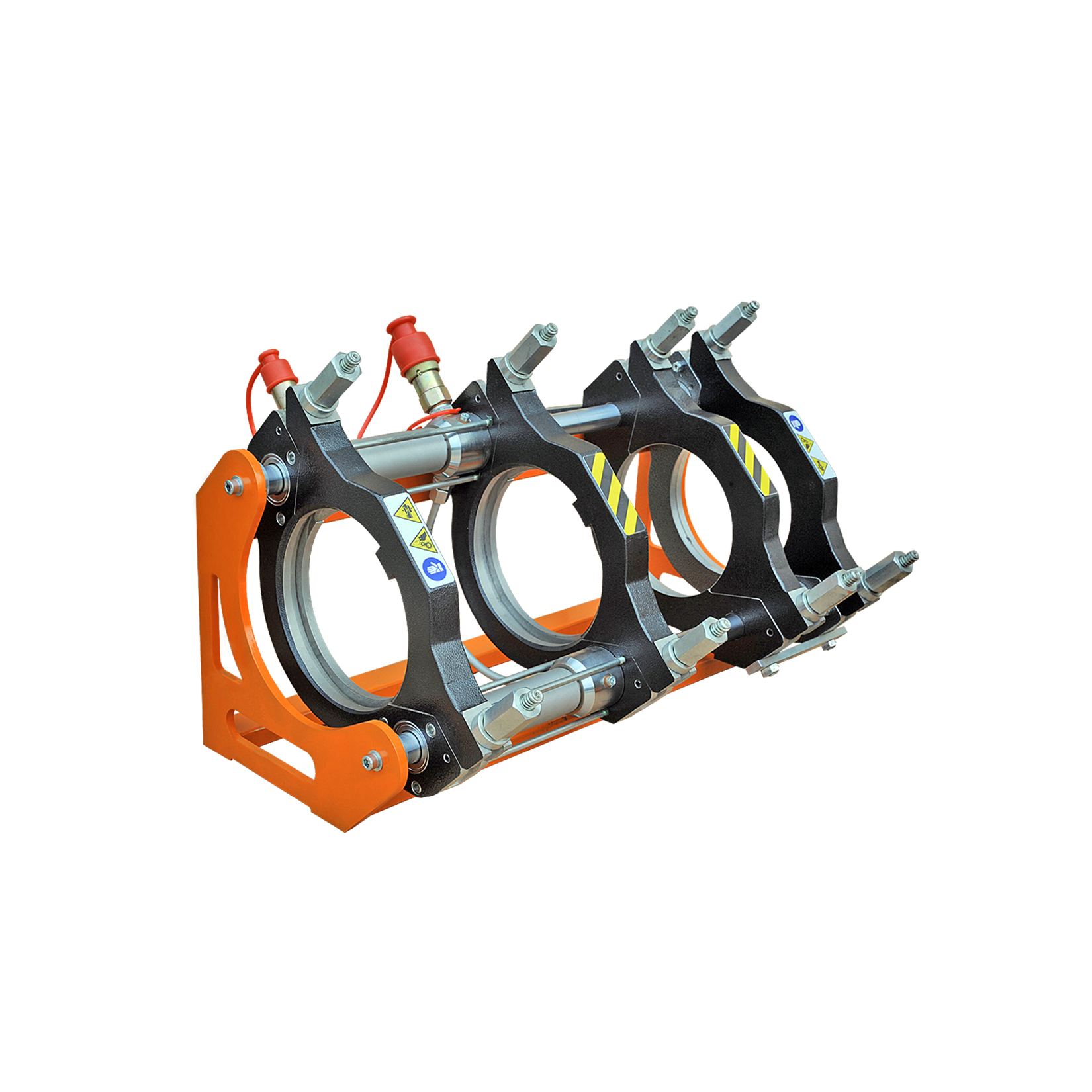

Basic 160 Basic 200 Basic 250 Basic 315 Delta 500 Delta 630 Delta 800 Delta 1000

Applications

Pipe welding,

Enquire Now Download Brochure

Description

BASIC 355 EASY LIFE, thanks to a special gearcase, is able to manage the welding process in a semi-automatic way.

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port.
Possibility to pre-set 50 customized.
The EASY LIFE system data logging now shows the time!

BASIC 355 EASY LIFE is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate
– An extractable milling cutter, with safety micro-switch

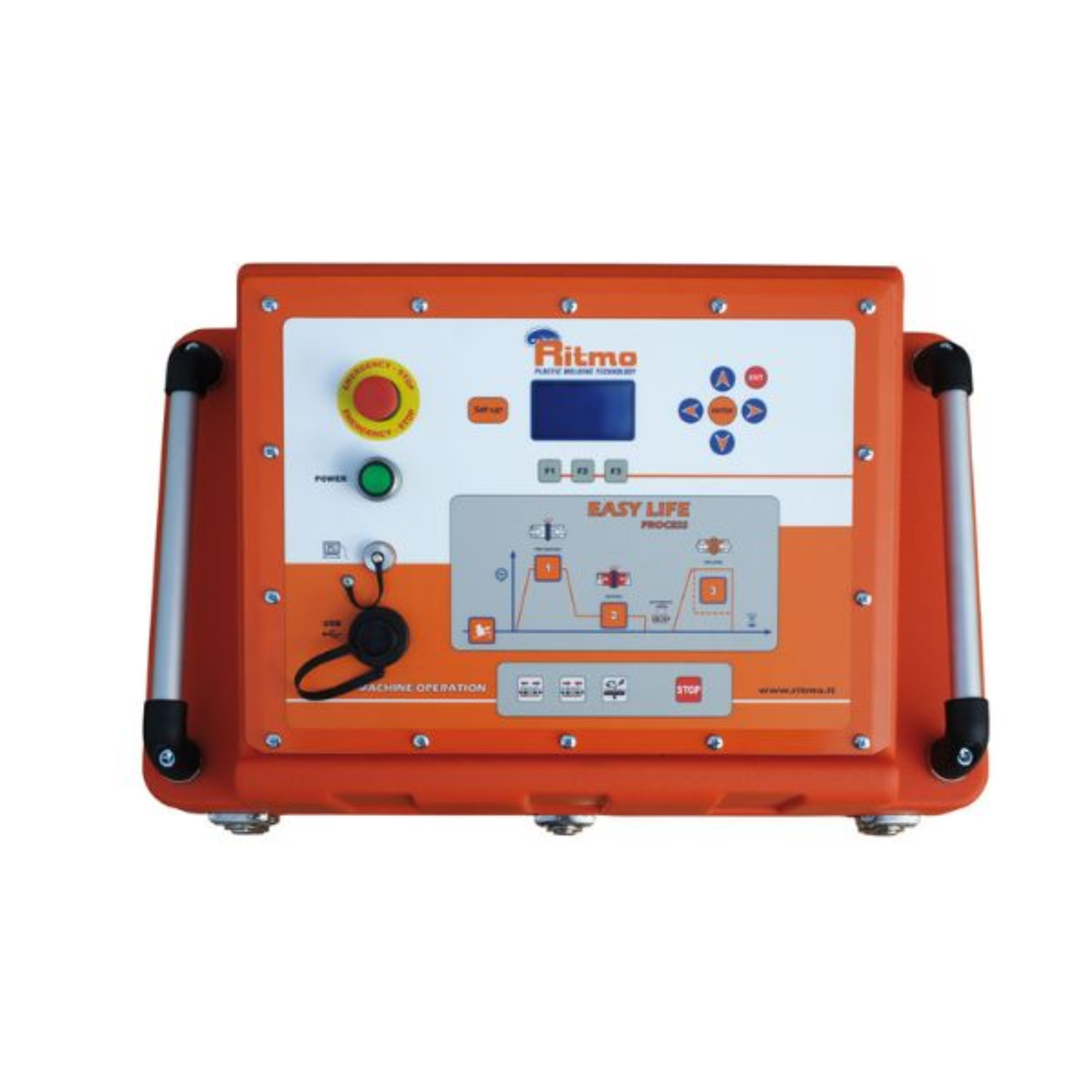

– An electrohydraulic gearcase EASY LIFE
– A hydraulic hoses with non – drip quick couplings
– Adapters SMARTLocK from Ø 125 to 315 mm, Master adapters Ø 250 mm

Patent by Ritmo
EP1743741 B1 – US 7334785

ON REQUEST (ACCESSORIES)
– Tool for flange necks;
– Trolley;
– Rollers;

Technical features

Materials	HDPE – PP – PB – PVDF
Working range	Ø 125 ÷ 355 mm
Power supply	230 VAC 50/60 Hz
Gearcase absorbed power	1100 W
Total absorbed power	5800 W
Memory	4000 reports
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machine	100 Kg
Weight gearcase	37 Kg
Dimension machine	1077x510x715 mm
Dimension gearcase	585x384x463 mm
