Description

Thanks to a special gearcase the DELTA 800 EASY LIFE is able to manage the welding process in a semi-automatic way from OD 500 to 800 mm.

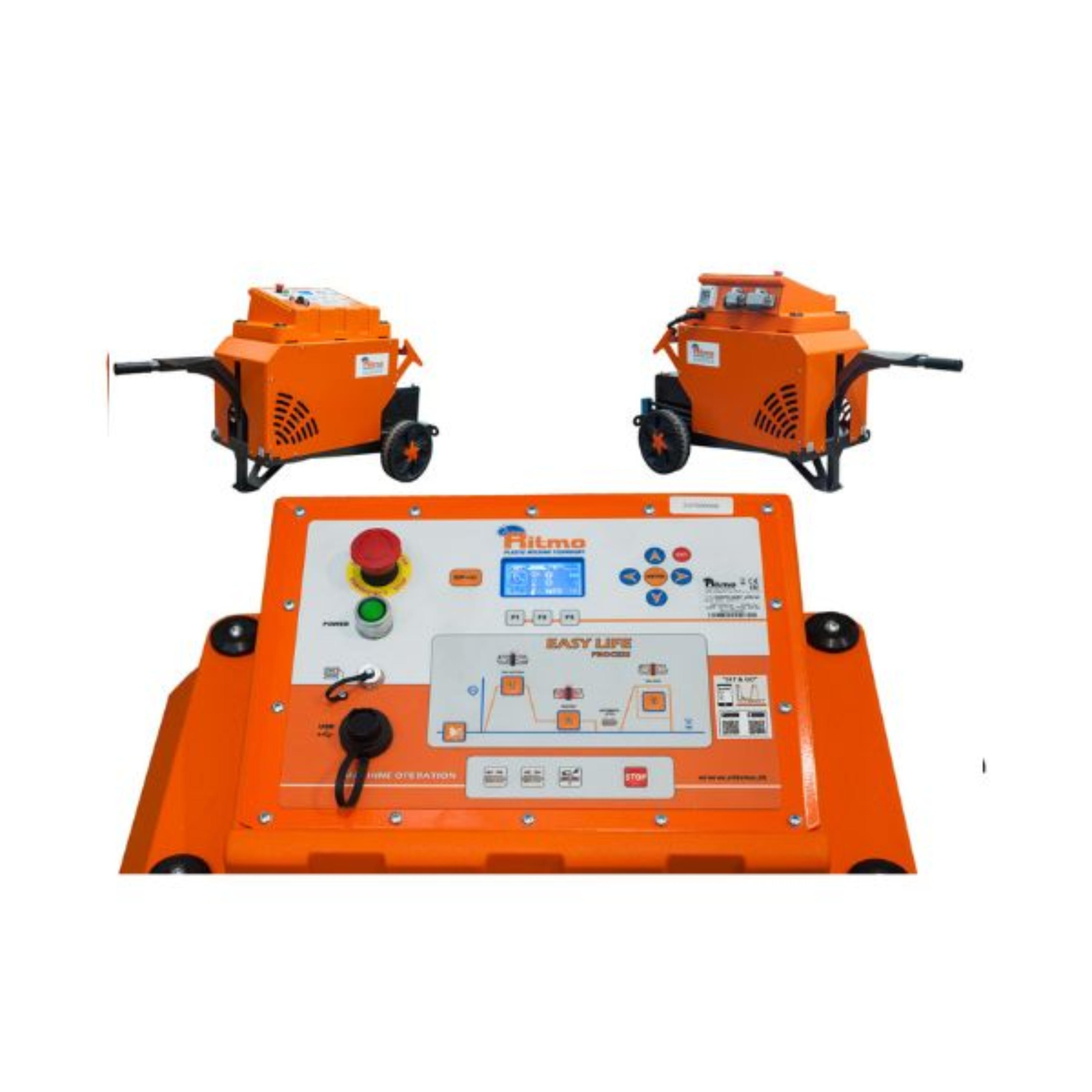

The electronic system guarantees the continuous repeat of the welding cycles and automatic control of the preset parameters, therefore the operator needs only to validate the welding phases. The user-friendly graphic display allows a quick setting of the desired parameters.

The EASY LIFE system can store up to 4000 welding cycles and sum them up into a PDF file. This report can be transferred to a PC/laptop through a USB port.
Possibility to pre-set 50 customized.
The EASY LIFE system data-logging now shows the time!

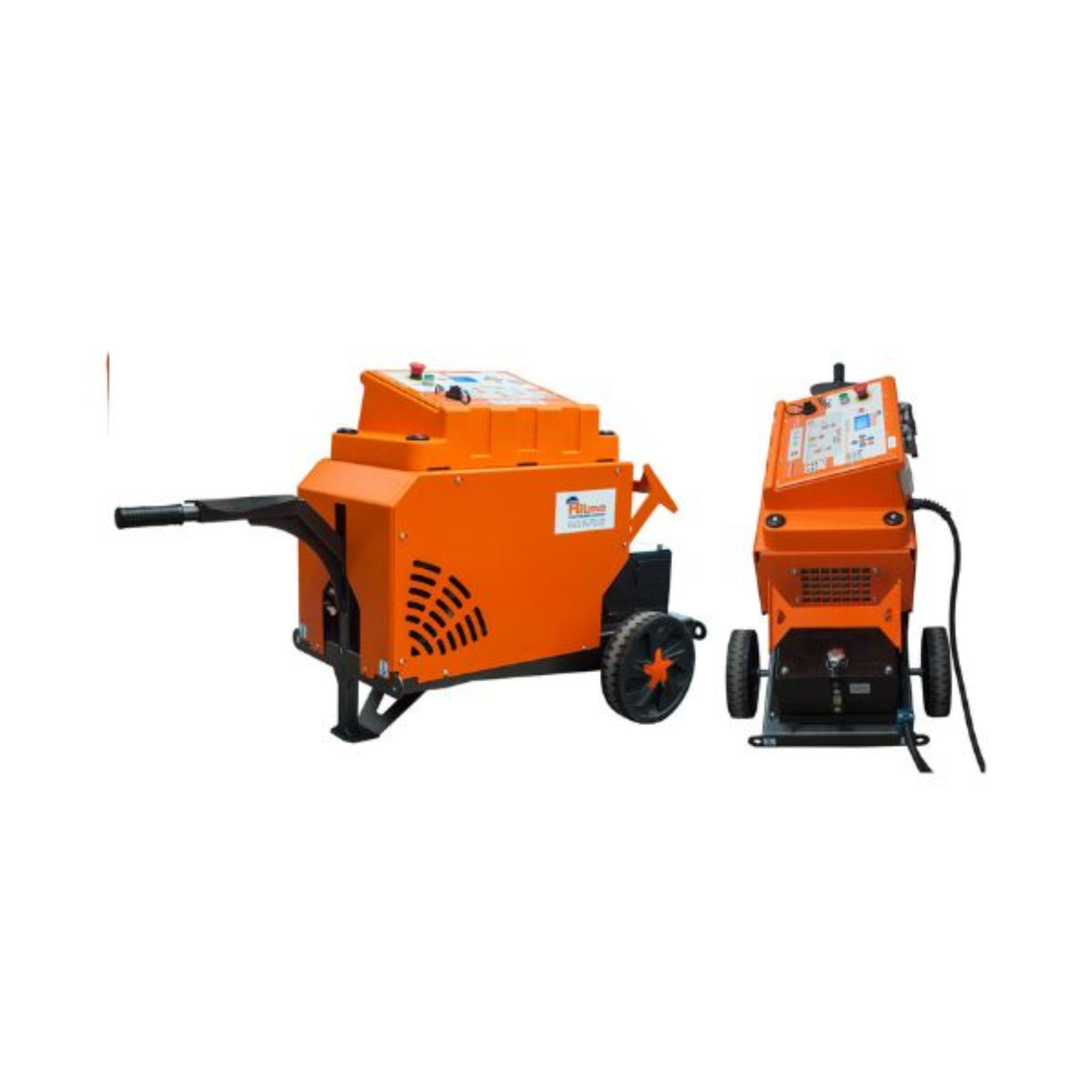

The DELTA 800 EASY LIFE version has a useful trolley, easily maneuverable with its handgrip.

– A machine body with a steel bearing frame
– Clamps in steel
– Insert in steel with quick locking/unlocking system. No tools required
– Self detaching device: helps removing the heating plate during welding procedure
– An extractable heating plate with separate thermometer for reading the working temperature
– An extractable electric milling cutter with a safety microswitch and overload cutout
– Milling cutter’s plastic control box is protected by a metal frame
– Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
– An electrohydraulic gearcase EASY LIFE
– A milling cutter/heating plate support

ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 500 to 710 mm
– Tool for flange necks
– Electrical crane
– Special transport wooden case (machine body with trolley)
– Wooden case for inserts
– Machine body trolley
– Rollers
