Description

Overview

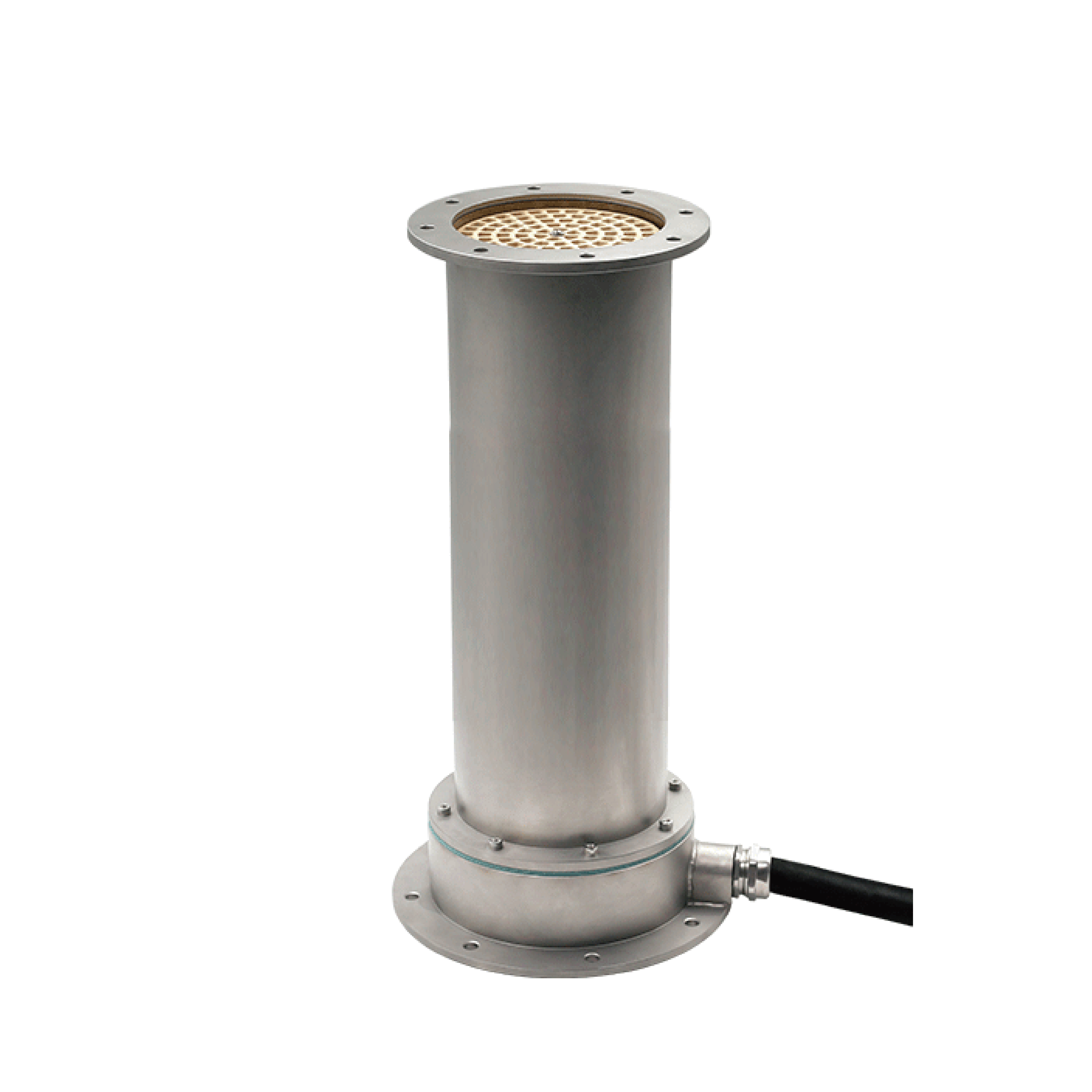

The DAH30000 Series represents Durel's flagship industrial heating solution, delivering an impressive 30KW to 60KW of thermal power—the highest capacity in the Durel range. Available in X-Series (600°C) and Y-Series (900°C) configurations, this series is engineered for the most demanding mega-scale industrial thermal processes requiring maximum heating capacity with re-circulated efficiency.

Key Features
Maximum Thermal Capacity - 30KW to 60KW for mega-scale industrial operations
Dual Temperature Ranges - X-Series (600°C) or Y-Series (900°C)
Re-Circulated Design - Maximum energy efficiency for large-scale operations
Three-Phase 400V - Industrial power standard
Enhanced Thermal Tolerance - Max inlet temperature 150°C
High Ambient Rating - Operates in up to 100°C ambient conditions
Protection Class I - Industrial safety certification
Variable Length Options - Multiple configurations for different power levels
Heavy-Duty Construction - Largest diameter bodies in Durel range
Industrial Mounting - Robust installation for mega-scale applications

Common Specifications:
Max Inlet Temperature: 150°C
Max Ambient Temperature: 100°C
Max Air Inlet Pressure: 100KPa
Frequency: 50/60Hz
Safety Rating: Protection Class I

Installation Dimensions
Variable Lengths:
DAH30000X-A/B: 320mm
DAH30000X-C/D: 420mm
DAH30000X-E/F: 520mm
DAH30000Y-A/B/C: 465mm
Body Diameters: Φ190mm, Φ220mm, Φ245mm (largest in range)
Air Passages: Φ148mm, Φ150mm for maximum airflow
Mounting: Heavy-duty industrial configuration

Applications
Mega-scale industrial manufacturing facilities
Large automotive assembly plant ovens
Industrial food processing mega-facilities
Pharmaceutical bulk production facilities
Heavy industrial continuous process lines
Large aerospace component manufacturing
Industrial glass production facilities
High-capacity metal treatment operations
Mega-scale textile production
Large-scale chemical processing
Industrial waste processing facilities
High-volume continuous curing systems

Model Selection Guide
DAH30000X Series - Maximum capacity standard high-temperature applications (600°C)
Models A/B: 30-40KW in 320mm length
Models C/D: 50-60KW in 420mm length
DAH30000Y Series - Extreme temperature mega-scale processes (900°C)
15-20KW in 465mm extended length configuration

Power Infrastructure Requirements
Due to extreme power requirements (up to 87A at 3x400V), proper electrical infrastructure, cooling, and safety systems are essential. Consult with Durel technical team for application-specific installation guidance and system design support.


Durel Heater Range - Complete Overview
Product Selection Guide
Compact Applications (Under 5KW)
DAH15 - Ultra-compact, 550W-770W
DAH30/30D/30S - Professional compact, 2KW-3.3KW
DAH2000 - Modular professional, 1KW-3.3KW
DAH4000 - High-performance, 2KW-5.5KW
Medium Industrial (5-10KW)
DAH50 - Heavy-duty, 4.5KW-10KW
DAH6000L - Extended professional, 4.5KW-10KW
DAH6000S - Compact high-power, 4KW-9KW
High-Temperature Specialized
DAH5000 - Up to 900°C, 6.5KW-11KW
DAH8000 - Re-circulated, up to 900°C, 5KW-11KW
Heavy Industrial Re-Circulated
DAH10000 - 5.5KW-18KW
DAH20000 - 15KW-24KW
DAH25000 - 25KW-29KW
DAH30000 - 30KW-60KW (maximum capacity)

Control Mode Options
Fixed Power - Consistent output, simple operation
Potentiometer - Manual adjustment, process flexibility
Remote Interface - 4-20mA/0-10V automation integration

Temperature Capabilities
Standard Models - Up to 650°C
X-Series (High-Temperature) - Up to 600°C with enhanced features
Y-Series (Extreme Temperature) - Up to 900°C

Global Voltage Support
120V (North America, select markets)
230V (Global standard)
380-440V (European/Asian industrial)
480V (North American industrial)
Three-phase configurations for industrial efficiency

Warranty & Support
Standard Warranty: 1 Year on all models
Technical Support: Available for application-specific guidance
Global Presence: Expanding network across India with offices in Chennai, Mumbai, Delhi, Ahmedabad, and Bhopal
