Description

Overview

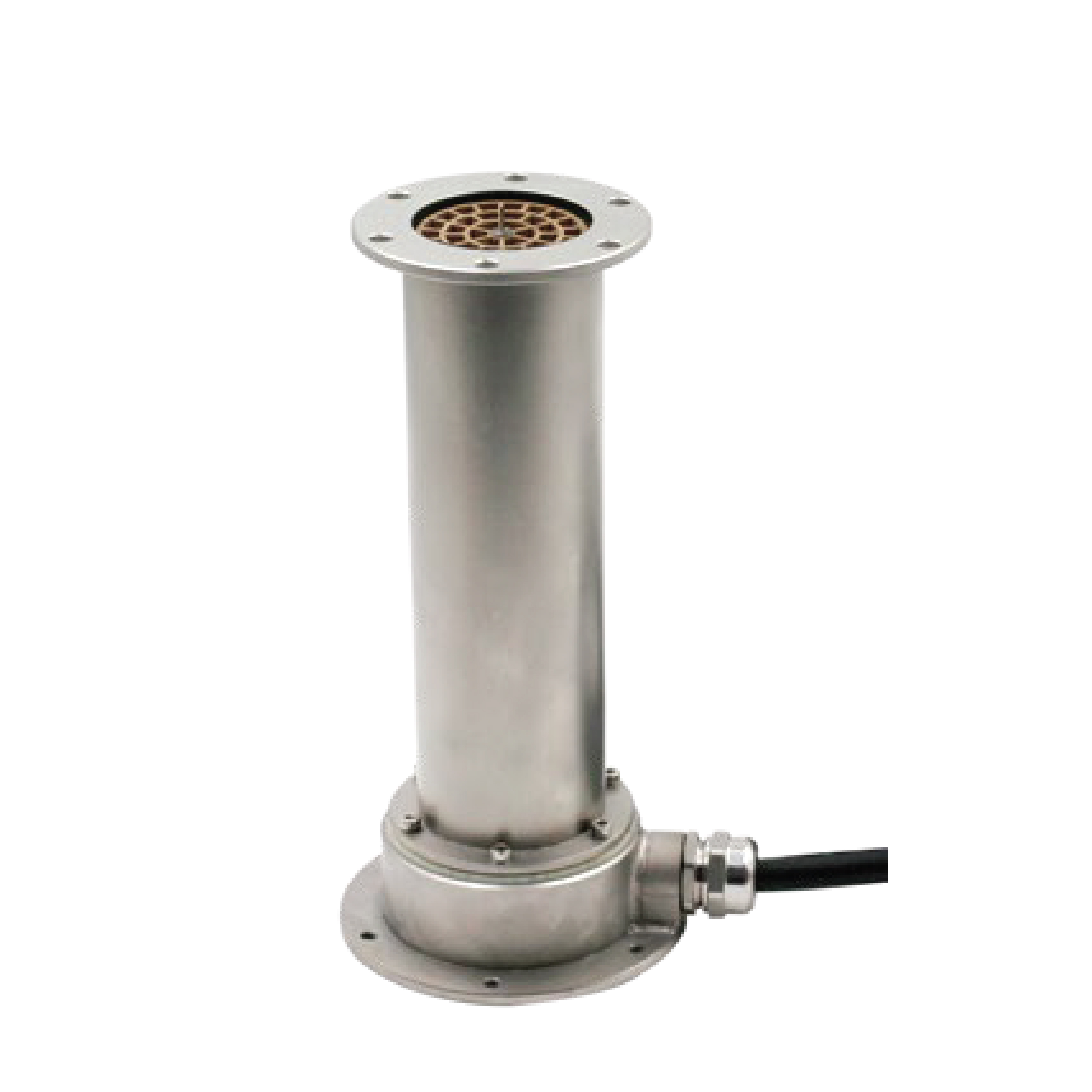

The DAH5000 Series introduces Durel's high-temperature capability, reaching up to 900°C outlet temperature—significantly exceeding standard models. Available in X (600°C) and Y (900°C) versions with power from 6.5KW to 11KW, this series is engineered for specialized applications requiring extreme thermal processing.

Key Features
Ultra-High Temperature - Y-Series reaches 900°C outlet temperature
Dual Temperature Ranges - X-Series (600°C) or Y-Series (900°C)Socket Fusion 32A models
High Power Output - 6.5KW to 11KW for demanding applications
Enhanced Thermal Tolerance - Max inlet temperature 150°C (vs 50°C standard)
Elevated Ambient Rating - Operates in up to 100°C ambient conditions
Protection Class I - Industrial safety certification
Three-Phase Power - 3x400V configuration for industrial efficiency
Robust Construction - Engineered for extreme temperature environments
Specialized Applications - Designed for high-temperature industrial processes

Common Specifications:
Max Inlet Temperature: 150°C
Max Ambient Temperature: 100°C
Max Air Inlet Pressure: 100KPa
Frequency: 50/60Hz
Safety Rating: Protection Class I

Installation Dimensions
Specialized mounting configuration with air inlet and outlet positioned for high-temperature applications. Detailed dimensional drawings ensure proper clearances for extreme temperature operation.

Applications
High-temperature ceramic processing
Glass working and forming
Metal heat treatment
Specialized polymer processing
Laboratory high-temperature testing
Aerospace component manufacturing
Advanced materials research
Industrial sintering processes

Model Selection Guide
DAH5000X Series - Standard high-temperature applications up to 600°C
DAH5000Y Series - Extreme temperature processes requiring up to 900°C

Safety Considerations
Due to extreme temperatures, proper installation with adequate clearances, thermal insulation, and safety interlocks is essential. Consult Durel technical team for application-specific guidance.
