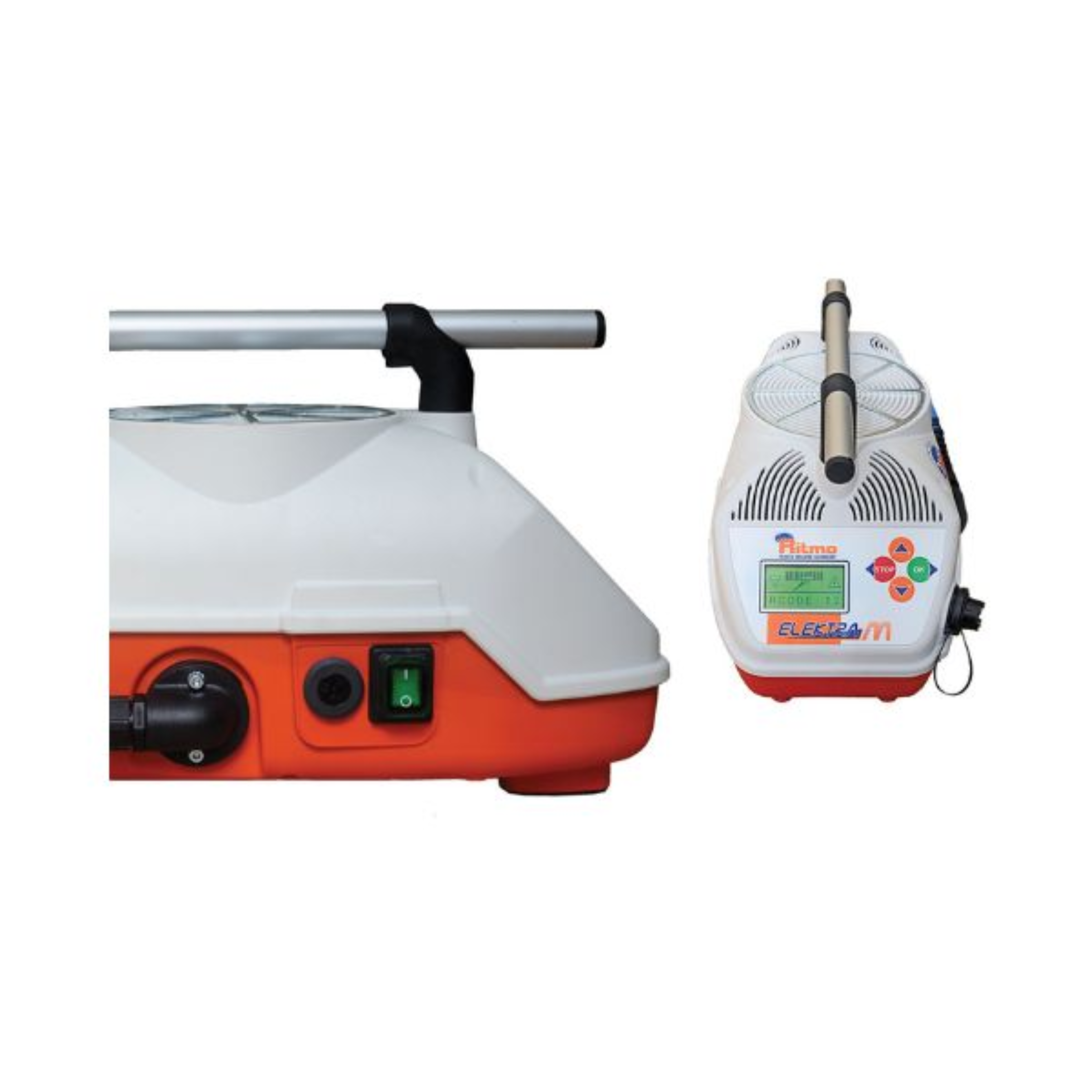

Elektra M 230V With GPS

ElectroFusion Elektra M 230V with GPS, welds 20-315mm (4"-12" IPS), data logging.

Other Variants

Elektra S Elektra XL Light 500 Elektra 315

Applications

Pipe welding,

Enquire Now Download Brochure

Description

Your high-performance, lightweight welding control unit for electrofusion for small and medium diameters.

Elektra M is the compact, versatile welder for electrofusion fittings for pressure pipelines in PE, PP, PP-R. With Elektra M, you can weld fittings from 8 ÷ 48 V and up to Ø 315* mm (230 V version) or 500* mm (110 V version).

Collaboration with multiple partners worldwide has given Ritmo extensive technical knowledge, not tied to a single manufacturer of electrofusion fittings.

* The working range may vary depending on the brand of fittings. Check with the fitting manufacturer for the required welding power and time.

Technical features

Materials	HDPE/PP/PP-R
Working range	Ø 20 ÷ 500 mm – 1/2″ IPS ÷ 20″ IPS (110 V) Ø 20 ÷ 315 mm – 1/2″ IPS ÷ 12″ IPS (230 V)
Power supply	110 V ±15% single phase 50/60 Hz 230 V ±15% single phase 50/60 Hza
Total abdorbed power (60% Duty Cycle output)	2200 W (110 V) 2300 W (230 V)
Max output current	80 A – 110 V 100 A – 230 V
Working temperature range	-20° +50° C
Memory capacity	4000 reports
Protection degree	IP 54
Dimensions	246 x 390 x 240 mm
Dimensions carryng case	290 x 445 x 295 mm
Weight machine body + welding and power supply cable + laser scanner	9,2 Kg
