Description

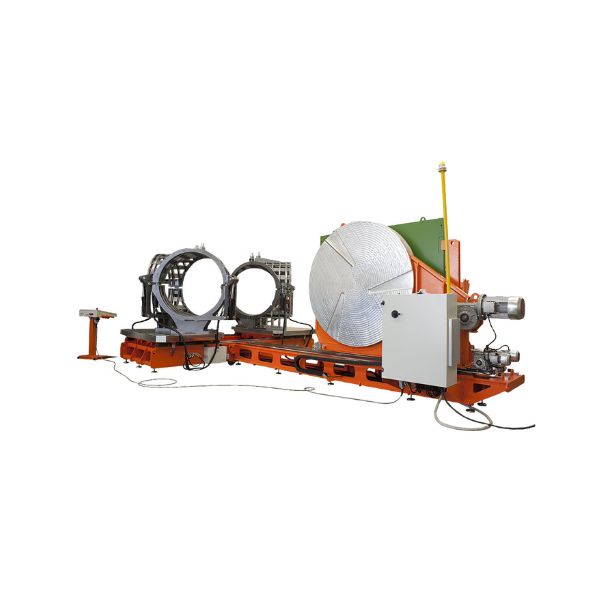

ALFA 1600 is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.

Elbows Ø 710 ÷ 1600 mm
Tees – Crosses – Wyes Ø 710 ÷ 1200 mm

Composed of:
– A machine body with two hydraulically controlled carriages
– A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. Possibility to pre-set 20 customized. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the PDF files via USB slot
– A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides
– A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine

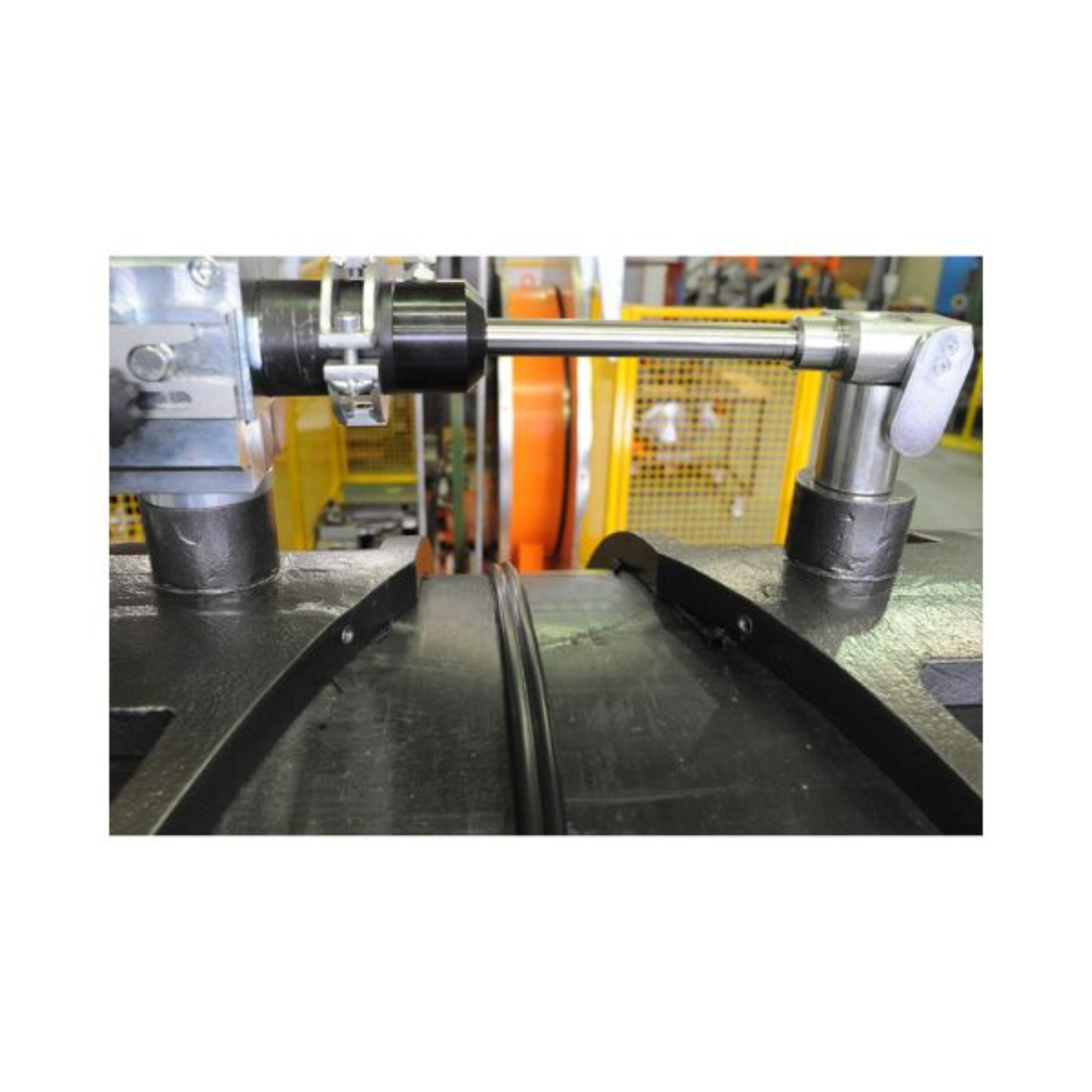

– An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures.

STANDARD COMPOSITION
– Machine body with control panel CNC
– Elbows jaws Ø 1600 complete with inserts from Ø 710 to Ø 1400 mm
– Heating plate
– Milling cutter
– Upper cylinder and service tools

ON REQUEST (ACCESSORIES)
– Wyes – Tees – crosses jaws Ø 1200 mm inserts from Ø 710 to Ø 1000 mm

Technical features

Working range elbows 0° ÷ 60°	Ø 710 ÷ 1600 mm
Working range wyes 45° ÷ 60°	Ø 710 ÷ 1200 mm
Working range Tees	Ø 710 ÷ 1200 mm
Working range crosses	Ø 710 ÷ 1200 mm
Pressure range	0 ÷ 250 bar
Welding system	CNC
Connection	USB Port Type A
Tablet	15,6”
Wi-fi	Yes
Welding report	PDF - CSV
Memory	more than 16 gigabytes
Power supply	400 V Three ph
Working temperature	180° ÷ 280° C (356° ÷ 536° F)
Outside temperature range	-5° ÷ 40° C (23° ÷ 104° F)
Dimensions	736 x 448 x 284 cm 290” x 177” x 112”
Weight	8800 Kg (19400 lb)
