Durel

Description

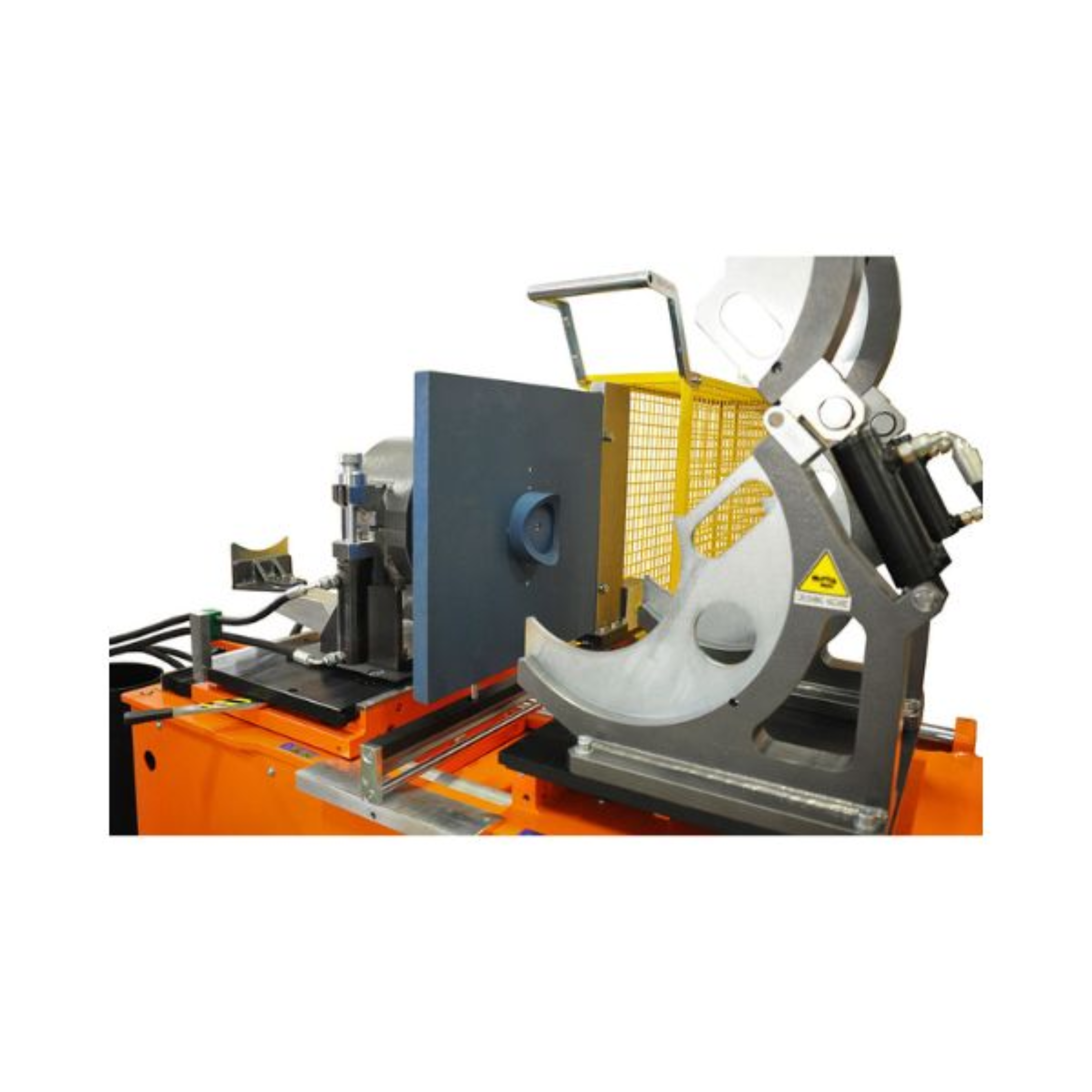

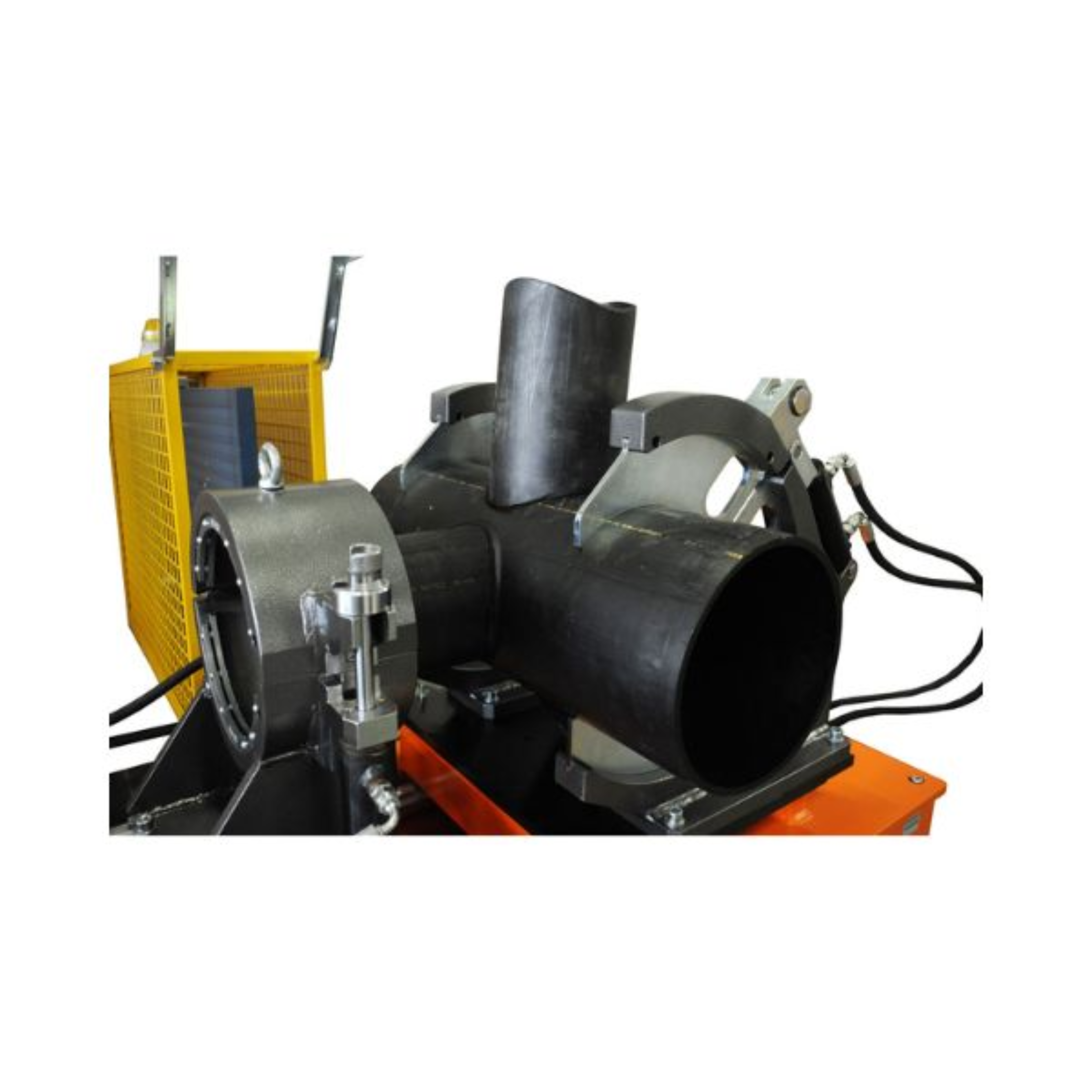

OMEGA 400 – 315 and OMEGA 630 – 315 are a saddle fusion machines for workshop use.
Perfect to manufacture special parts, such as reduced tees and crosses for water pipeline used in drainage/sewerage applications.

Available a model OMEGA IPS (24″ IPS – 12″ IPS)

STANDARD COMPOSITION:
– Machine body with manual carriage for socket centring
– Hydraulic jaws for locking pipe & branches
– Side support for branches

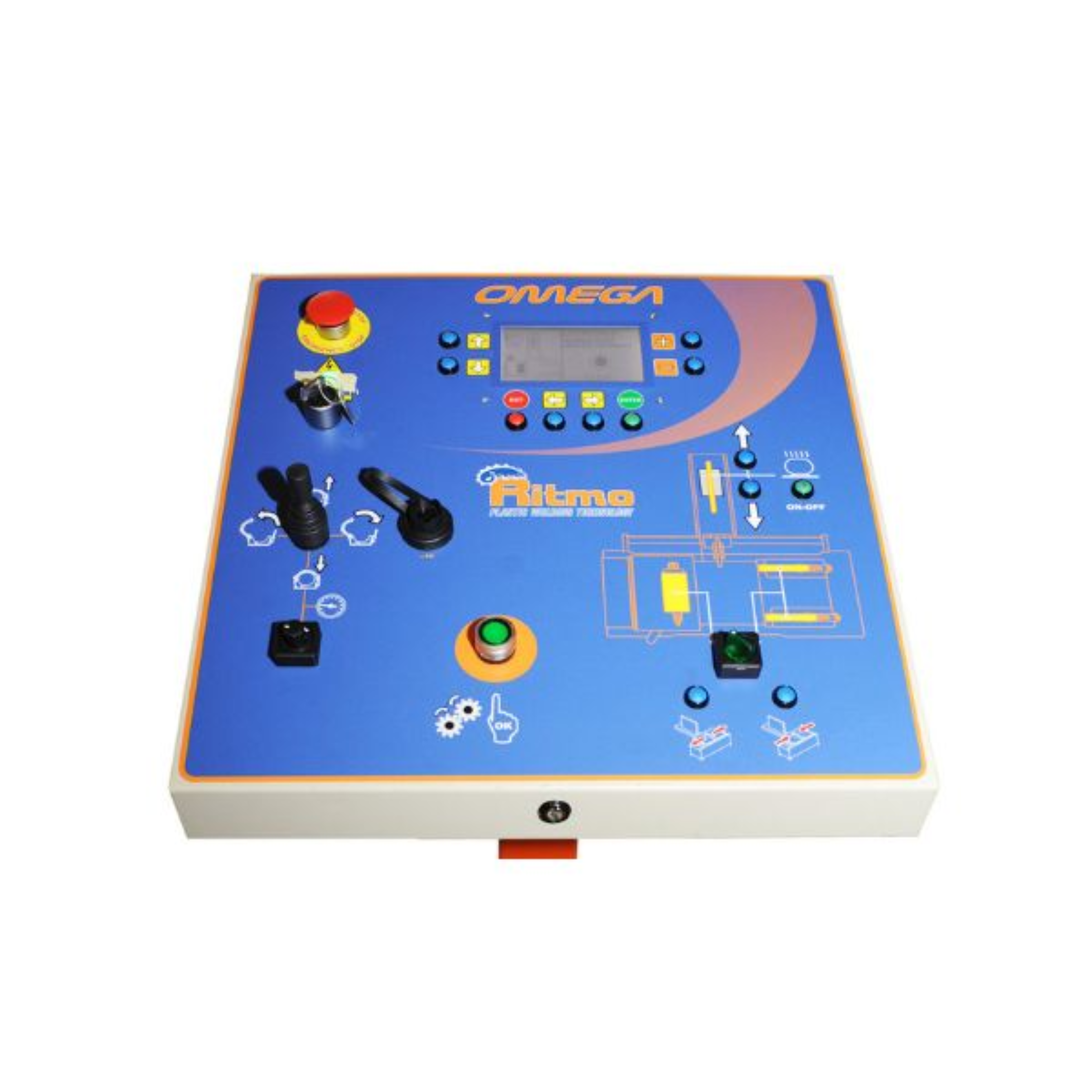

– Quick release inserts – EASY LIFE control panel: allows a simple-easy-repeatable welding cycle, reducing the necessity of operator’s intervention
– A built-in memory records the welding cycles; the USB port and the software allow the transfer of data to a PC
– Hydraulic movement of heating plate that can host male/female sockets with heating plate detaching device

INTEGRATIVE SYSTEMS RADIUS 40-315 radial cutting band saw machine

Technical features

Materials	HDPE, PP
Power supply	230 Vac 50/60 Hz
Total absorbed power	6500 W
Working temperature	180° ÷ 280° C (356° ÷ 536° F)
Weight machine	735 Kg (1620 lb)
Weight control panel	55 Kg (1740 lb)
Dimensions machine	1680 x 1600 x 1690 mm; 66.1" x 63" x 66.5"
Dimensions control panel	600 x 600 x 1150 mm; 23.6" x 23.6" x 45.2"
