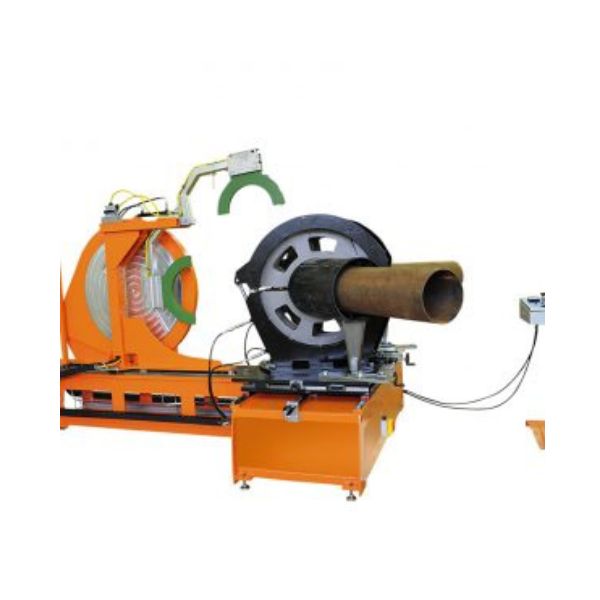

ALFA TEL-800

Workshop welder for pre-insulated HDPE elbows Ø400–800 mm, valves Ø400–710 mm.

Other Variants

Omega 400 TAB 400 CTB 630T 1000 1200 48" 1600 FM 630/125

Applications

Pipe welding,

Enquire Now Download Brochure

Description

ALFA TEL – 800 is a workshop machine designed to weld pre-insulated district HDPE pipes and valves for both heating and cooling lines.

ALFA TEL – 800 produces pre-insulated HDPE elbows within 400 ÷ 800 mm diameter range and jackets for valves within 400 ÷ 710 mm diameter range.

ALFA TEL – 800 has a machine body with facer and interchangeable heating elements.
The fitting segments are loaded onto the machine carriages and tightened by clamps. The hydraulic movements of carriages, heating element, facer and clamps are driven by an handy control panel. Each heating element is made by 2 jaws and it can be easily replaced to fit the joint geometry requirements.

Both carriages can move along orthogonal directions to ensure the optimal match of the surfaces to be welded.
The rotating clamps allow to manufacture elbows from segments with different angles and their design decreases the lead time to load, unload and align the fittings.

Technical features

Materials	HDPE/PP
Working range	ELBOWS Ø 400 ÷ 800 mm JACKETS FOR VALVES Ø 400 ÷ 710 mm
Power supply	400 V Three Phase 50/60 Hz
Total absorbed power	15000 W
Weight	2220 Kg
Dimension	4000 x 2100 x 2000 mm
