Description

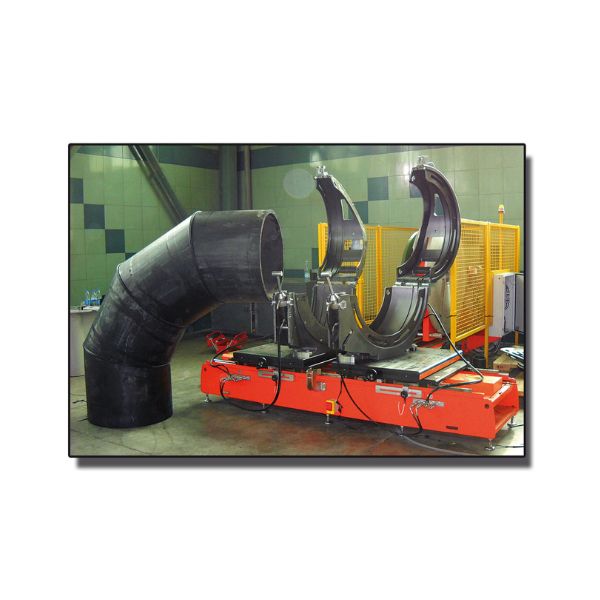

ALFA 1000 is a workshop welding machine designed to fabricate fittings by joining pipe segments, with the help of special jaws.

Elbows Ø 355 ÷ 1000 mm

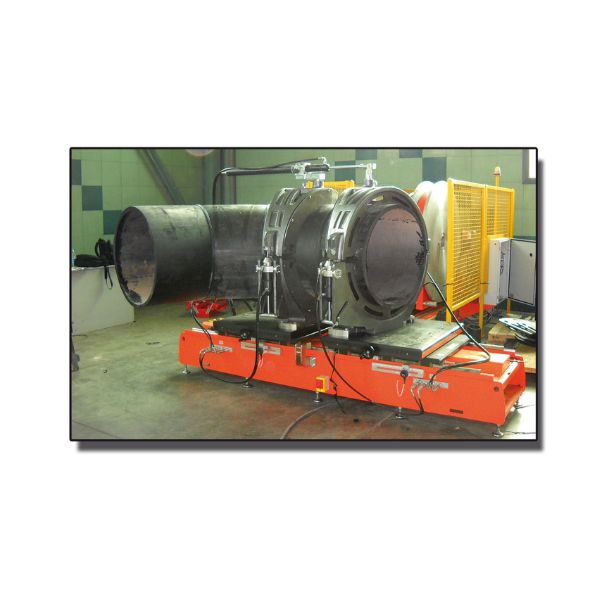

Tees – Crosses – Wyes Ø 355 ÷ 800 mm

Composed of:

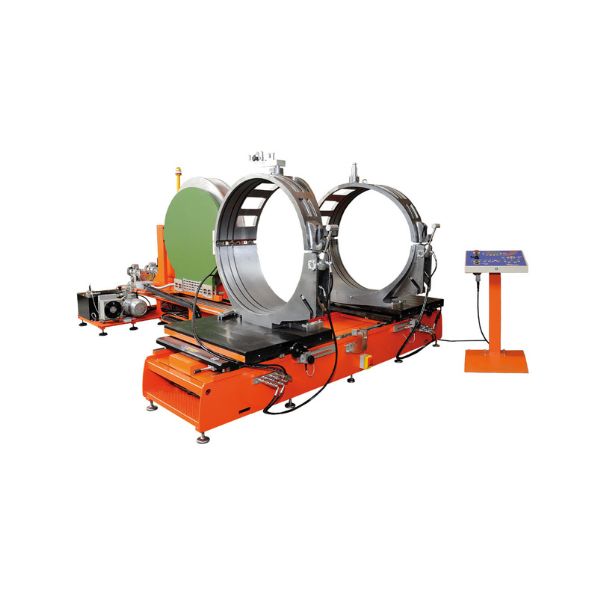

– A machine body with two hydraulically controlled carriages

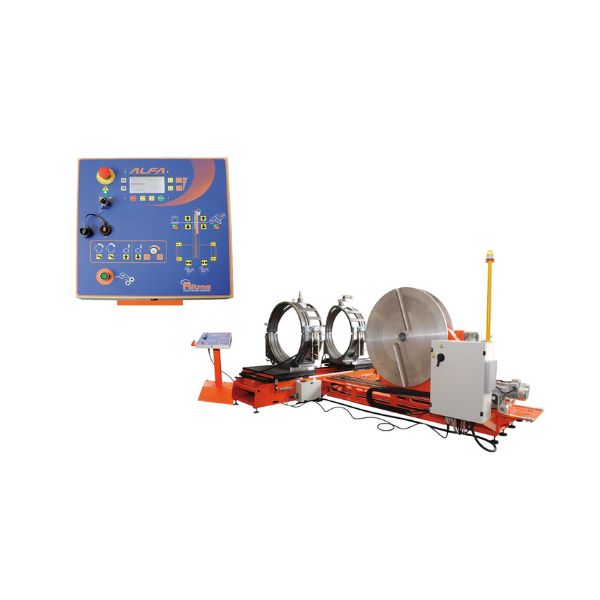

– A control panel that features the CNC system, thanks to this would eliminate any risk of error due to the operator. The CNC incorporates a data-logging that can store up to 4000 cycles. It is possible to download the PDF data via USB slot. Possibility to pre-set 20 customized
– A Teflon-coated heating plate with electrical movement (in/out) on spherical bearings guides
– A milling cutter with electrical movement (in/out) on spherical bearings guides, operated by an electrical engine
– An upper cylinder, to be positioned on the jaws, for welding extra thick pipes and/or whenever it is necessary to apply high pressures.

STANDARD COMPOSITION
– Machine body with control panel CNC
– Elbows jaws Ø 1000 complete with inserts from Ø 355 to Ø 900 mm
– Heating plate
– Milling cutter
– Upper cylinder and service tools

ON REQUEST (ACCESSORIES)
– Wyes – Tees – crosses jaws Ø 800 mm inserts from Ø 355 to Ø 710 mm

Technical features

Working range elbows 0° ÷ 60°	Ø 355 ÷ 1000 mm
Working range wyes 45° ÷ 60°	Ø 355 ÷ 800 mm
Working range Tees	Ø 355 ÷ 800 mm
Working range crosses	Ø 355 ÷ 800 mm
Pressure range	0 ÷ 230 bar
Welding system	CNC
Connection	USB Port Type A
Tablet	15,6”
Wi-fi	Yes
Welding report	PDF - CSV
Memory	more than 16 gigabytes
Power supply	400 V Three ph
Working temperature	180° ÷ 280° C (356° ÷ 536° F)
Outside temperature range	-5° ÷ 40° C (23° ÷ 104° F)
Dimensions	298 x 456 x 306 cm 117” x 179” x 121”
Weight	3130 Kg (6900 lb)
