Aligner ECO 20-63

Compact aligner for Ø20–63 mm pipes, welds at 0°, 30°, 45°, 90° & T joints

Other Variants

160 light 63-180 125-500 63-200 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

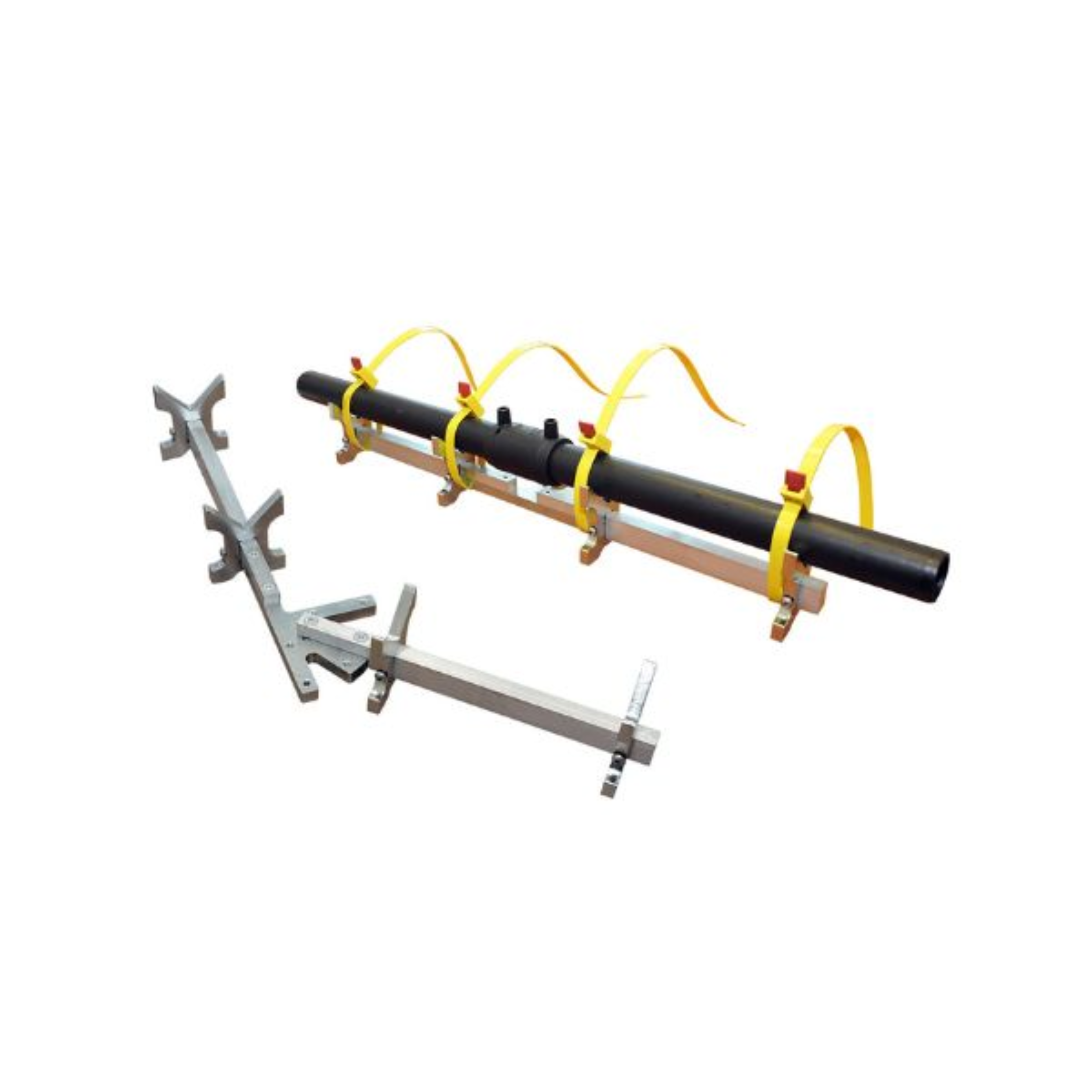

ALIGNER ECO 20-63 is composed by two aluminum axes on which are mounted self-centering clamps made of steel.

The clamps, can easily slide through the entire length of the axes.
A positioning plate allows to perform welds in line, 30 °, 45 °, 90 ° and T-branches in diameters between 20 and 63 mm.
The fixing of the pipes is done via cable ties (supplied) with fastener and quick release.
The aligner is versatile and easy to use.

Standard composition:
Aligner equipped with 4 cable ties.

Technical features

Working Range	Ø 20 ÷ 63 mm
Type of welds	30° – 45° – 90° – in line – Tee
Size	640 x 120 x 83 mm
Weight	3 Kg

Related Products

UNIVERSAL ALIGNER 160 LIGHT

Aluminum aligner Ø63–160 mm, 45°–90°, 4 clamps

Enquire Now

ALIGNER ECO 63 - 180

Steel aligner for Ø63–180 mm pipes with adjustable joint for 30°, 45°, 90°, and T welds.

Enquire Now

ALIGNER 125 - 500

Steel aligner for Ø125–500 mm pipes with adjustable joint for 45°, 90°, in-line, and T welds

Enquire Now

SQUEEZER 63-200

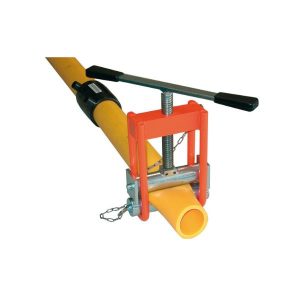

Hydraulic squeezer safely stops HDPE pipe flow Ø63–200 mm (SDR 11/17) for site maintenance

Enquire Now

SQUEEZER 63

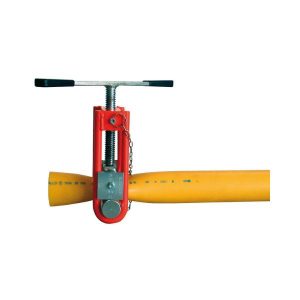

Manual tool to stop gas or water flow in PE pipes Ø16–63 mm (SDR 11/17) quickly and safely
