ALIGNER 125 - 500

Steel aligner for Ø125–500 mm pipes with adjustable joint for 45°, 90°, in-line, and T welds

Other Variants

160 light 63-180 125-500 Rerounder 63-200 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

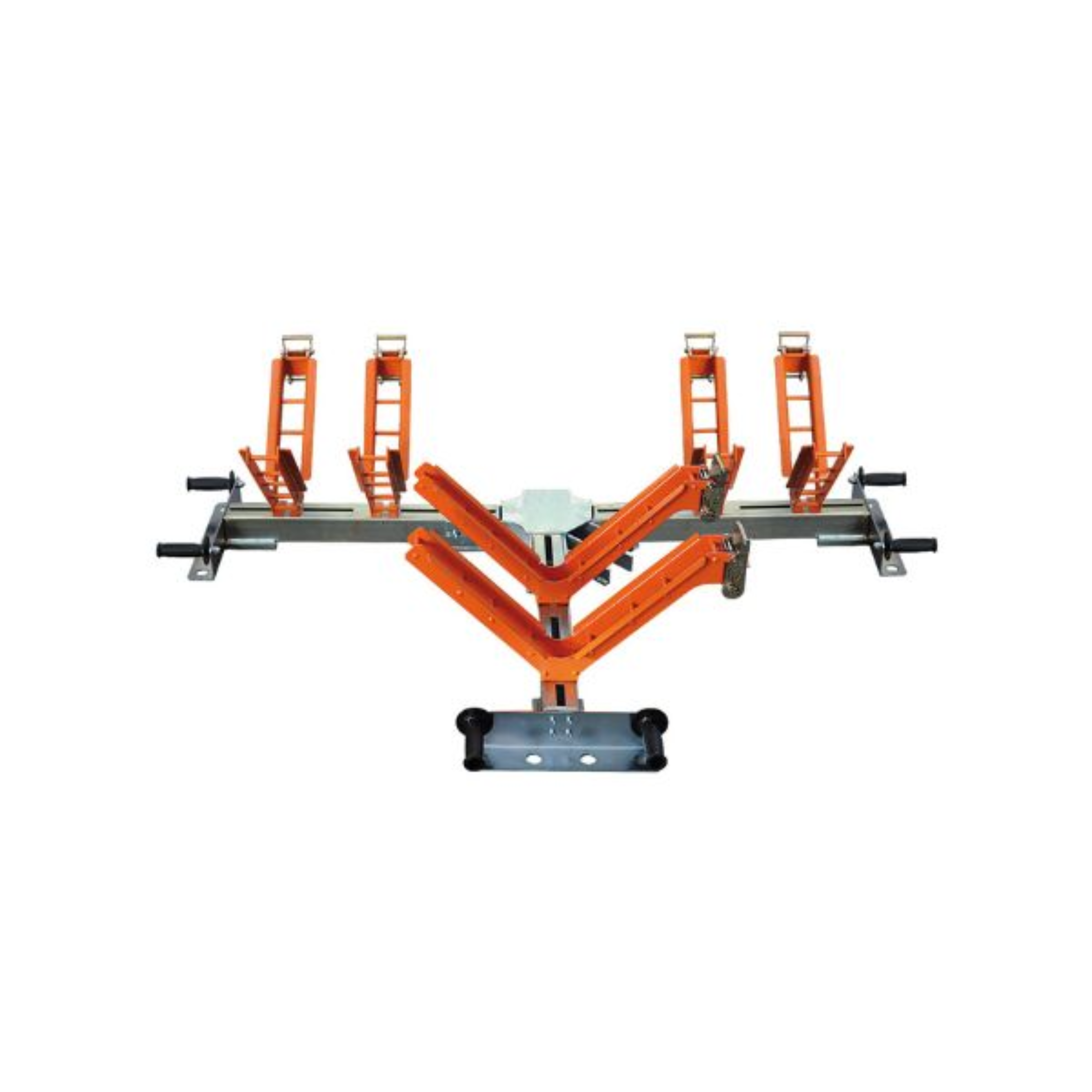

ALIGNER 125 – 500 is an essential and professional tool for the alignment and support of pipes during electrofusion from Ø 125 mm to 500 mm.

The ALIGNER is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes.
The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 45°, 90°, “in line” and T welding.
Axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, serves also as a centering device.
Each axis has 2 guides on which the clamps are able to slide.

Practical side handles ensure an easy grip during movement and positioning, both during welding procedures, and preparation.

The aligner is available in two configurations: 2 axes and 3 axes (to weld T fittings).

STANDARD COMPOSITION
– Aligner complete with four clamps, service spanner

Technical features

Working range	Ø 125 ÷ 500 mm
For welding	45° – 90° – in line – T
Dimensions 2 axes version	1815 x 610 x 410 mm
Dimensions 3 axes version	1815 x 1230 x 410 mm
Weight 2 axes version	38 Kg
Weight 3 axes version	52 Kg
