REROUNDER

Steel rerounder restores oval pipes Ø250–800 mm for proper electrofusion coupling fit

Other Variants

160 light 63-180 125-500 Rerounder 63-200 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

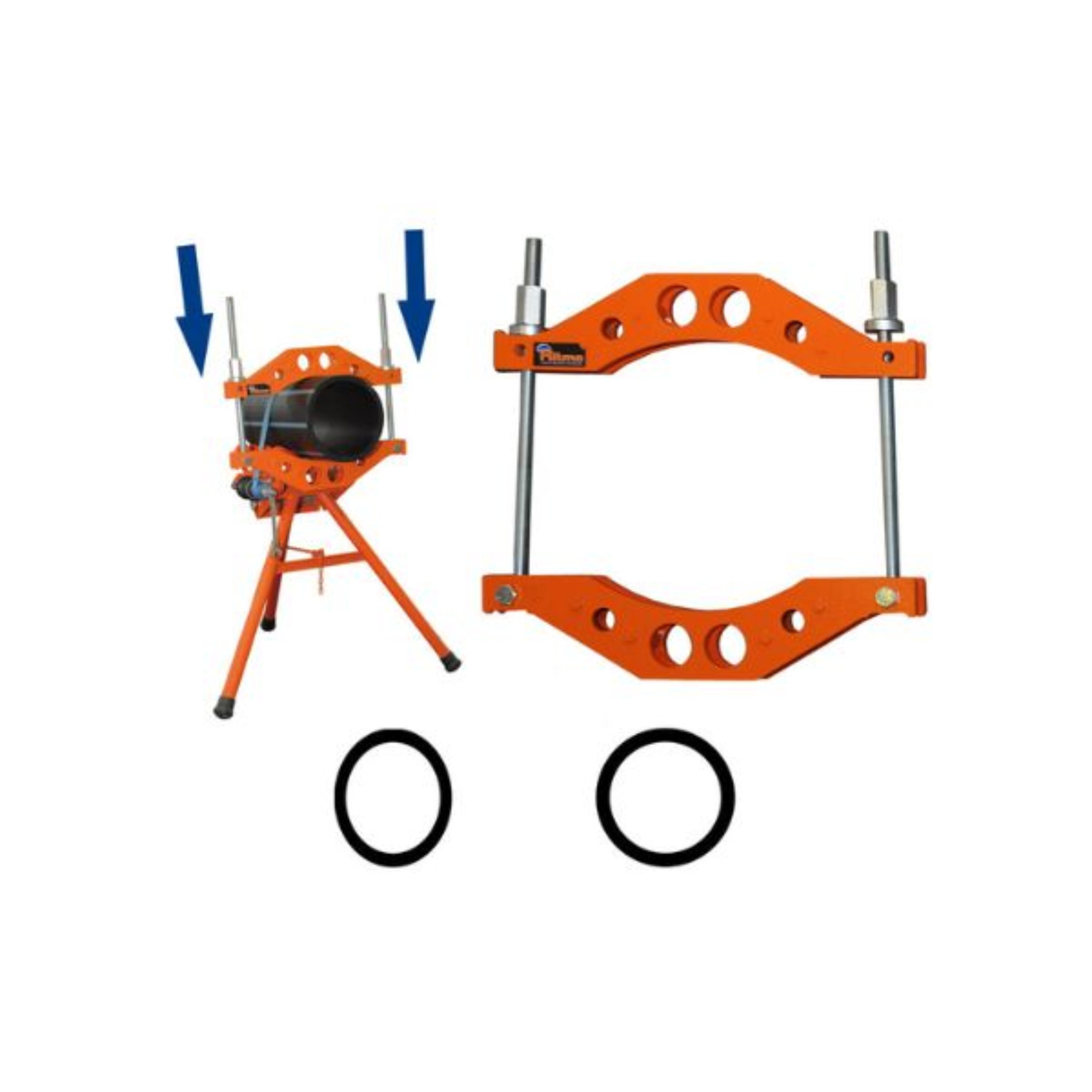

Rerounder the mechanical thread of these steel-made products help remodel the ends of ovalized pipes that need to welded by electrofusion.

The manual clamping of the tool stems pushes the ovalized end till its reshaping respects the ovalization range required by most standards, therefore allowing its insertion into an electrical coupling – and avoiding the cost of eliminating a good pipe.

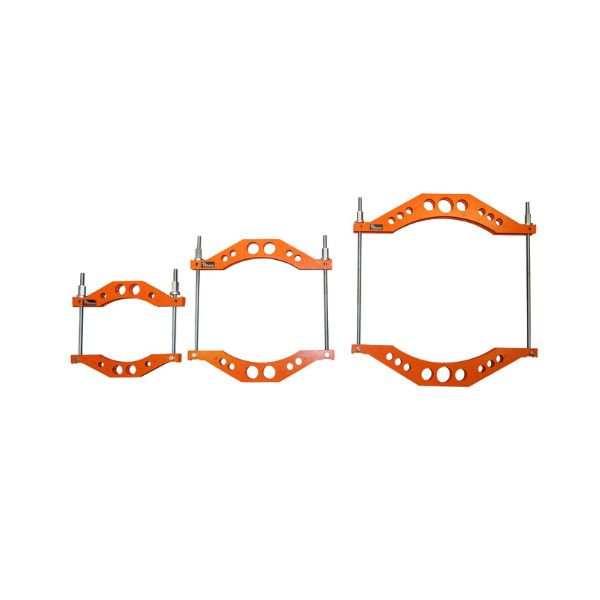

The 3 rerounders cover the following diameters range:
250-400 model for OD from 250 to 400 mm;
450-560 model for OD from 450 to 560 mm,
630-800 model for OD from 630 to 800 mm.

Each one of them is sold separately, with a steel transport box

Technical features

Rerounder 250 – 400
Working range	Ø 250 ÷ 400 mm
Dimensions	610 x 255 x 120 mm
Weight	27 Kg
Rerounder 450 – 560
Working range	Ø 450 ÷ 560 mm
Dimensions	980 x 495 x 200 mm
Weight	41 Kg
Rerounder 630 – 800
Working range	Ø 630 ÷ 800 mm
Dimensions	1240 x 555 x 200 mm
Weight	60 Kg
