ALIGNER ECO 63 - 180

Steel aligner for Ø63–180 mm pipes with adjustable joint for 30°, 45°, 90°, and T welds.

Other Variants

160 light 63-180 125-500 Rerounder 63-200 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

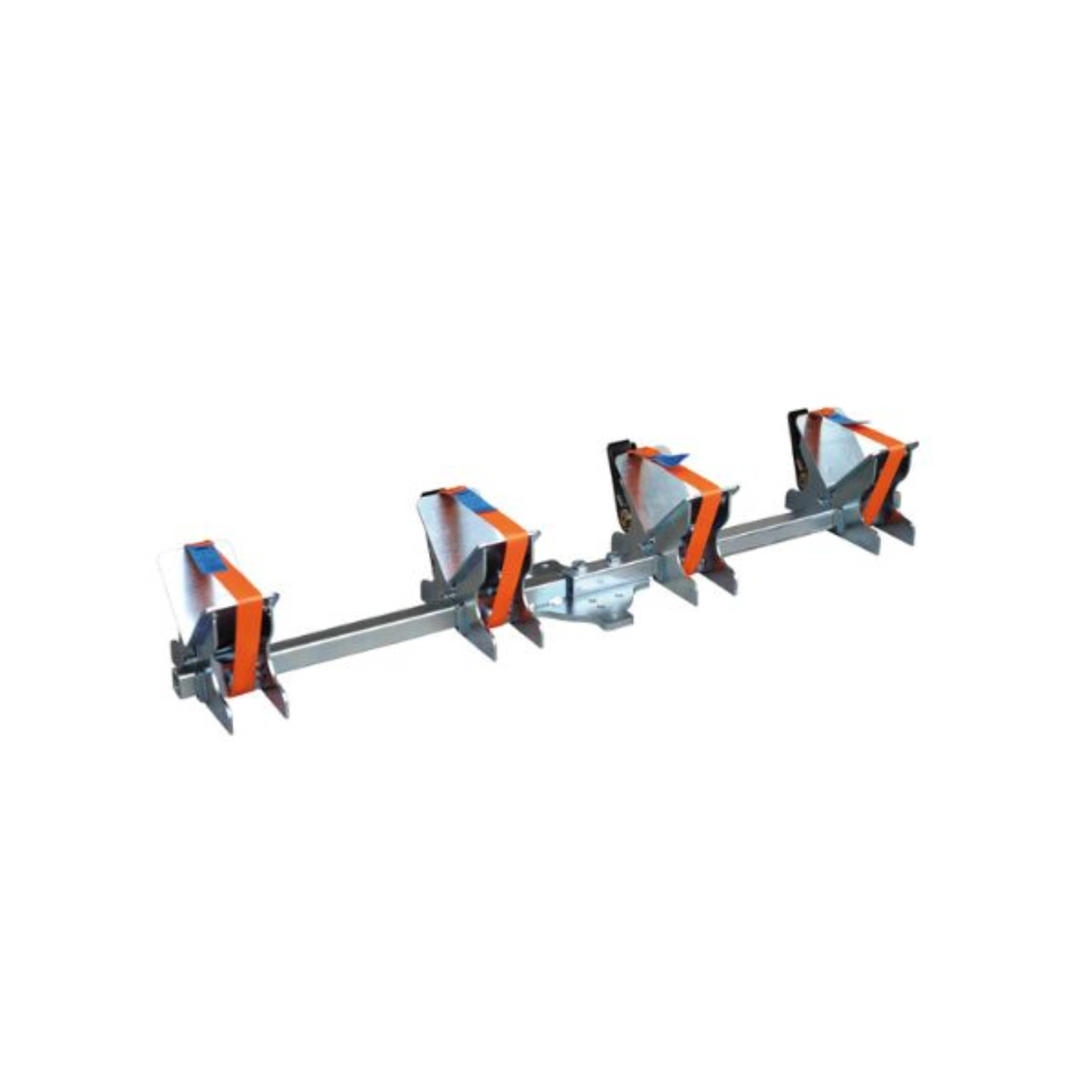

ALIGNER ECO 63 – 180 is an essential and professional tool for the alignment and support of pipes during electrofusion from Ø 63 mm to 180 mm.

The ALIGNER is entirely made of steel, featuring a central adjustable joint and pipe fastening clamps fixed on axes.
The adjustable joint can be set on 4 different working positions to allow welding at preset angles such as 30°, 45°, 90°, “in line” and T welding.
Axes have V-shaped clamps positioned on them, which are equipped with pipe fastening belts. The system, along with fixing the pipe to the clamp, serves also as a centering device.
Each axis has 2 guides on which the clamps are able to slide.

The aligner is available in two configurations: 2 axes and 3 axes (to weld T fittings).

STANDARD COMPOSITION
– Aligner complete with four clamps, service spanner

Technical features

Working range	Ø 63 ÷ 180 mm
For welding	30° – 45° – 90° – in line – T
Dimensions 2 axes version	915 x 140 x 130 mm
Dimensions 3 axes version	915 x 575 x 130 mm
Weight 2 axes version	7,5 Kg
Weight 3 axes version	10 Kg
