UNIVERSAL ALIGNER 160 LIGHT

Aluminum aligner Ø63–160 mm, 45°–90°, 4 clamps

Other Variants

160 light 63-180 125-500 Rerounder 63-200

Applications

Pipe welding,

Enquire Now Download Brochure

Description

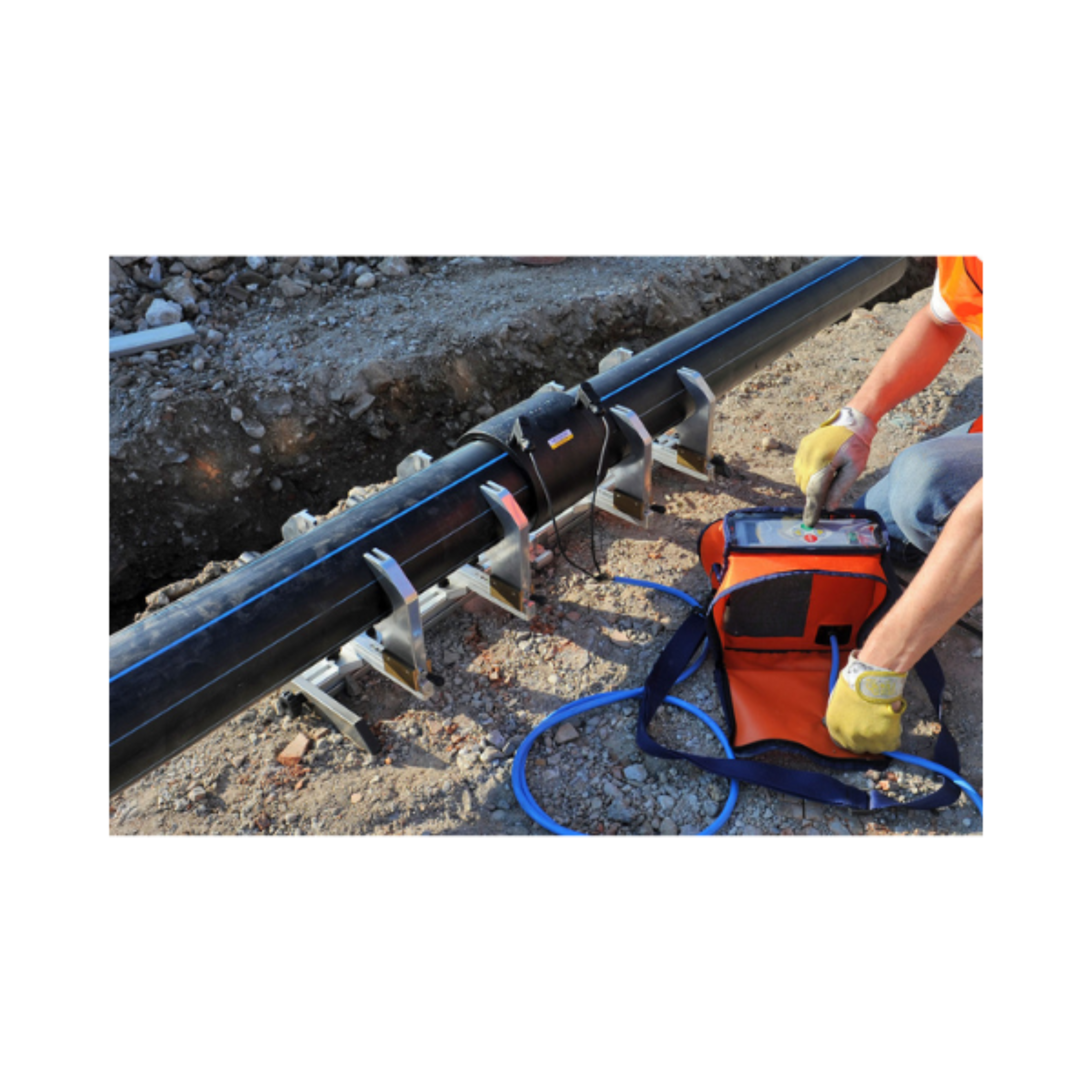

UNIVERSAL ALIGNER 160: professional tool is essential to hold pipes still and aligned during electrofusion (from Ø 63 to Ø 160 mm – 2” IPS – 6” IPS).

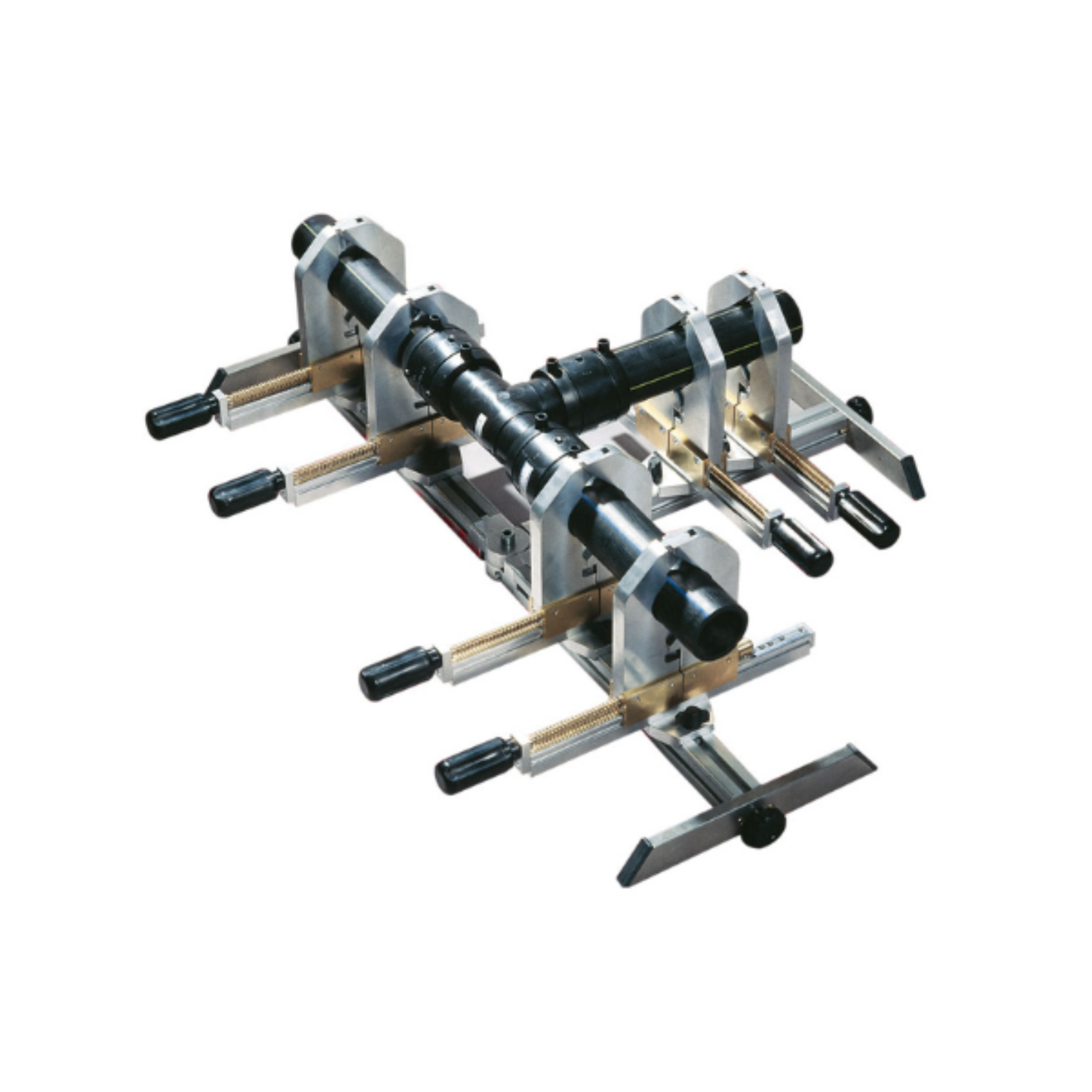

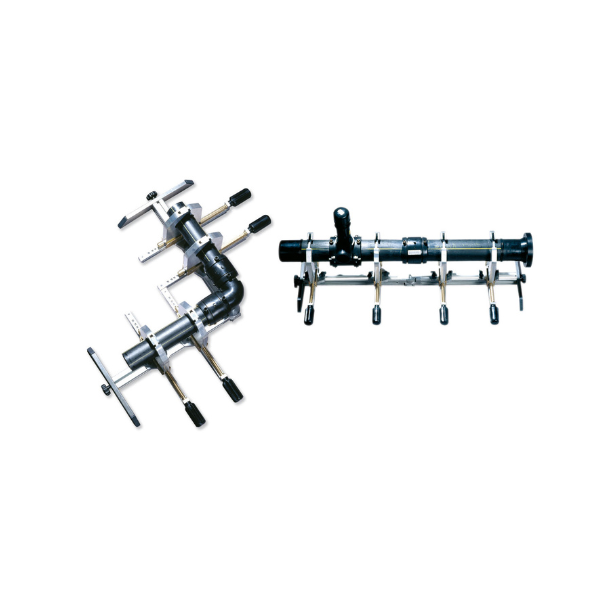

The UNIVERSAL ALIGNER 160 Light is made almost entirely in a special Aluminium alloy and features a central joint for the fixed positions at 45° and 90°, four self-centring clamps that require no adapters, and on request an additional axle complete with two clamps for welding the tees.
Its special quick release clamps grants a rapid extraction of the pipe once it has been welded.

STANDARD COMPOSITION
– Aligner complete with four clamps, transport bag or wooden transport case

ON REQUEST (ACCESSORIES)
– A 3rd axle complete with two clamps (for welding “Tees”)

Technical features

Working range	Ø 63 ÷ 160 mm (2” IPS – 6” IPS)
Maxi overall dimensions	980 x 430 x 260 mm
Weight aligner	9 Kg
Weight bag or case	1,5 or 14 Kg

Related Products

UNIVERSAL ALIGNER 160 LIGHT

Aluminum aligner Ø63–160 mm, 45°–90°, 4 clamps

Enquire Now

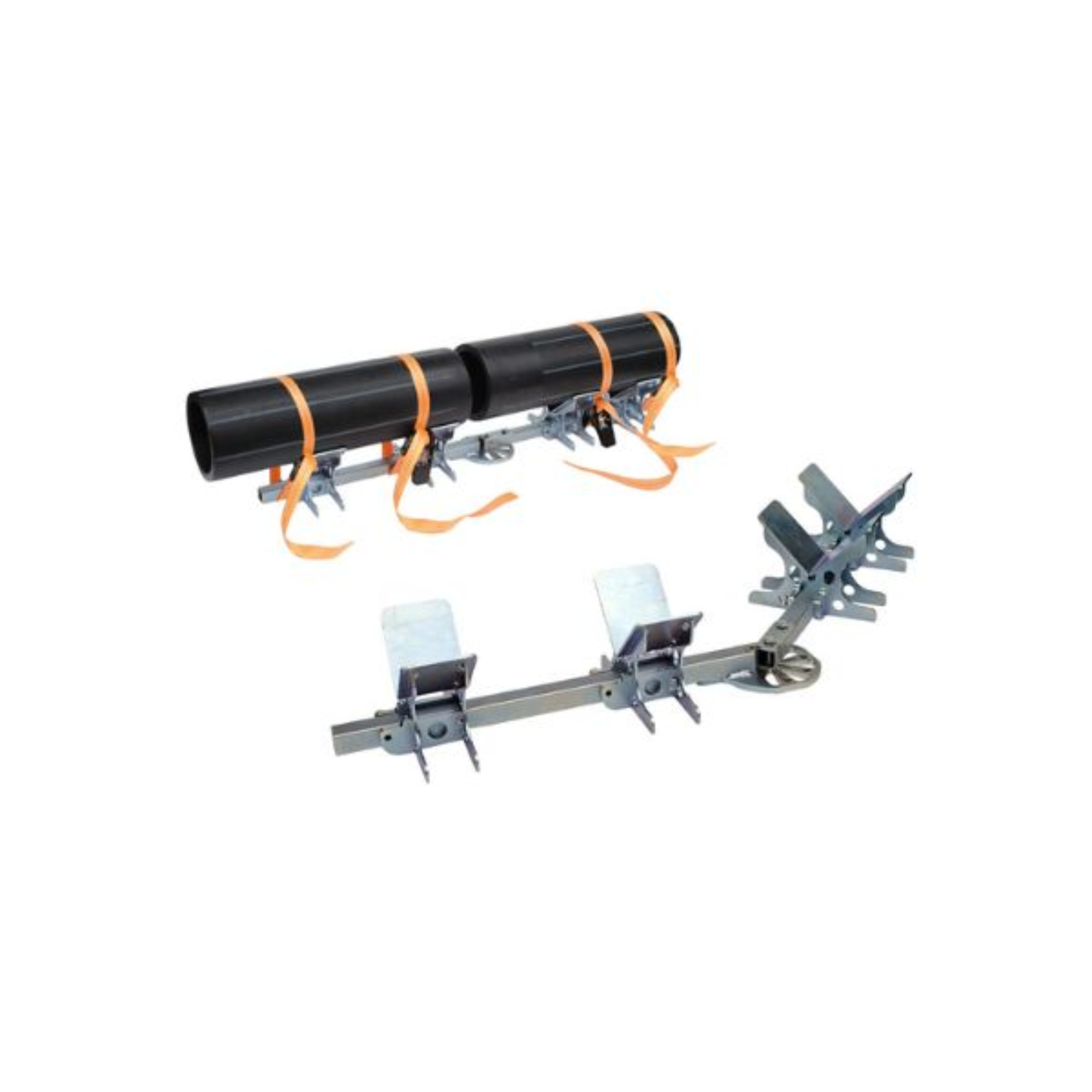

ALIGNER ECO 63 - 180
