PIPE SCRAPERS PS

Professional rotary scrapers Ø up to 400 mm for uniform pipe surface preparation.

Other Variants

63-180 125-500 Rerounder 63-200 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

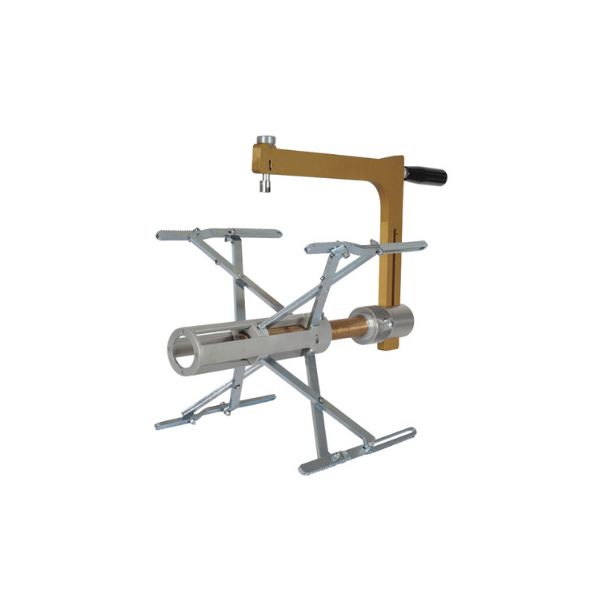

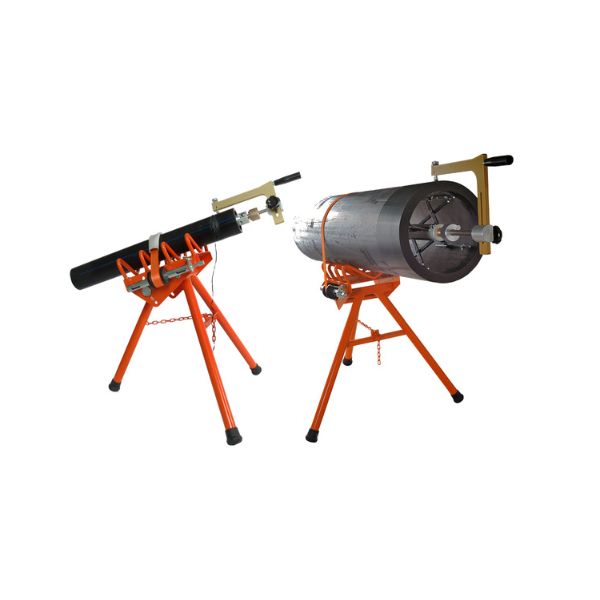

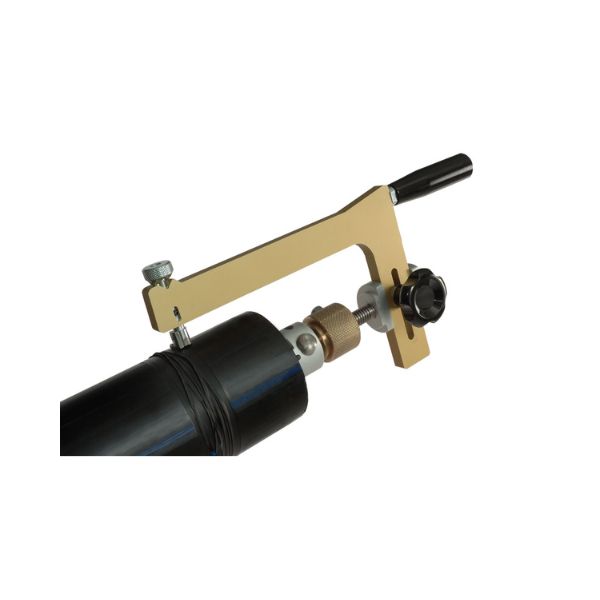

PS 180 and PS 400 are professional rotary scrapers, essential to prepare the plastic pipes and fittings before electrofusion welding.

The tools has an adjustable chuck covering all the Ø of the working range, and a blade holder orbital arm.
The PS series guarantees a constant and regular removal of the shaving.
The scrapers blade holder permits the scraping of the entire electrical sleeve’s lenght, most useful when doing on site repairs.

STANDARD COMPOSITION

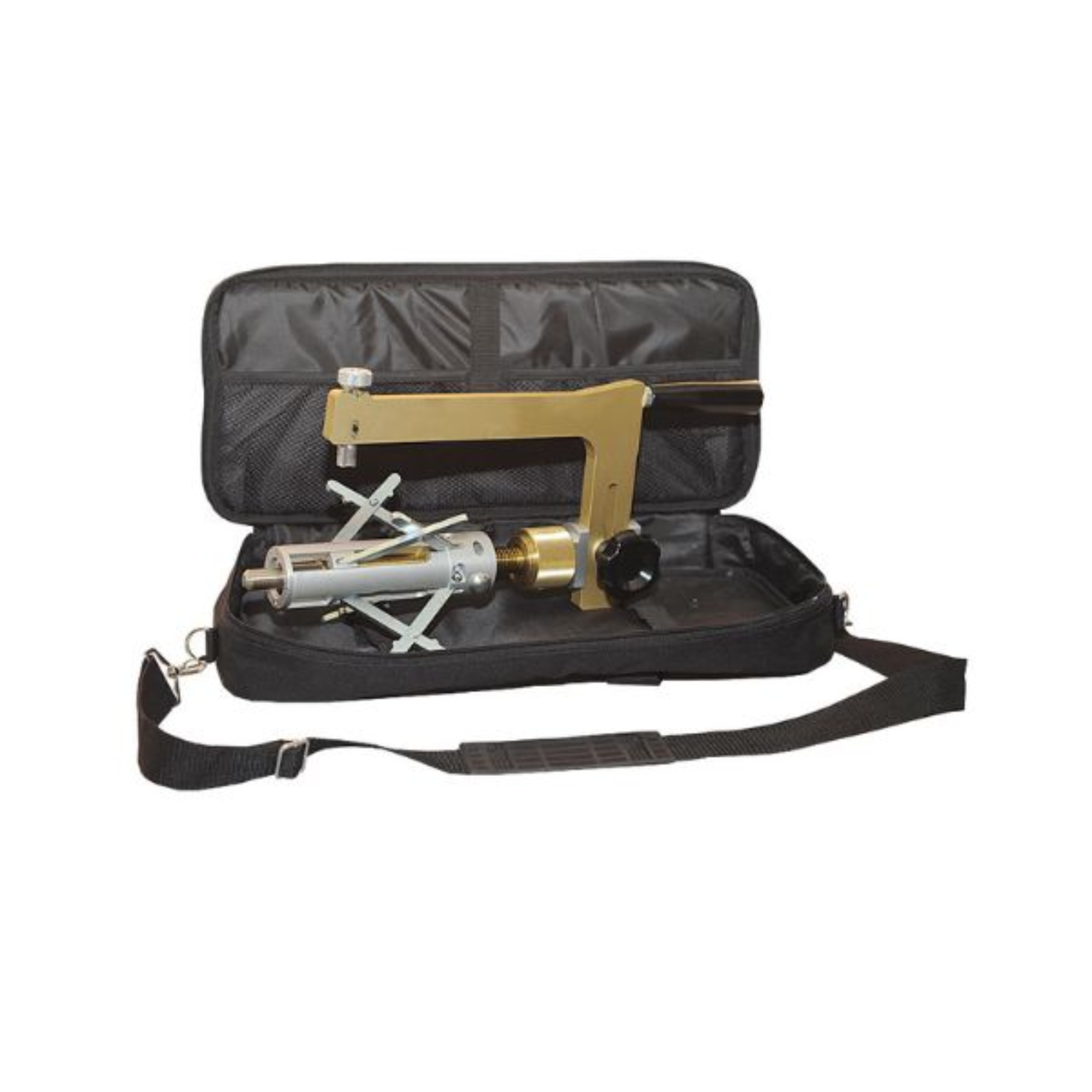

– PS 180 supplied with transport bag and spare blade

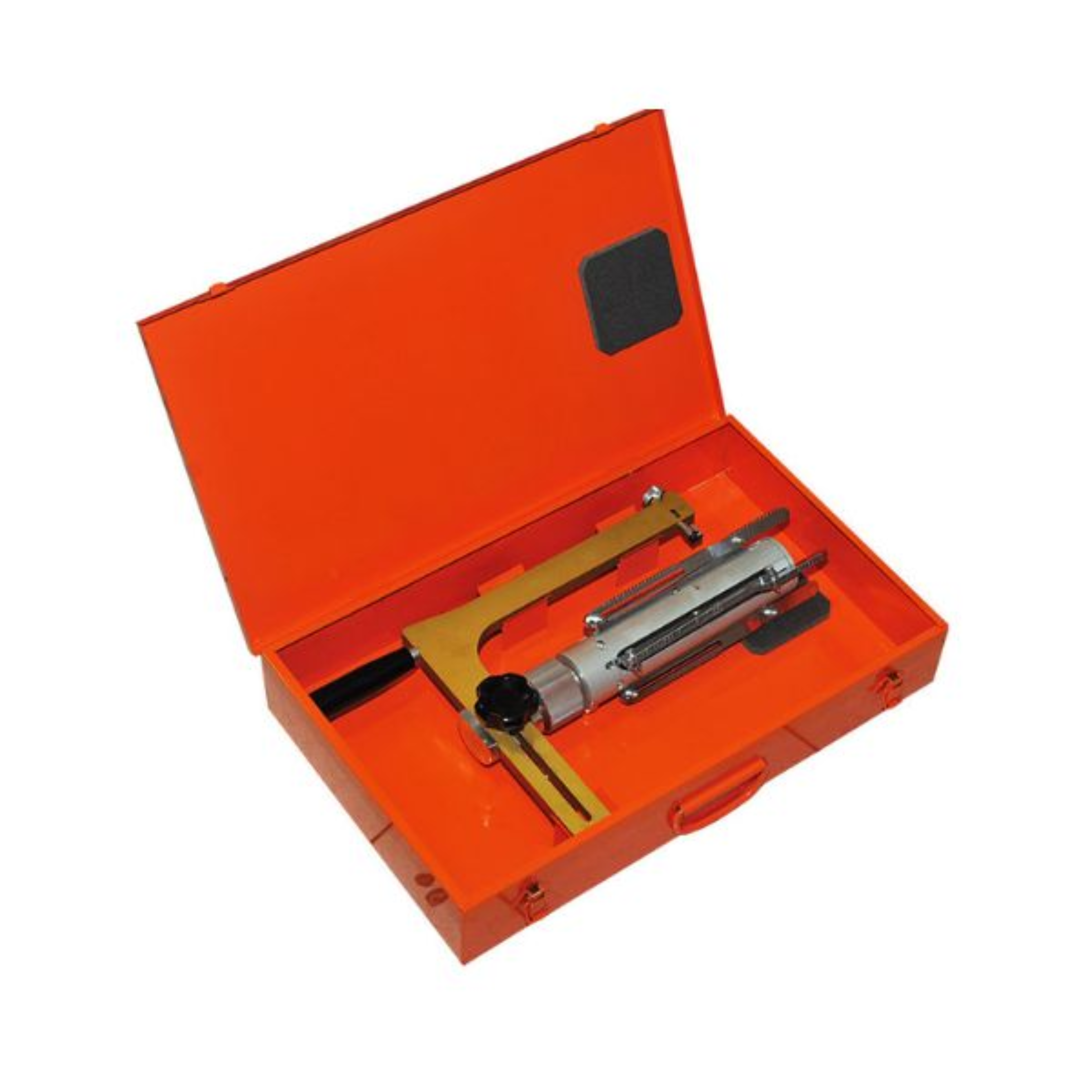

– PS 400 supplied with transport case and spare blade

Technical features

PS 180
Materials	PE/PP/PP-R/other
Working range EXTERNAL	Ø 75 ÷ 200* mm (*SDR 6 ÷ 26)
Working range INTERNAL	Ø 61 ÷ 172 mm
Max scraping lenght	129 mm
Weight	2,80 Kg
Dimensions	595 x 272 x 190 mm
Dimensions – Transport	453 x 185 x 63 mm
PS 400
Working range EXTERNAL	Ø 137 ÷ 426 mm
Working range INTERNAL	Ø 130 ÷ 391 mm
Max scraping lenght	150 mm
Weight	5,50 Kg
Dimensions	790 x 400 x 400 mm
Dimensions – Transport	550 x 350 x 90 mm

Related Products

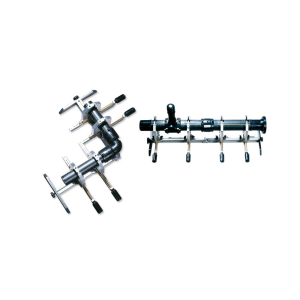

ALIGNER ECO 63 - 180

Steel aligner for Ø63–180 mm pipes with adjustable joint for 30°, 45°, 90°, and T welds.

Enquire Now

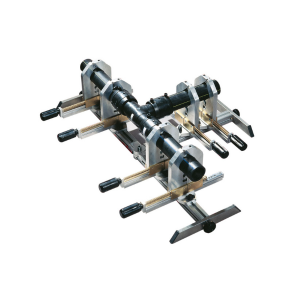

ALIGNER 125 - 500
