Description

RTC 160 – 315 – 500 – 710

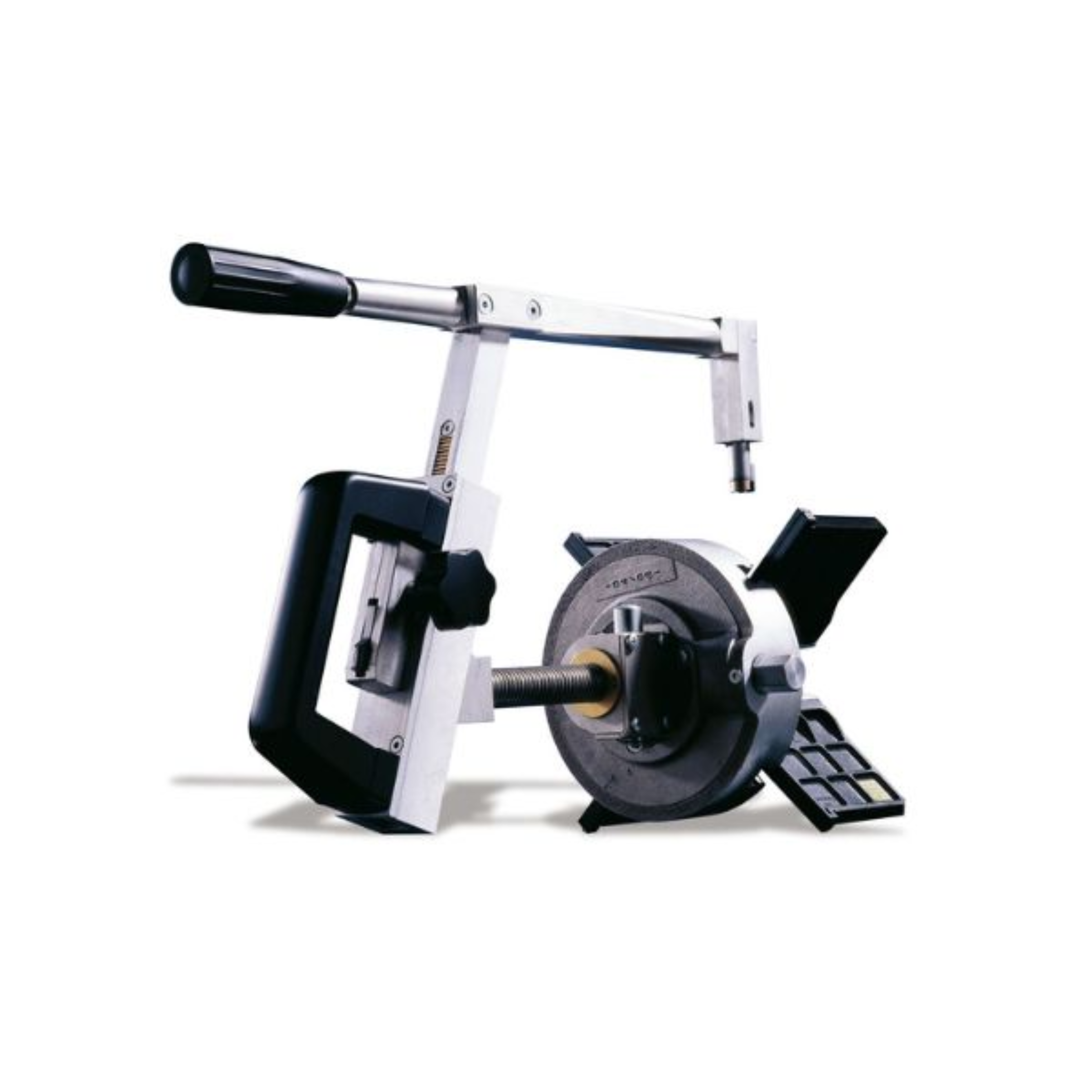

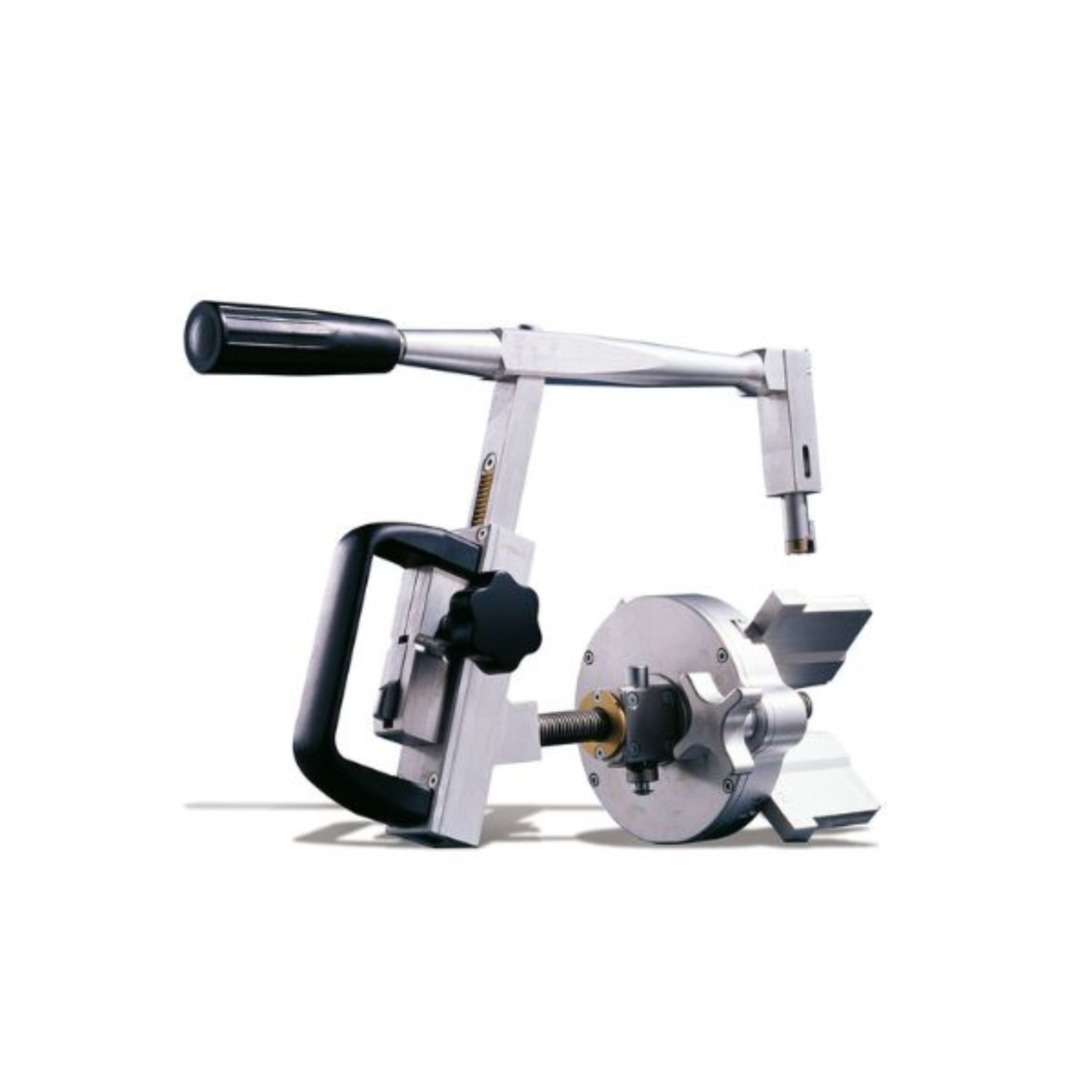

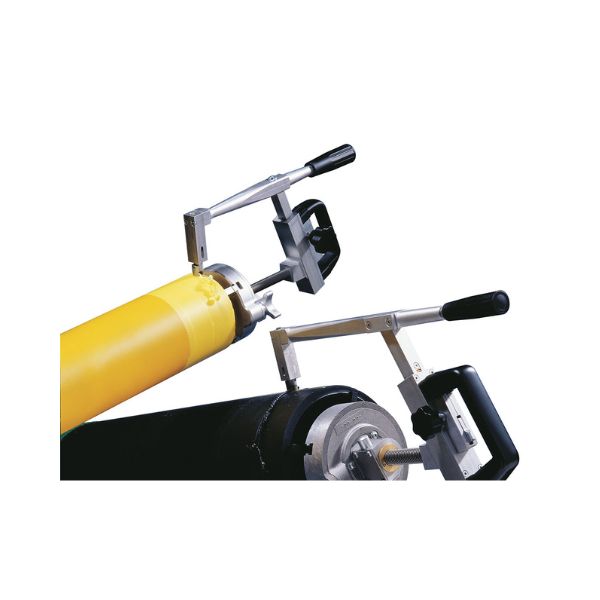

These professional rotary scrapers, designed and patented by Ritmo, are essential to prepare the plastic pipes and fittings before electrofusion welding.
Practical and handy, the pipe scrapers remove the oxidation layer caused by weather and ultraviolet rays. If not removed, the oxidation layer would severely compromise the quality of the joint. Among the main construction features there is a device that makes it possible to maintain the thickness of the continuous chip constant, even if the pipe is misshaped, and to adjust the length of the surface to scrape according to the depth of the electrical coupler.

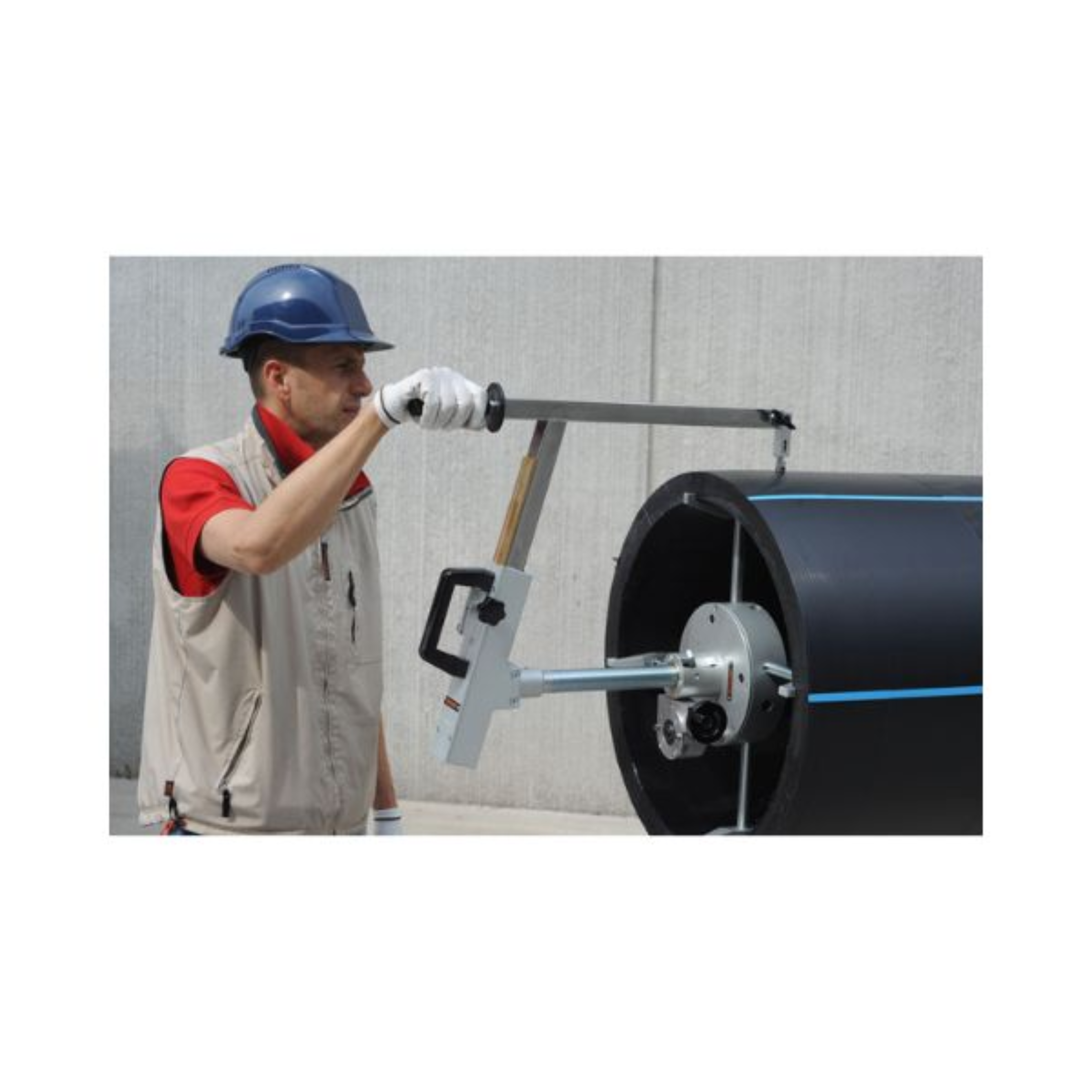

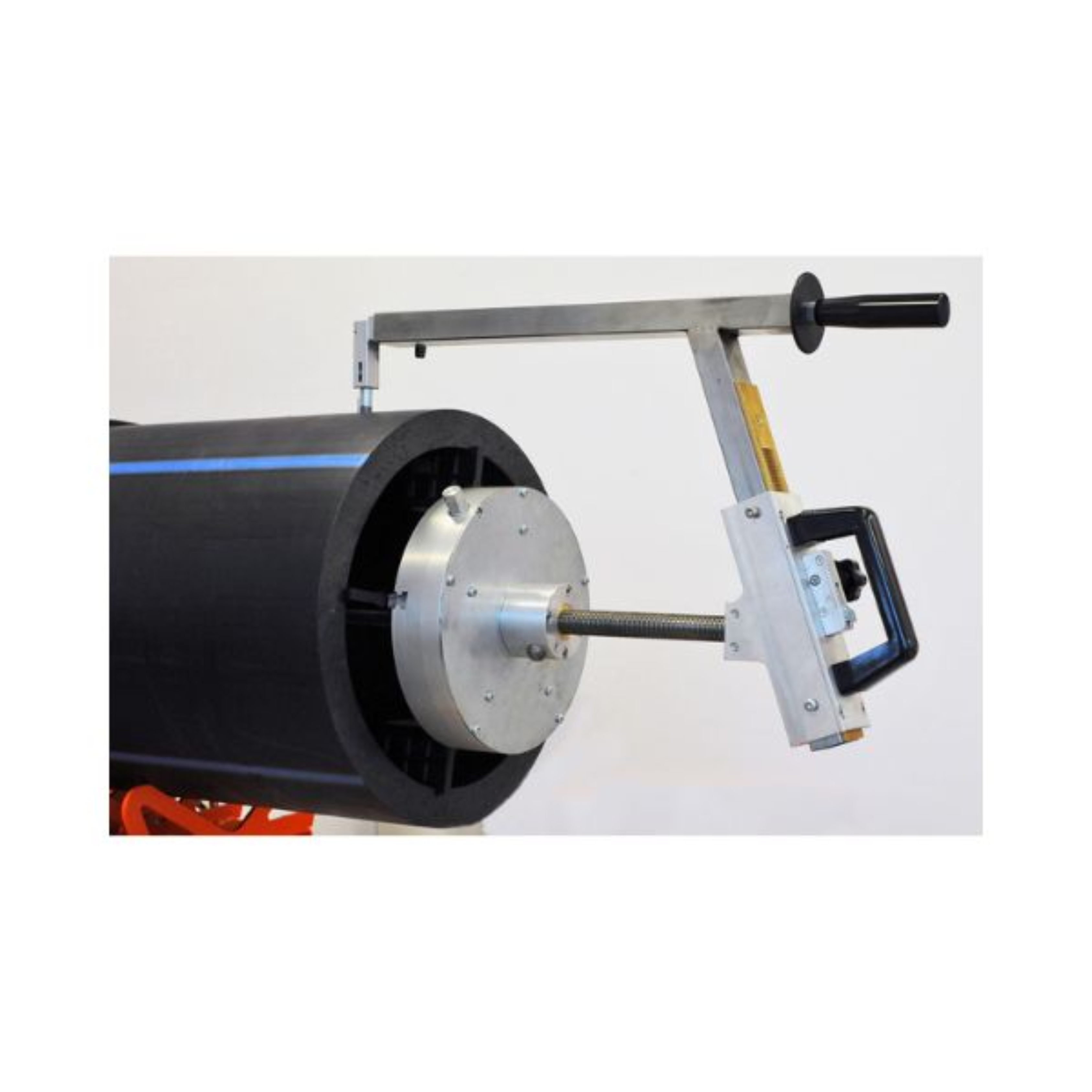

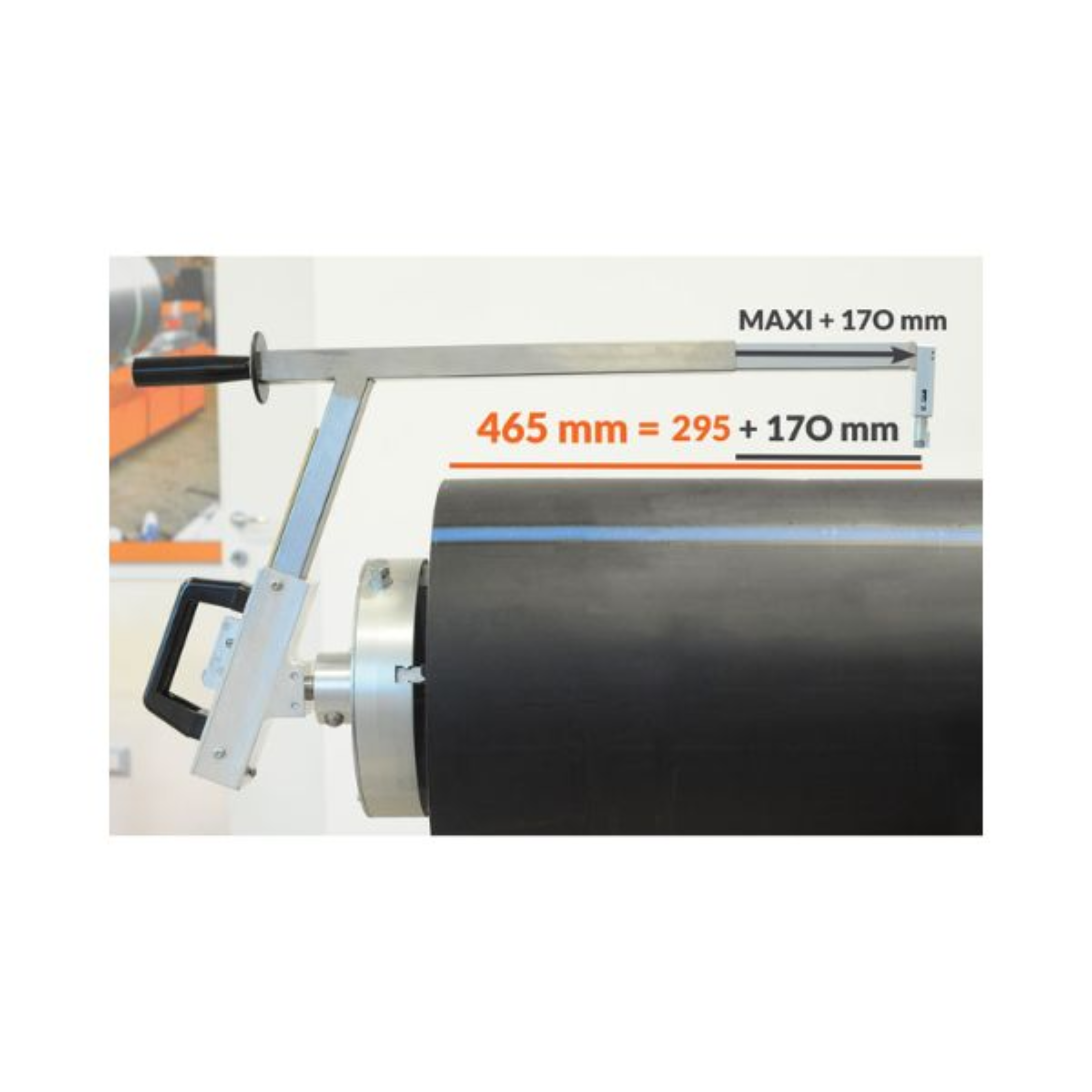

RTC 500 and RTC 710 features an extendable arm to scrape the exact length of the electrical coupler, which is an advantage when having to perform maintenance/repair jobs in the building site. The main chuck has four extendable arms that clamps directly the inside diameter of the pipe.

STANDARD COMPOSITION
– Pipe scraper
– Spare blade
– Transport case
– Screwdriver and small cutter

Technical features

RTC 160
Materials	PE/PP/PP-R/other
Working range EXTERNAL	Ø 50 ÷ 160 mm 2” IPS ÷ 6” IPS
Working range INTERNAL	Ø 38 ÷ 154 mm 1.5” x 6”
Max scraping lenght	114 mm 4.5″
Weight	2,50 Kg – 5.5 lb
Weight with accessories	5,65 Kg – 12.5 lb
Dimensions	380 x 120 x 250 mm 14.9” x 4.7” x 9.8”
Dimensions – Transport	390 x 210 x 135 mm 15.3” x 8,3” x 5.3”
RTC 315
Working range EXTERNAL	Ø 75 ÷ 315 mm 3” IPS ÷ 12” IPS
Working range INTERNAL	Ø 58 ÷ 300 mm 2.2” x 11.8”)
Max scraping lenght	137 mm 5.4″
Weight	4,50 Kg – 9.9 lb
Weight with accessories	7,50 Kg – 16.5 lb
Dimensions	510 x 310 x 410 mm 20” x 12.2” x 16.1”
Dimensions – Transport	230 x 500 x 270 mm 9” x 19.7” x 16.1”
RTC 500
Working range EXTERNAL	ØØ 180 ÷ 500 mm 8″ IPS ÷ 20″ IPS
Working range INTERNAL	Ø 110 ÷ 485 mm 4.3” ÷ 19.1”
Max scraping lenght	465 mm 18.3″
Weight Transport case	14 Kg – 31 lb
Weight with accessories	10 Kg – 22 lb
Dimensions max	780 x 500 x 250 mm 31” x 20” x 10”
Dimensions – Transport case	480 x 280 x 750 mm 19” x 11” x 30”
RTC 710
Working range EXTERNAL	Ø 355 ÷ 710 mm 14” IPS ÷ 28” IPS
Working range INTERNAL	Ø 290 ÷ 675 mm 11.4” x 26.5”
Max scraping lenght	530 mm 28.7″
Weight	16 Kg – 35.8 lb
Weight with accessories	28 Kg – 61.7 lb
Dimensions	825 x 805 x 695 mm 32.5” x 31.7” x 27,3”
Dimensions – Transport	800 x 580 x 350 mm 31.5” x 22.8” x 13.8”
