Prisma 125 Light

Compact socket welder Ø63–125 mm, HDPE/PP/PVDF/PB, 230 V.

Other Variants

125 JIG 90 125 Switch 125 JIG Prime

Applications

Pipe welding,

Enquire Now Download Brochure

Description

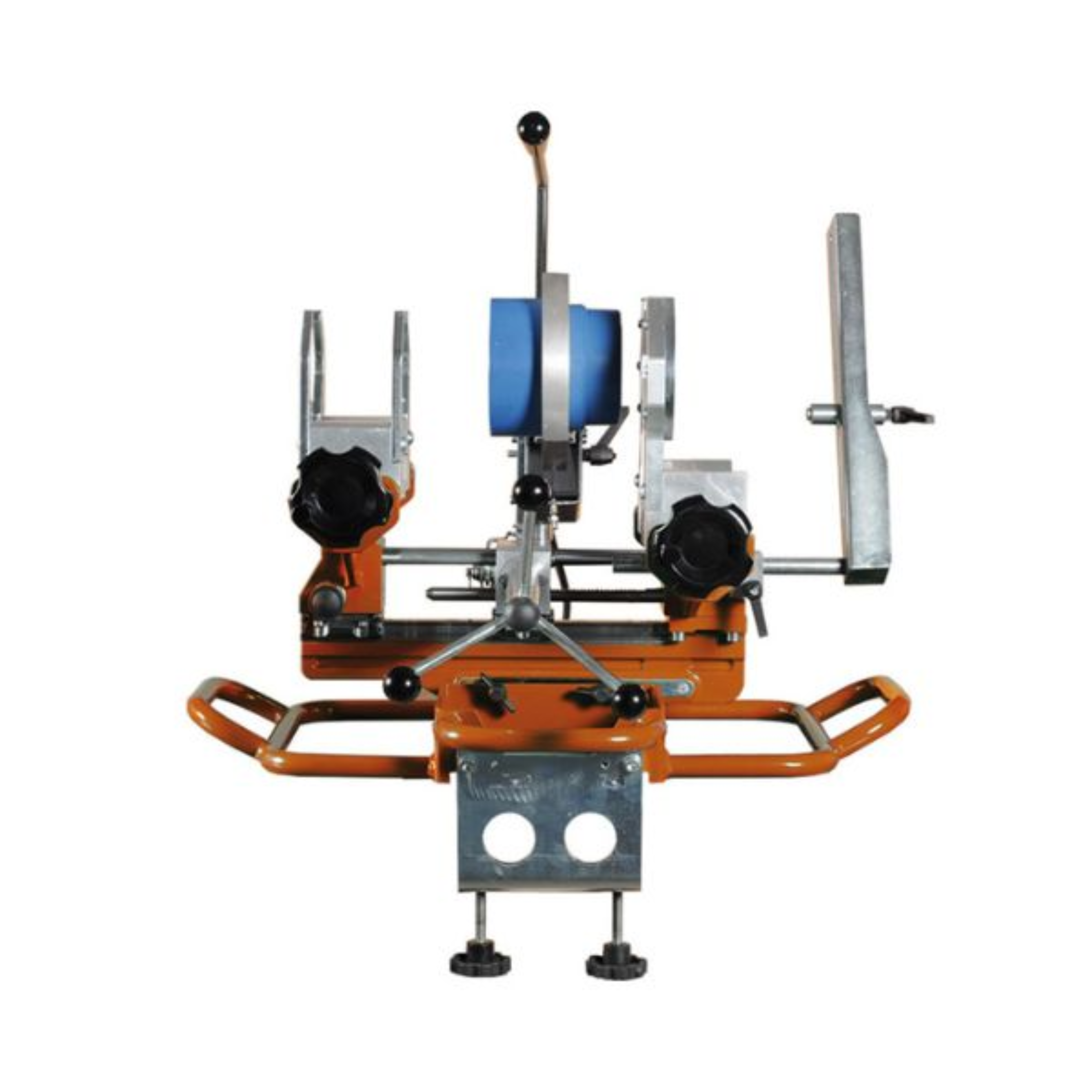

Welding machine PRISMA 125 LIGHT is a field machine for socket welding method, for pipe and fittings in HDPE, PP, PP-R, PVDF, PB for diameters included between 63 ÷ 125 mm (2″ ÷ 4″).
Leading particulares are the restricted weight, minimum overall dimensions and versatility.

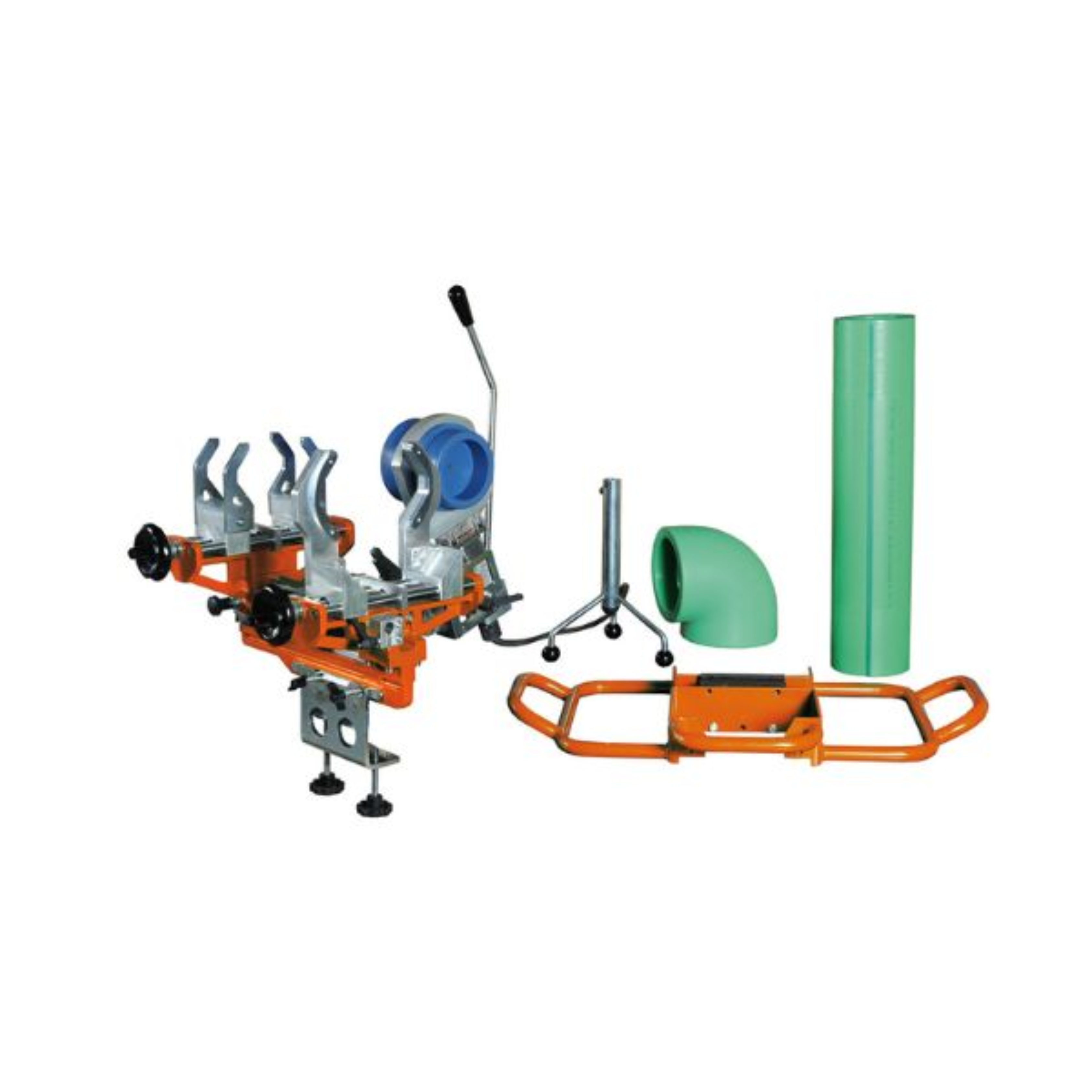

Featuring: a machine body, a self-centring clamp for locking the pipes, a self-centring clamp for locking the fittings, an extractable socket welder with an automatic electronic temperature, fitting holder and a special bench vice so the machine can be used on a work bench.

STANDARD COMPOSITION
– Welding machine Prisma 125 Light
– Socket fusion plate R 125 Q TFE
– Socket and spigot Ø 63 ÷ 125 mm with steel case
– Carrying box

Technical features

Working range max	Ø 63 ÷ 125 mm (2″ ÷ 4″)
Power supply	110 V or 230 V single phase 50/60 Hz
Total absorbed power	1400 W
Working temperature	260° ± 10° C on socket
Ambient temperature range	-5° ÷ 40° C
Materials	HDPE, PP, PP-R, PVDF, PB
Dimensions	620 x 670 x 610 mm
Weight	23,20 Kg
