Description

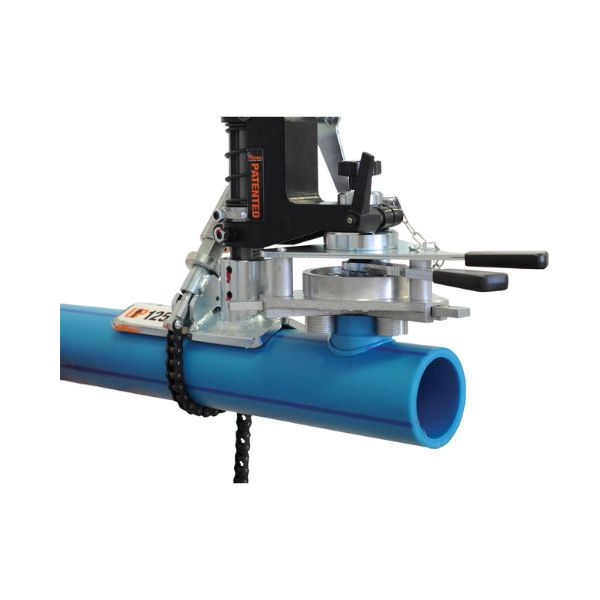

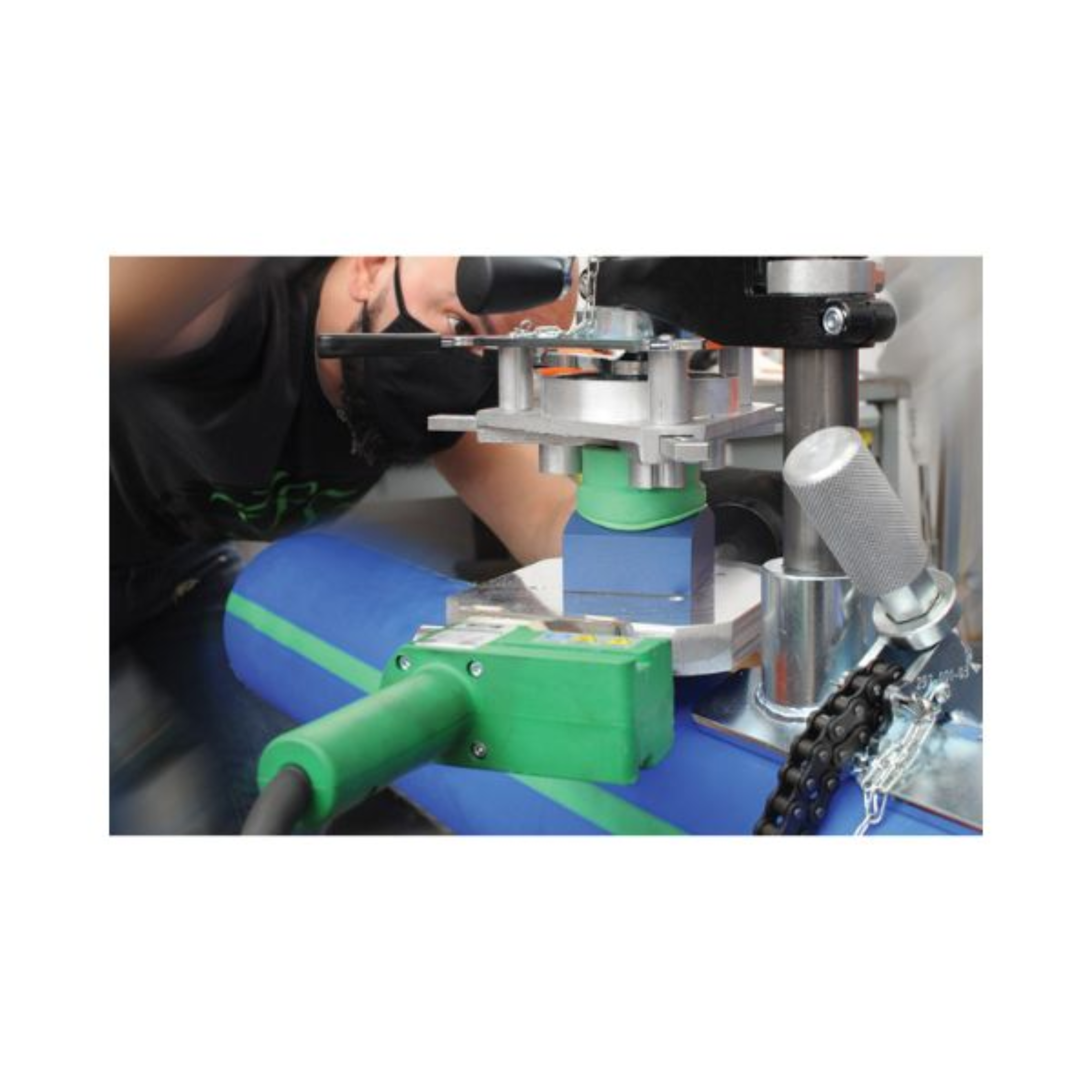

UP 125 is the new Ritmo welding machine for drilling and saddle socket welding on PP and PE pipes (Patent pending). The main pipe working range goes from Ø 63mm to 630 mm and is possible to weld saddle socket fittings from Ø 32mm to 125 mm. UP 125 is a welding machine that gives you the total control in all phases of work. The welding is performed by using a manual socket fusion heating plate and its Teflon coated saddle spigots. Manufacture collectors has never been that easy.

EASY TO USE
– Precise pipe marking system
– 360° working position on pipe
– Easy setting
– Secure fixing with anti-fall protections
– Handy
– Safe fitting lock

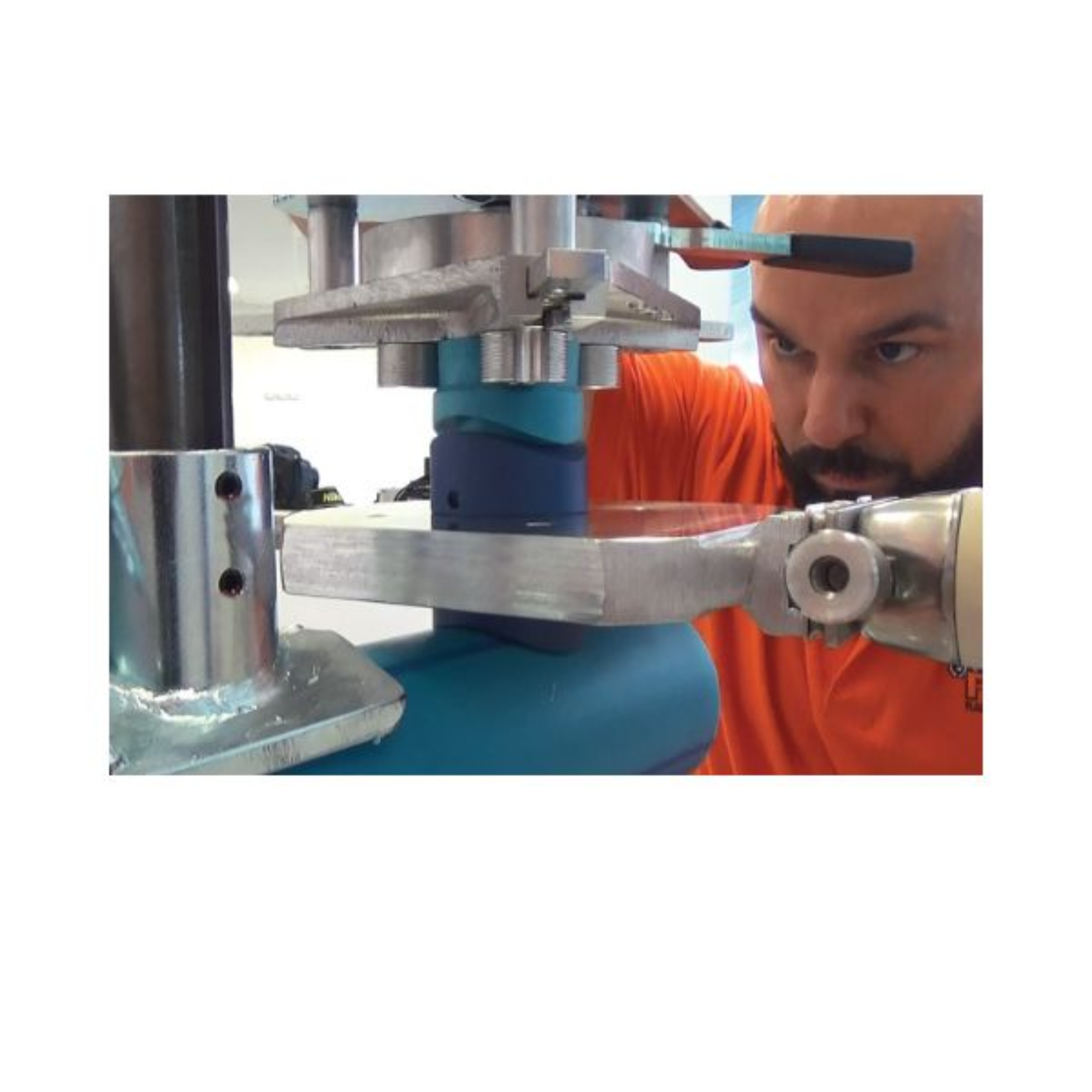

– Visual inspection of the welding area
– Assembled using few elements
– Lightweight

PRECISE
– Accurate centering of drilling area
– Drilling speed control
– Perfect 90° alignment of hole and fitting
– Adjustment of the fitting in three steps: positioning – heating – welding

UNIVERSAL
– Materials: PP, PE (and other thermoplastic materials)
– Multibrand pipes / fittings
– Main pipe from Ø 63 mm to 630 mm
– Branch pipe from Ø 32 mm to 125 mm

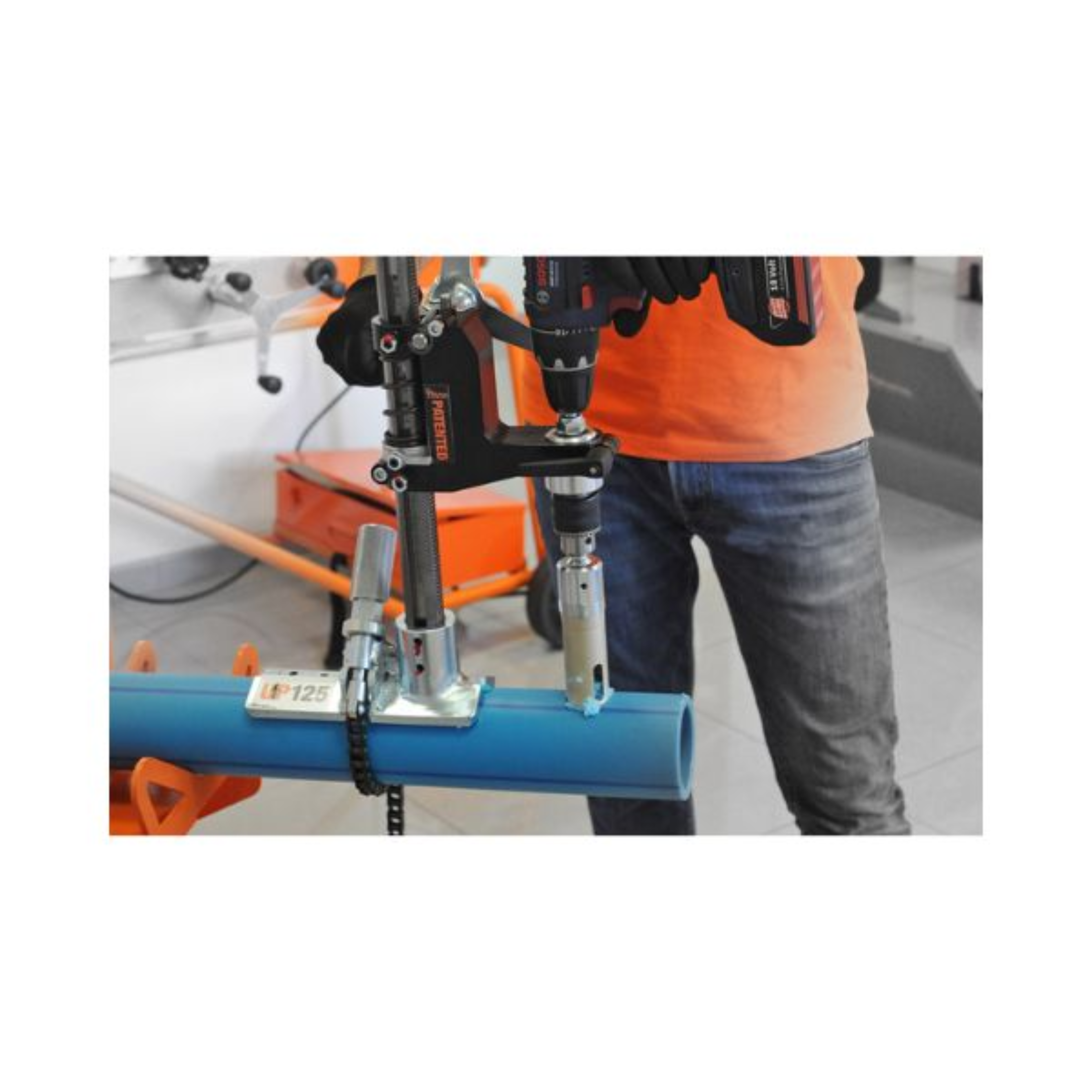

– Electric screwdriver or drill compatible
– Universal spindle for holesaws

STANDARD COMPOSITION
– Fixing column with handwheel and locking chain and chain extension
– Fitting holder
– Adapter for electric screwdriver drill
– Universal spindle for hole cutters
– Metric pipe marking system from Ø 63 to 250 mm
– Transport case
– Space bar with antistick protection

ON REQUEST
Metric pipe marking system from Ø 63 to 630 mm

COMPLEMENTARY PRODUCTS
– Socket Fusion Plate R 125Q TFE 230 V o 110 V, Tools and Steel case for Socket Fusion Plate R 125Q TFE
– Second Handle for Socket Fusion Plate R 125Q TFE
– Saddle Sockets M/F up to Ø 125
– Drill Bits from Ø 20/25 to 125 mm
– Pipe Support from Ø 40 to 400 mm
