ALIGNER 63

Aluminum aligner for Ø63 mm pipes, 45°–90° fixed joints

Other Variants

160 light 63-180 125-500 Rerounder 63

Applications

Pipe welding,

Enquire Now Download Brochure

Description

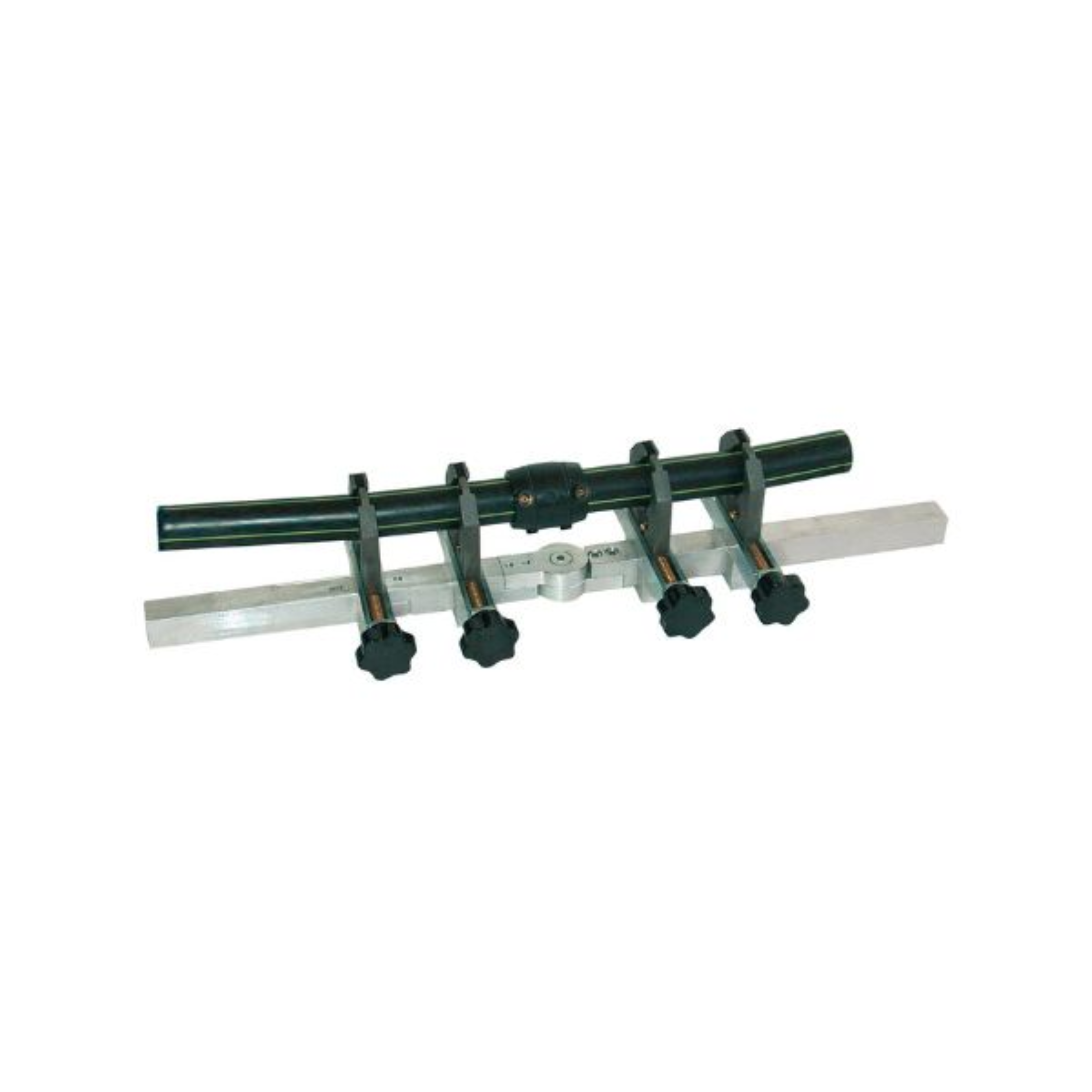

UNIVERSAL ALIGNER 63: professional tool is essential to hold pipes still and aligned during electrofusion.

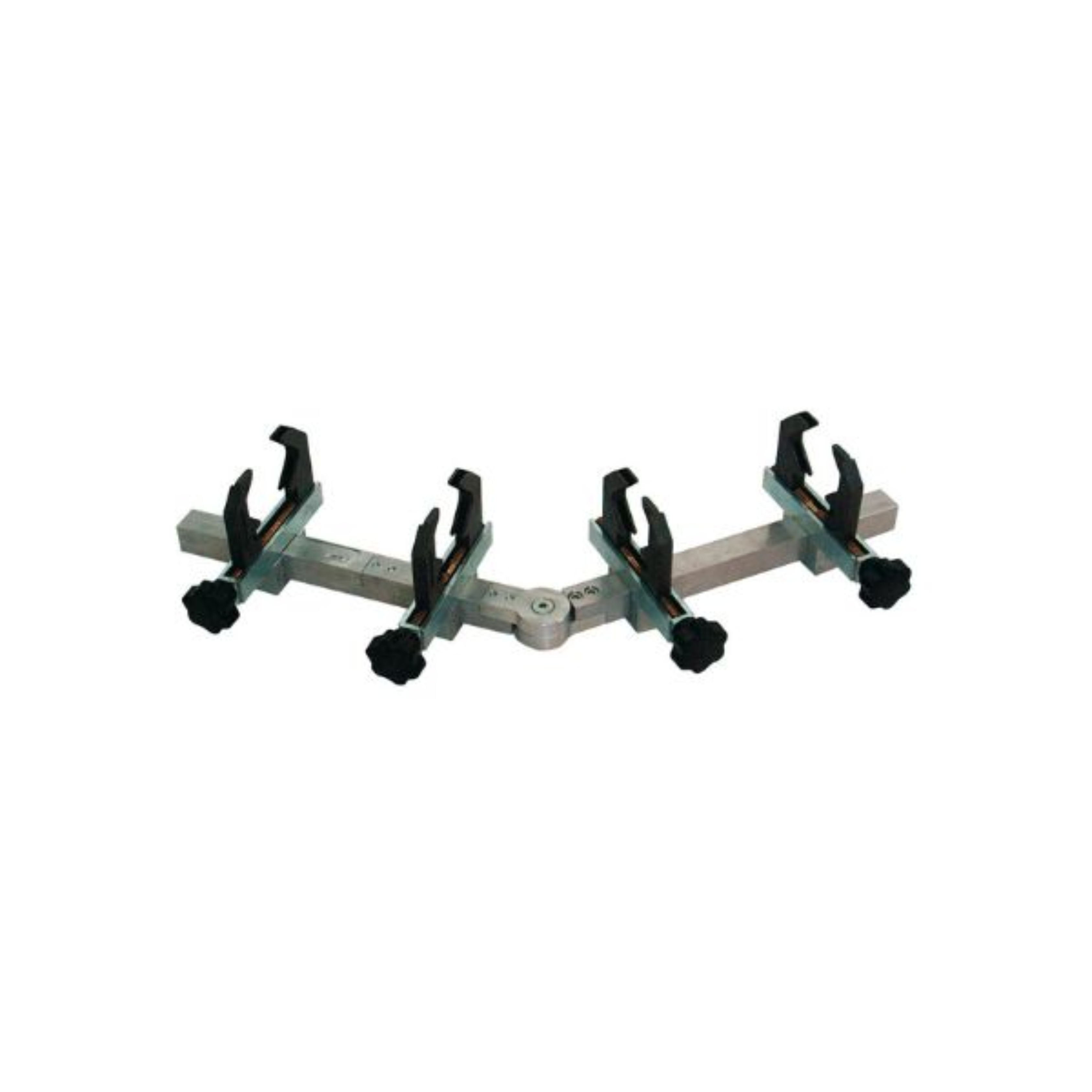

The UNIVERSAL ALIGNER 63 is made almost entirely in a special Aluminium alloy and features a central joint for the fixed positions at 45° and 90°, four self-centring clamps that require no adapters.
The possibility to remove one part of the axis that carries the clamps and one clamp it self, allows the use of tapping tees during the fusion.

STANDARD COMPOSITION
– Aligner complete with four clamps, service spanner and transport bag

Technical features

Working range	Ø 20 ÷ 63 mm
Maxi overall dimensions	600 x 160 x 116 mm
Transport bag	440 x 190 x 140 mm
Weight aligner	3,40 Kg
Weight bag	0,5 Kg
