Butt Fusion Welding Machines

Basic 160

Butt welding unit Ø40–160mm with digital plate, milling cutter & fast couplings.

Other Variants

Basic 200 Basic 250 Basic 315 Basic 355 Delta 500 Delta 630 Delta 800 Delta 1000 Delta 1200 Delta 1600 1600 ECO

Applications

Pipe welding,
Enquire Now Download Brochure
Description

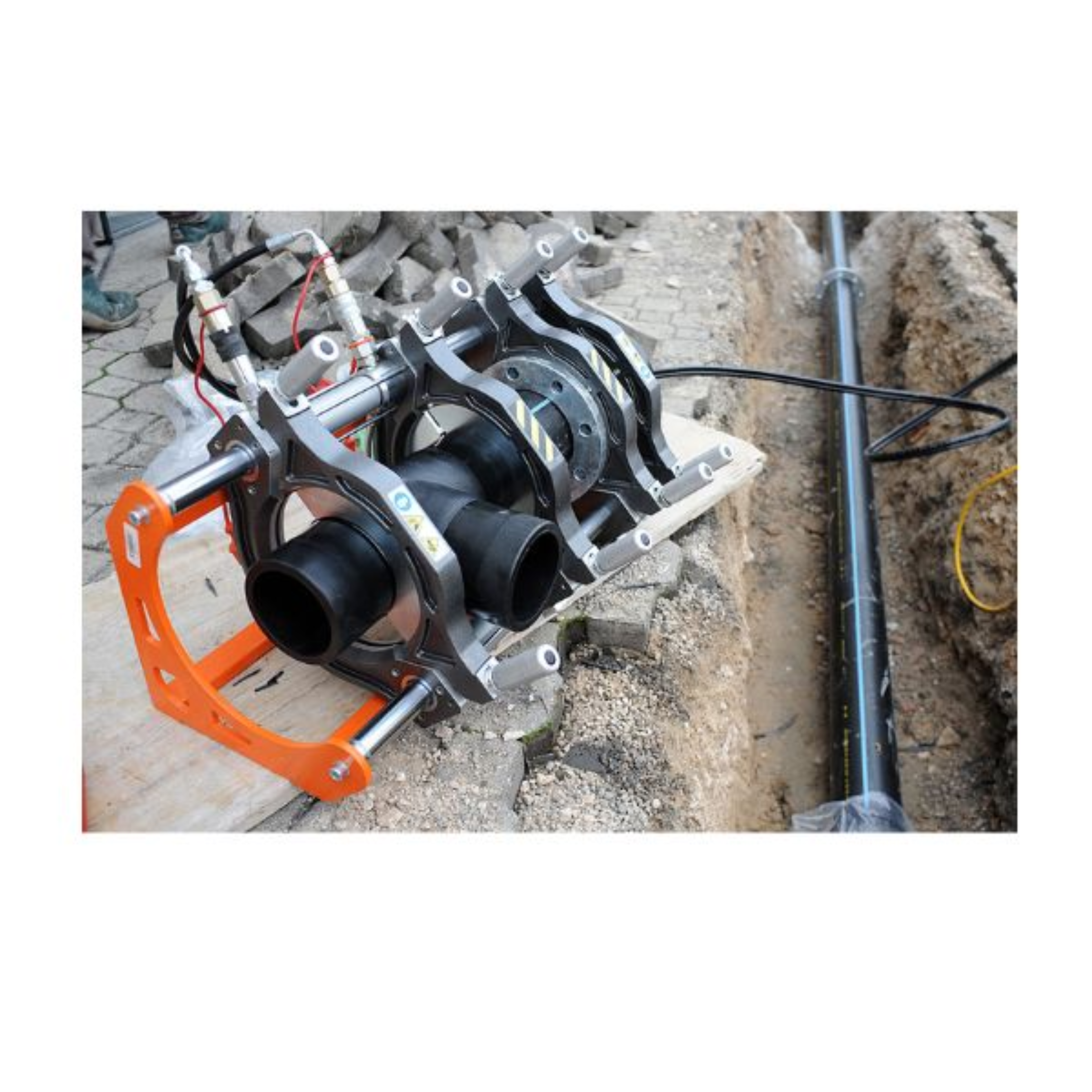

BASIC 160 is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate with DIGITAL DRAGON, high – precision electronic thermo-regulator
– An extractable milling cutter, with safety micro-switch
– An electrohydraulic gearcase, with a clamp opening and closing lever
– A hydraulic hoses with non – drip quick couplings
– Adapters from Ø 40 to 140 mm


ON REQUEST (ACCESSORIES)
– Trolley
– Rollers
– THE INSPECTOR Data-logging
– Pre-insulated bag for heating plate
Technical features
Materials HDPE – PP – PB – PVDF
Working range Ø 40 ÷ 160 mm
Power supply 110 V or 230 VAC 50/60 Hz
Total absorbed power 2400 W (110 V) – 2250 W (230 V)
Working temperature 180° ÷ 280° C
Pressure working range 0 ÷ 150 bar
Weight only body machine 32 Kg
Dimension 606x365x375 mm
