Butt Fusion Welding Machines

Basic 315

Basic 315 Easy Life: Ø90–280mm welding with digital control and 4000-weld memory.

Other Variants

Basic 160 Basic 200 Basic 250 Basic 355 Delta 500 Delta 630 Delta 800 Delta 1000 Delta 1200 Delta 1600 1600 ECO

Applications

Pipe welding,

Enquire Now Download Brochure

Description

BASIC 315 is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

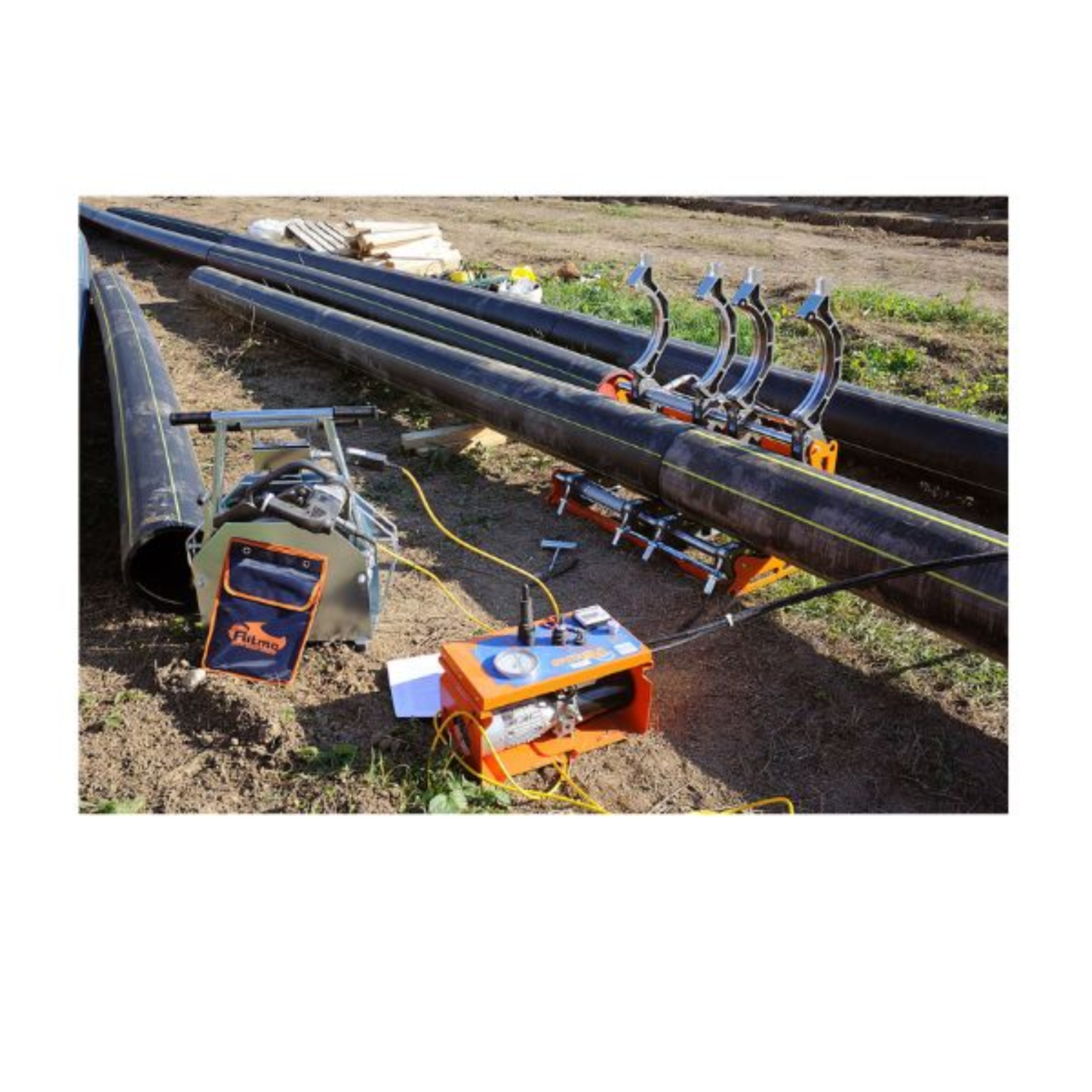

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate with DIGITAL DRAGON, high – precision electronic thermo-regulator
– An extractable milling cutter, with safety micro-switch
– An electrohydraulic gearcase, with a clamp opening and closing lever
– A hydraulic hoses with non – drip quick couplings
– Adapters SMARTLocK from Ø 90 to 280 mm, Master adapters Ø 250 mm

Patent by Ritmo
EP1743741 B1 – US 7334785

ON REQUEST (ACCESSORIES)
– Tool for flange necks
– Trolley
– Rollers
– THE INSPECTOR Data-logging

Technical features

Materials	HDPE/PP/PB/PVDF
Working range	Ø 90 ÷ 315 mm
Power supply	110 V; 230 V 50/60 Hz
Total absorbed power	3900 W (110 V) 4500 W (230 V)
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	86 Kg
Dimension	981x586x520 mm
