Description

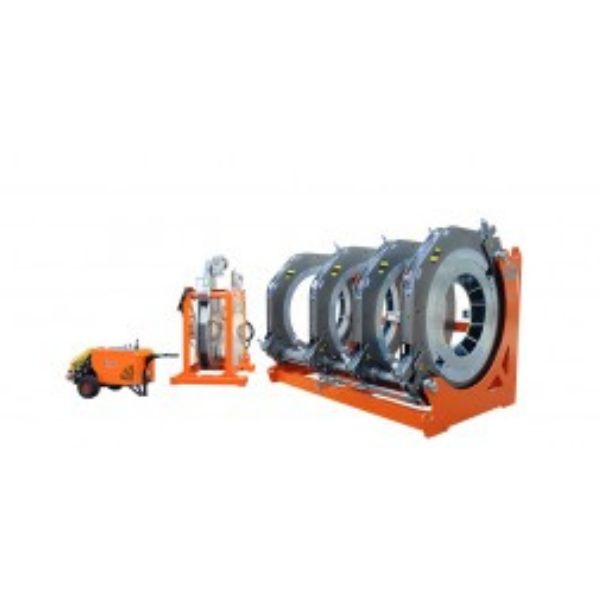

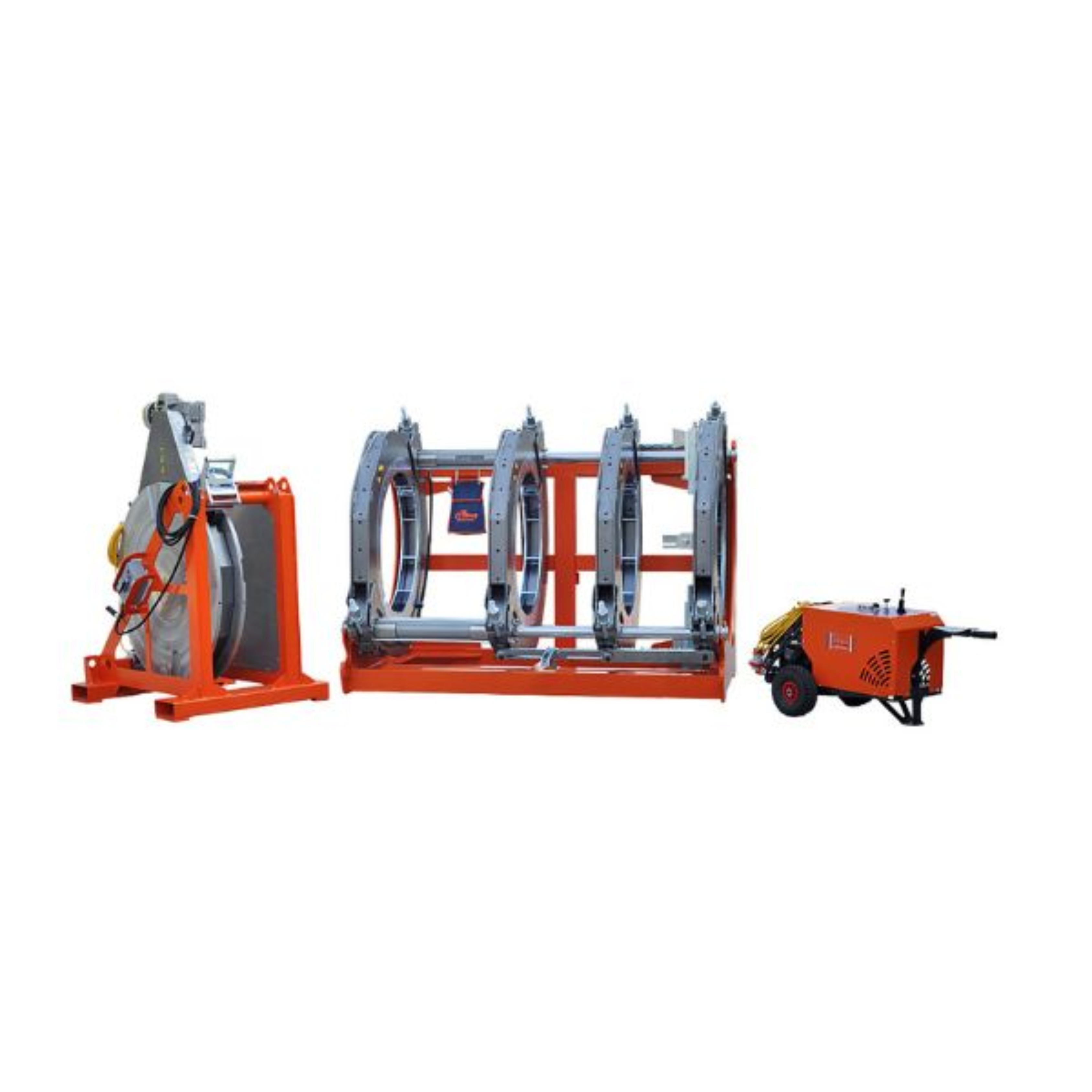

DELTA 1200 can weld fittings such as elbows, tees, wyes and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fitting have to be locked in the 4th clamp. Short neck stub ends can be welded with the help of a special tool (on request).

– A machine body with a steel bearing frame
– Clamps and inserts in steel
– Self detaching device: helps removing the heating plate during welding procedure
– An extractable heating plate with separate thermometer for reading the working temperature
– An extractable electric milling cutter with: Self detaching device, a safety microswitch and overload cutout
– An electrohydraulic gearcase
– Digital electric connections box with the temperature controller
– A milling cutter/heating plate support

ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 710 to 1100 mm; Master 1000 mm; 28″ IPS ÷ 48″ IPS
– Tool for flange necks
– Electrical crane
– Machine body trolley
– Data-logging THE INSPECTOR
– Rollers

Technical features

Materials	HDPE/PP
Working range	Ø 710 ÷ 1200 mm 28 IPS ÷ 48″ IPS
Power supply	400 V Three phase 50/60 Hz
Total absorbed power	28200 W
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 250 bar
Weight only body machines	2500 Kg
Dimension	2465x1870x1900 mm
