Butt Fusion Welding Machines

Basic 200

Semi-auto butt welder Ø63–180mm with 4000-weld log, USB export & digital control.

Other Variants

Basic 160 Basic 200 Basic 315 Basic 355 Delta 500 Delta 630 Delta 800 Delta 1000 Delta 1200 Delta 1600 1600 ECO

Applications

Pipe welding,
Enquire Now Download Brochure
Description
BASIC 200 is able to weld fittings such as elbows, tees, Y-branches and flange necks without any additional equipment by simply fixing the clamps’ drag bar.

– A machine body with 4 clamps and 2 hydraulic cylinders with fast non-drip couplings
– An extractable heating plate with DIGITAL DRAGON, high – precision electronic thermo-regulator
– An extractable milling cutter, with safety micro-switch
– An electrohydraulic gearcase, with a clamp opening and closing lever
– A hydraulic hoses with non – drip quick couplings
– Adapters from Ø 63 to 180 mm


ON REQUEST (ACCESSORIES)
– Tool for flange necks
– Trolley
– Rollers
– THE INSPECTOR Data-logging
– Pre-insulated bag for heating plate
Technical features
Materials HDPE – PP – PB – PVDF
Working range Ø 63 ÷ 200 mm
Power supply 110 V; 230 V 50/60 Hz
Total absorbed power 3250 W
Working temperature 180° ÷ 280° C
Pressure working range 0 ÷ 150 bar
Weight only body machine 39 Kg
Dimension 685x460x420 mm

Related Products

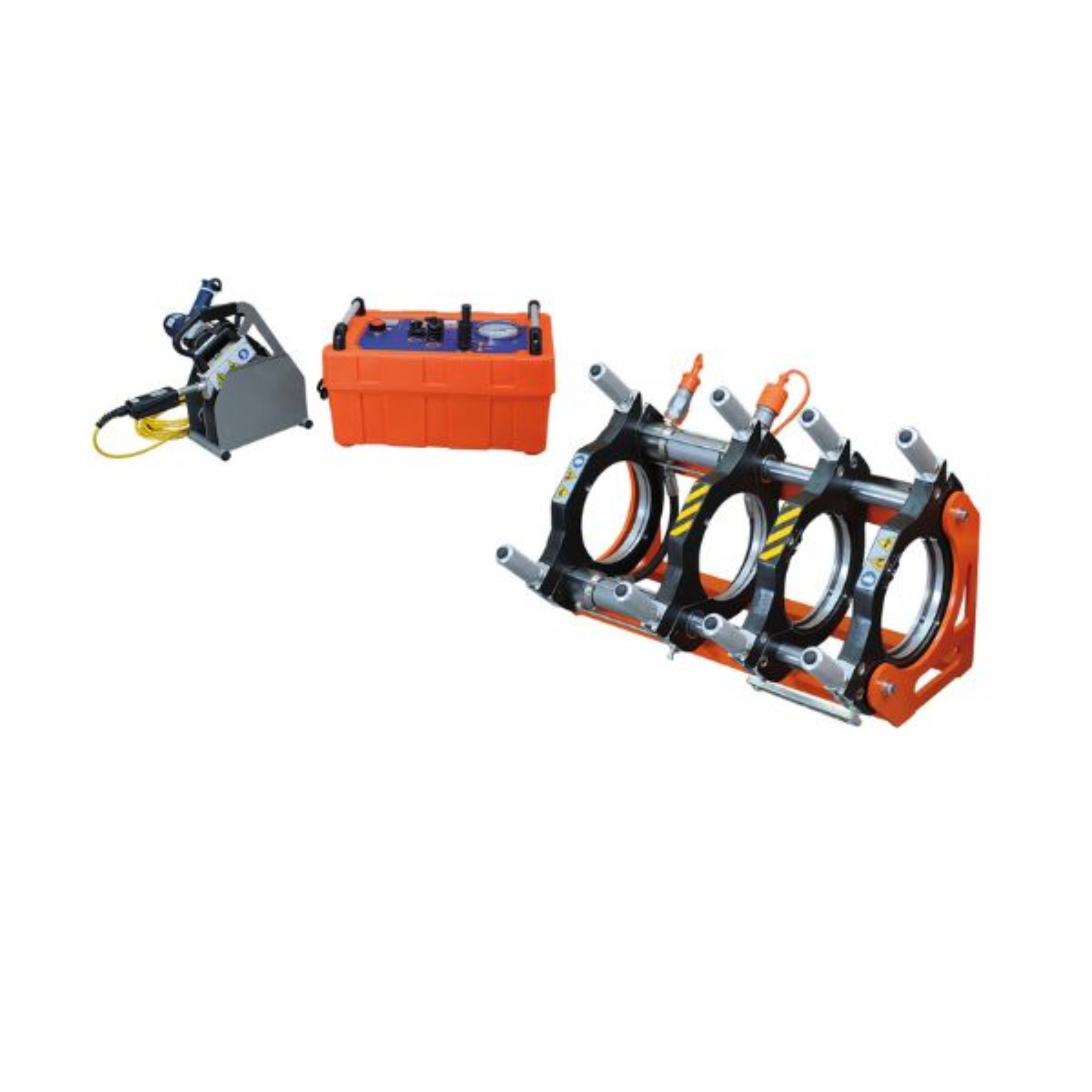

Basic 160
Basic 160

Butt welding unit Ø40–160mm with digital plate, milling cutter & fast couplings.

Read More
Enquire Now
Basic 200
Basic 200

Semi-auto butt welder Ø63–180mm with 4000-weld log, USB export & digital control.

Read More
Enquire Now

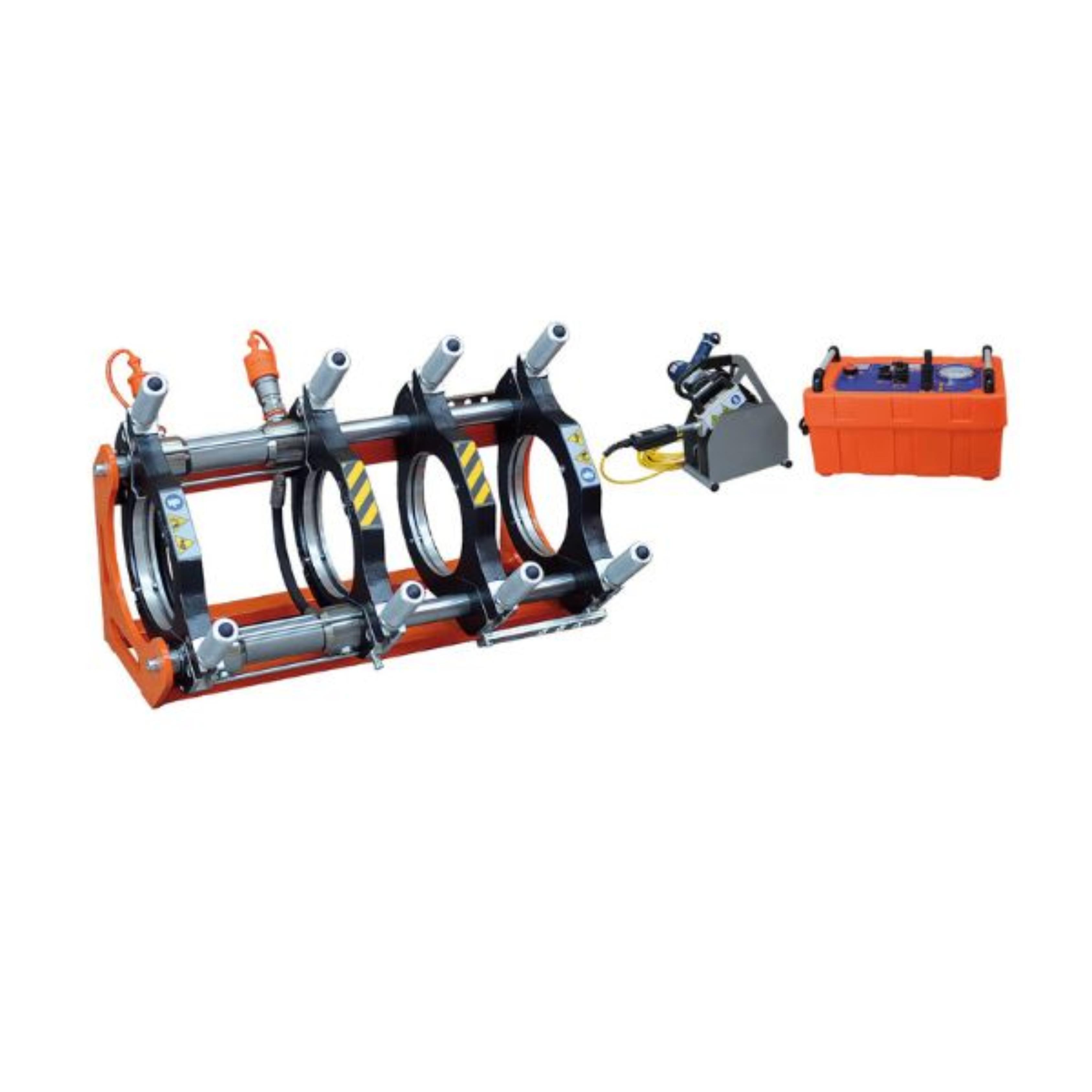

Basic 315
Basic 315

Basic 315 Easy Life: Ø90–280mm welding with digital control and 4000-weld memory.

Read More
Enquire Now
Basic 355
Basic 355

Butt fusion welder Ø125–315mm with semi-auto cycle, USB reports, and 50 presets.

Read More
Enquire Now
Delta 500
Delta 500

Delta 500 Easy Life: auto-controlled welding with clamp-slide for complex fittings

Read More
Enquire Now

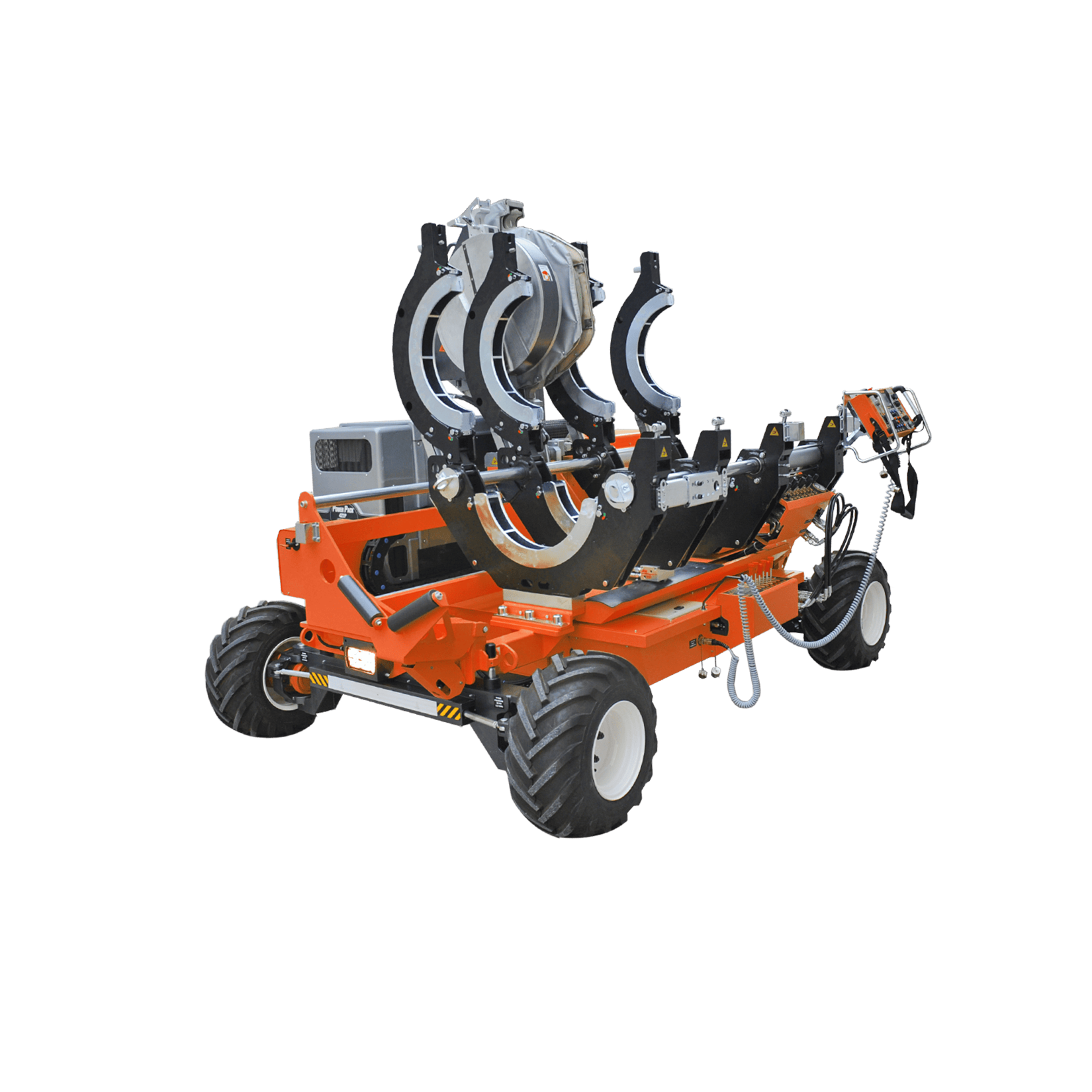

Delta 630
Delta 630

Trailer-mounted fusion welder Ø630mm with EASY LIFE, GPS, and 4000-weld logging

Read More
Enquire Now
Delta 800
Delta 800

Efficient HDPE butt fusion welder (Ø500–800 mm) with EASY LIFE control system.

Read More
Enquire Now

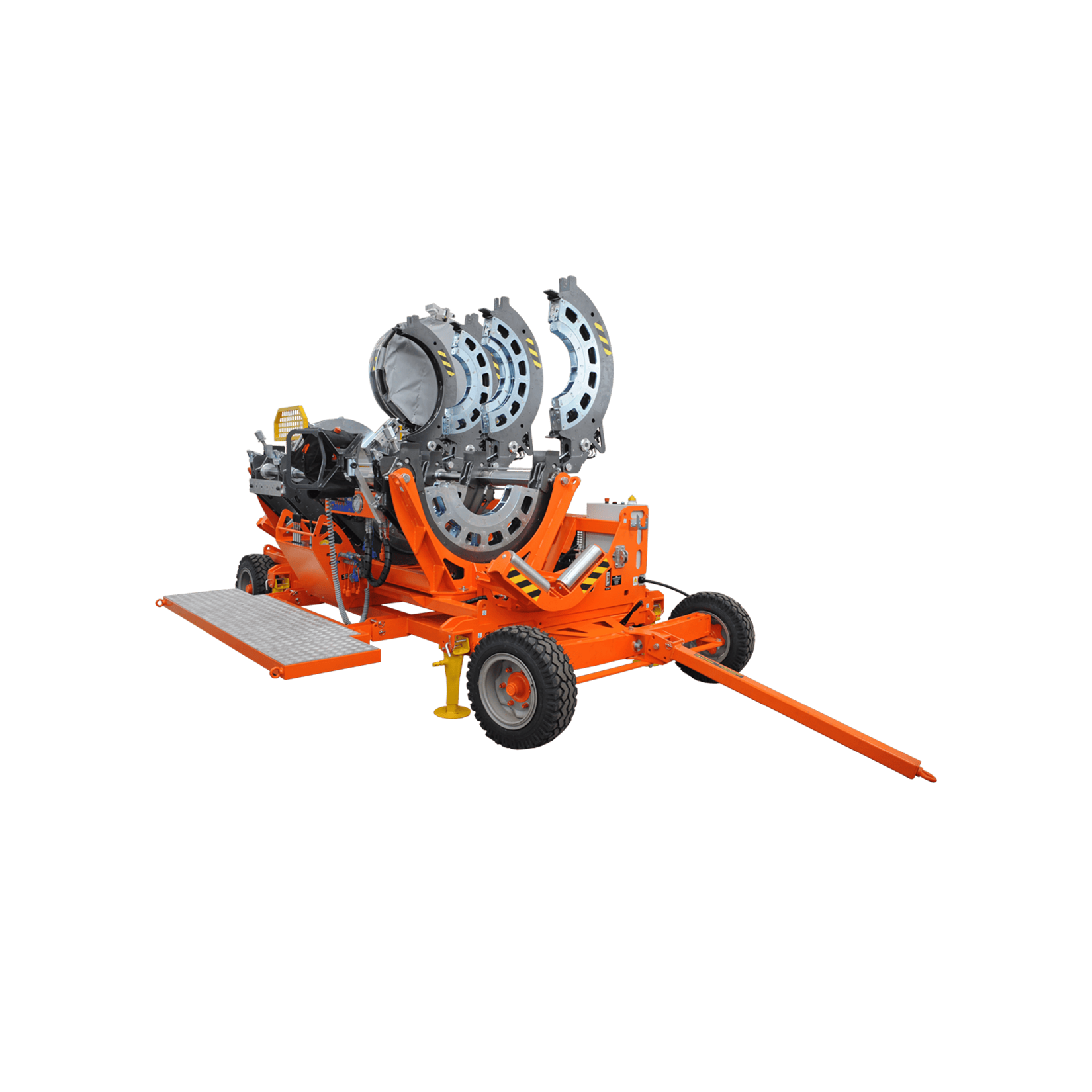

Delta 1000
Delta 1000

High-pressure fusion machine (Ø630–1000 mm) with automatic temperature control.

Read More
Enquire Now

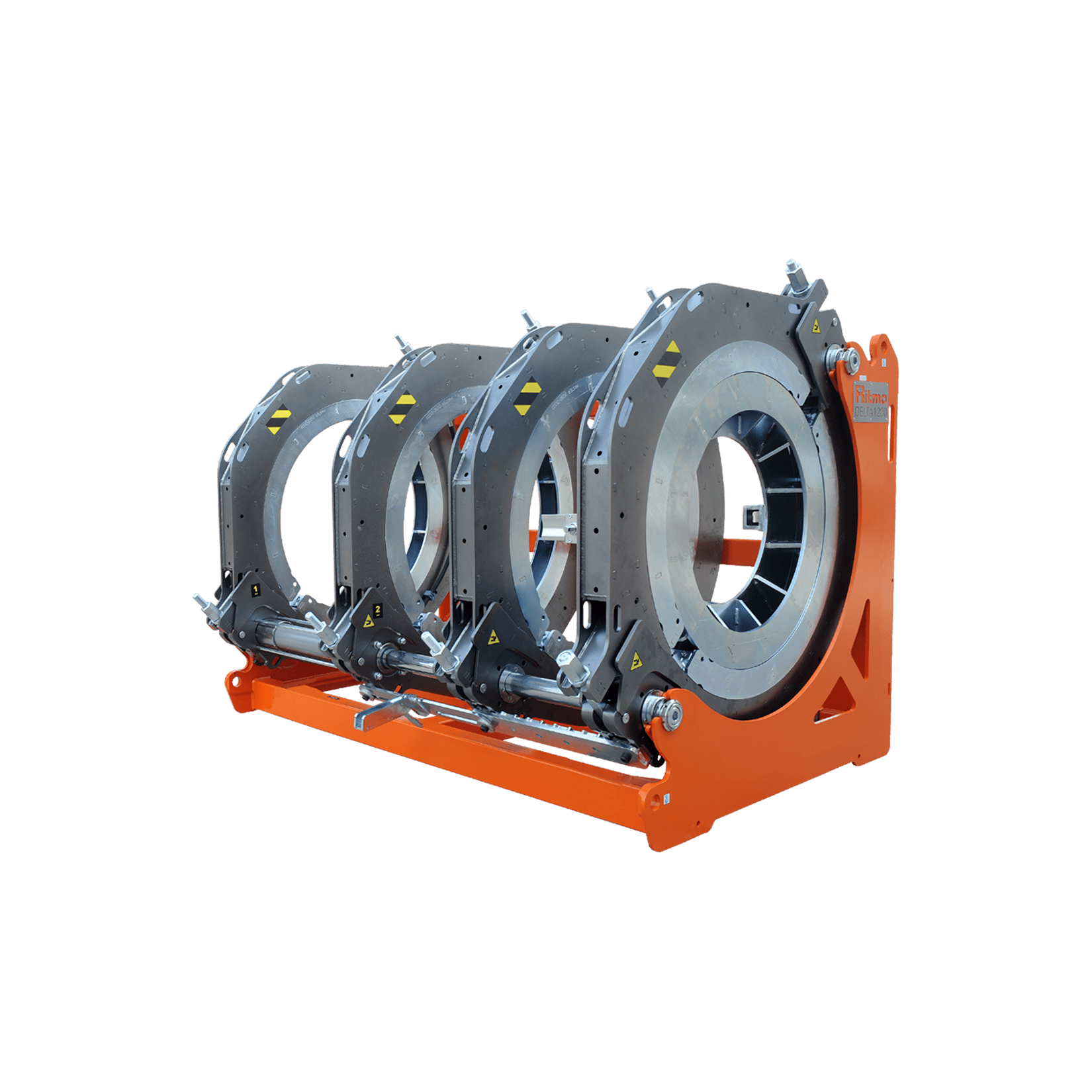

Delta 1200
Delta 1200

On-site heavy-duty fusion welder (Ø710–1200 mm) with overload-protected facer.

Read More
Enquire Now

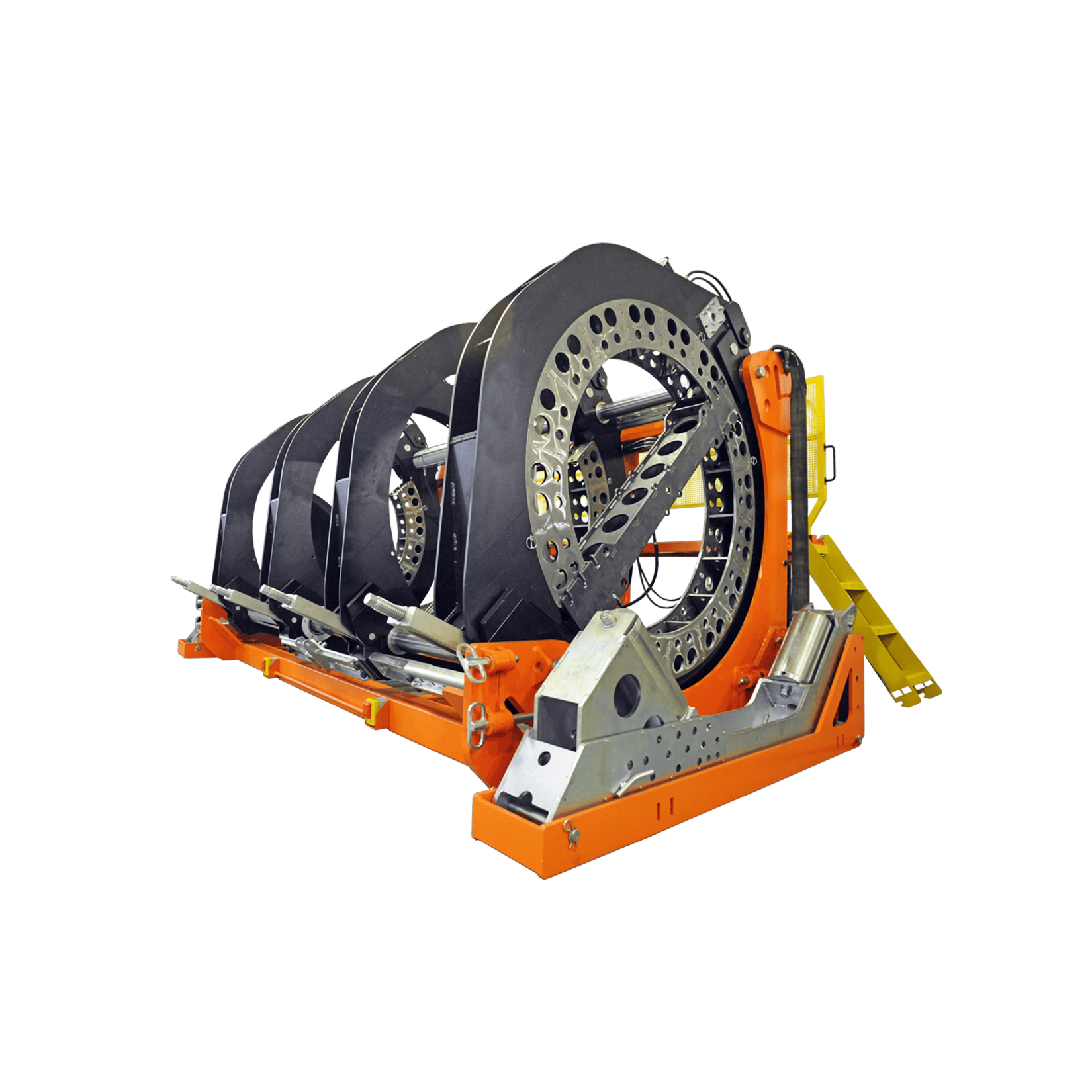

Delta 1600
Delta 1600

Heavy-duty HDPE fusion welder (Ø900–1600 mm) with full hydraulic control.

Read More
Enquire Now

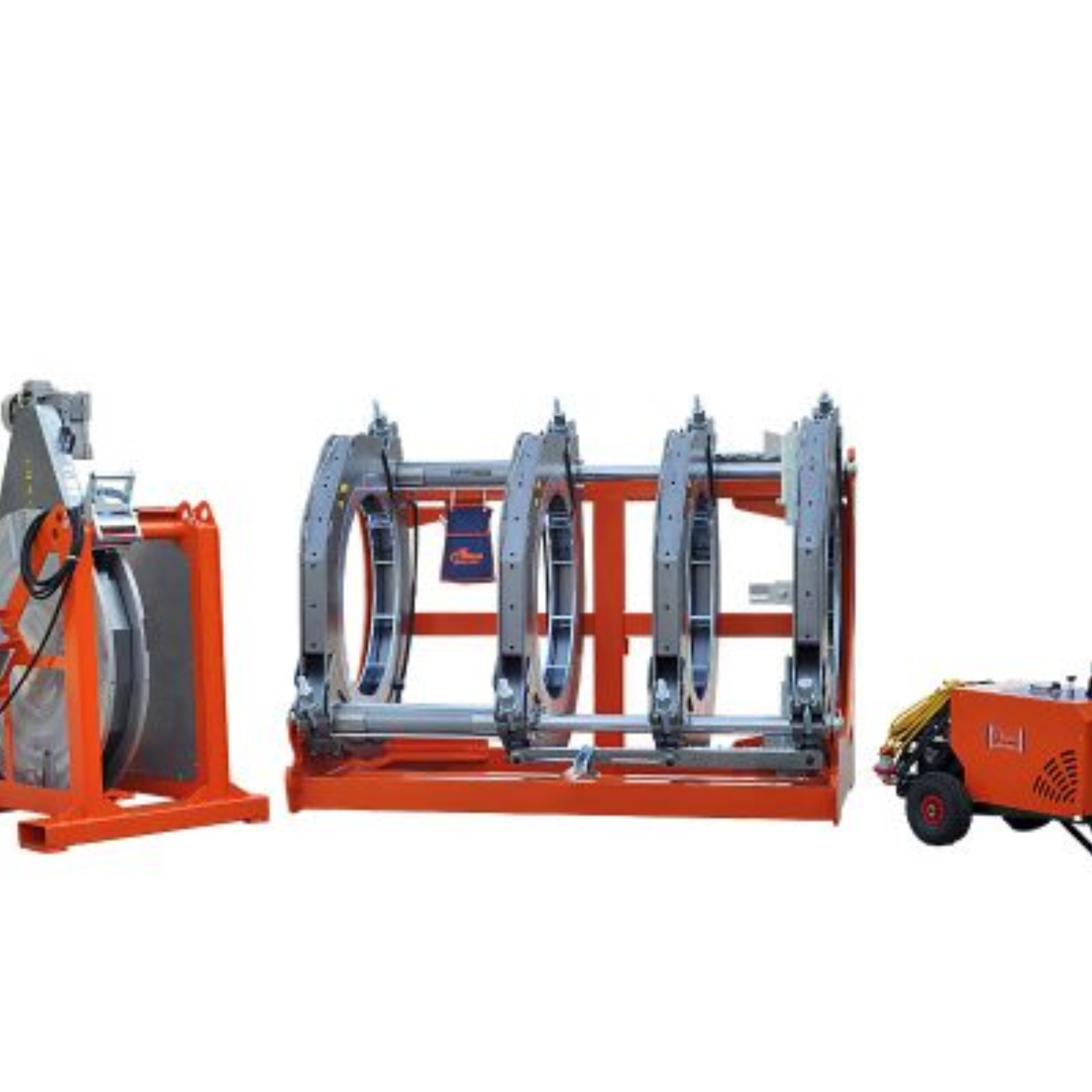

Delta 1600 ECO
