Description

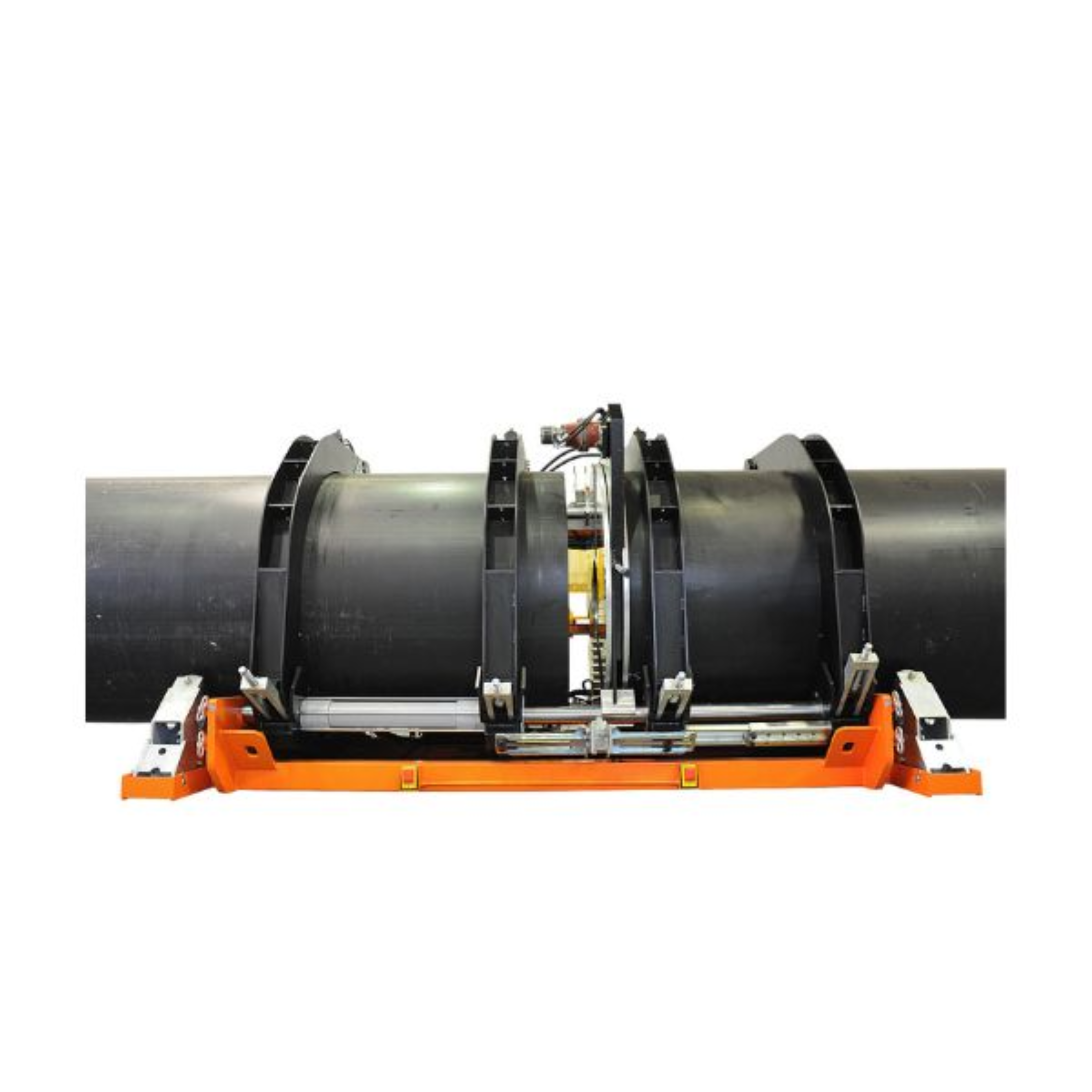

DELTA 1600 HDR is a self-aligning welding machine with hydraulic clamps suitable for welding HDPE pipes for the transport of water and other fluids under pressure, up to Ø 1600 mm. The DELTA 1600 is designed in accordance to International standards (UNI 10565, ISO 12176-1). The DELTA 1600 can weld fittings such as elbows, tees, branches and flange necks.

– Robust machine body made of steel

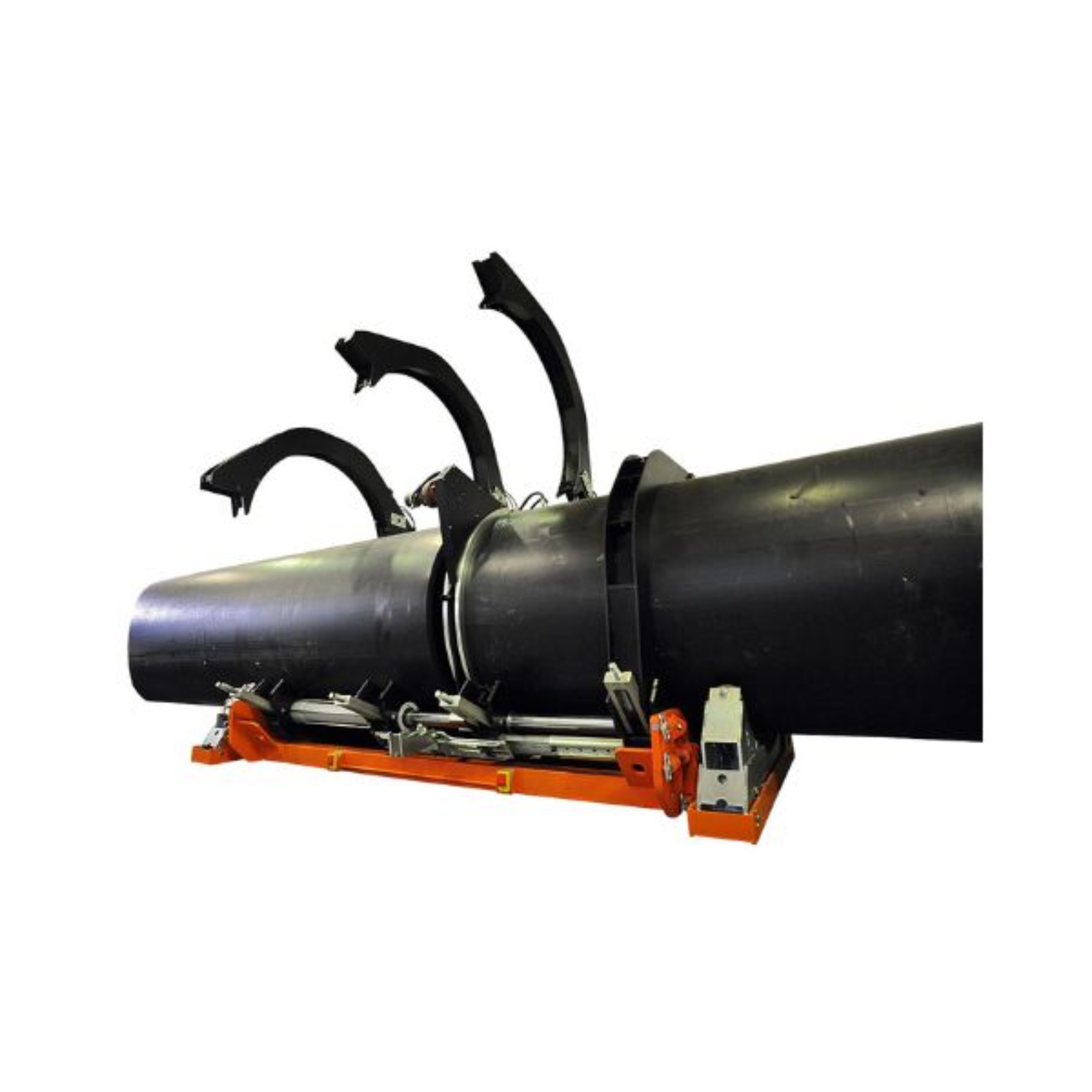

– Steel hydraulic clamping
– Automatic detaching device of heating plate
– Raised platform deck for perfect monitoring of fusion process

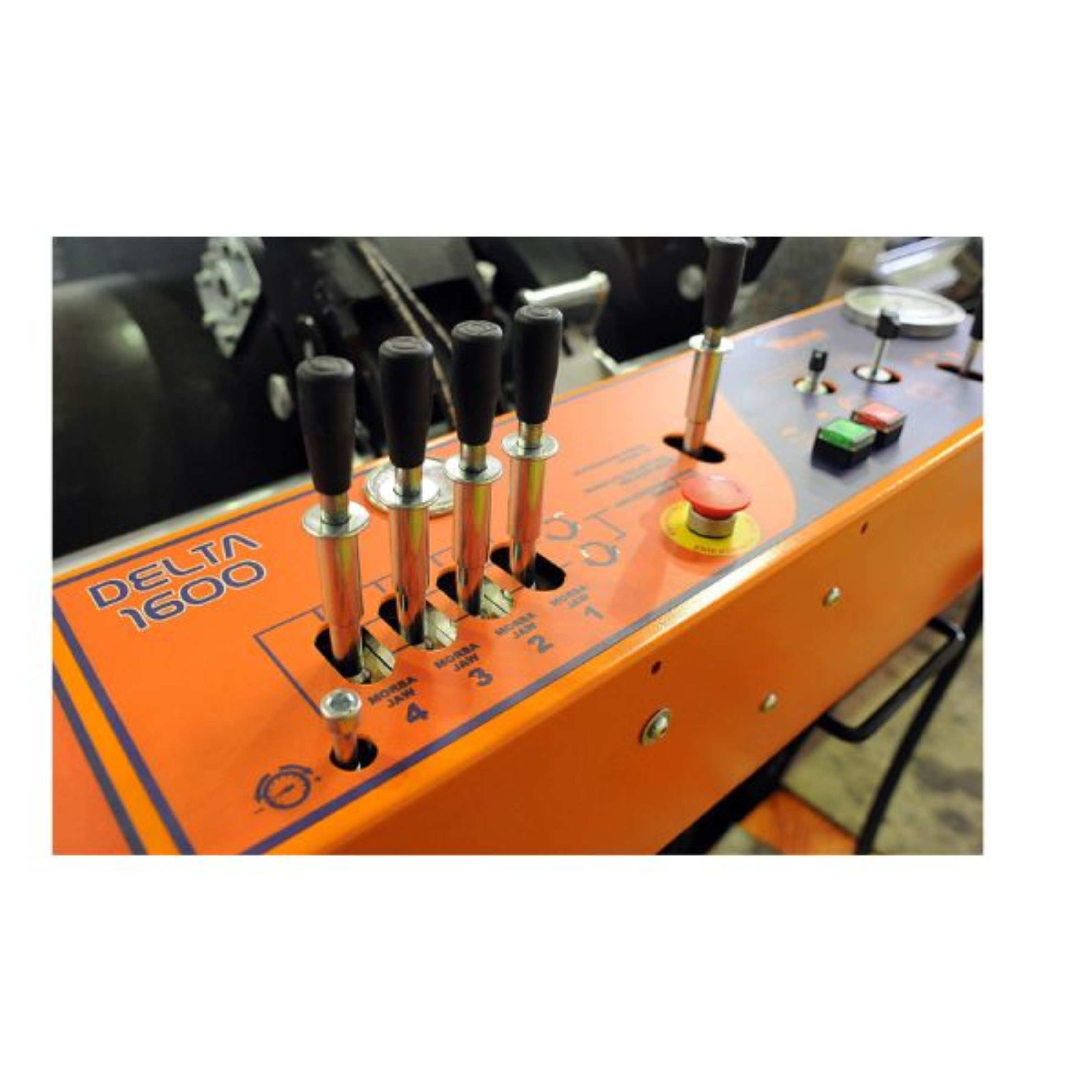

– Easy to operate control panel
– INSPECTOR data logger compatible
– On board hydraulic control gearcase
– Pressure adjustment and pressure release valves for easy operations

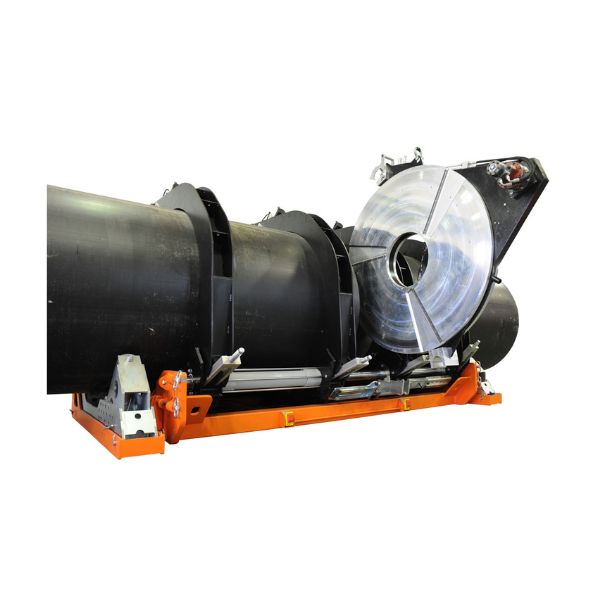

– Hydraulically controller facer with safety microswitch
– Teflon coated heating plate with indipendent thermometer

ON REQUEST (ACCESSORIES)
– Hydraulic pipe lift rollers
– 4 wheeled trolley with extendable levellers for stabilization
– THE INSPECTOR data logging
– Steel inserts
– Electrical crane

Technical features

Materials	HDPE/PP
Working range	Ø 800 ÷ 1600 mm
Power supply	400 V Three phase 50/60 Hz
Total absorbed power	45000 W
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	4800 Kg
Dimension	3550x2400X2550 mm
