Description

With DELTA 500 it is possible to weld fittings such as elbows, tees, wyes and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fitting have to be locked in the 4th clamp. Short neck stub ends can be welded with the help of a special tool (on request).
Available in 230 V and 400 V.

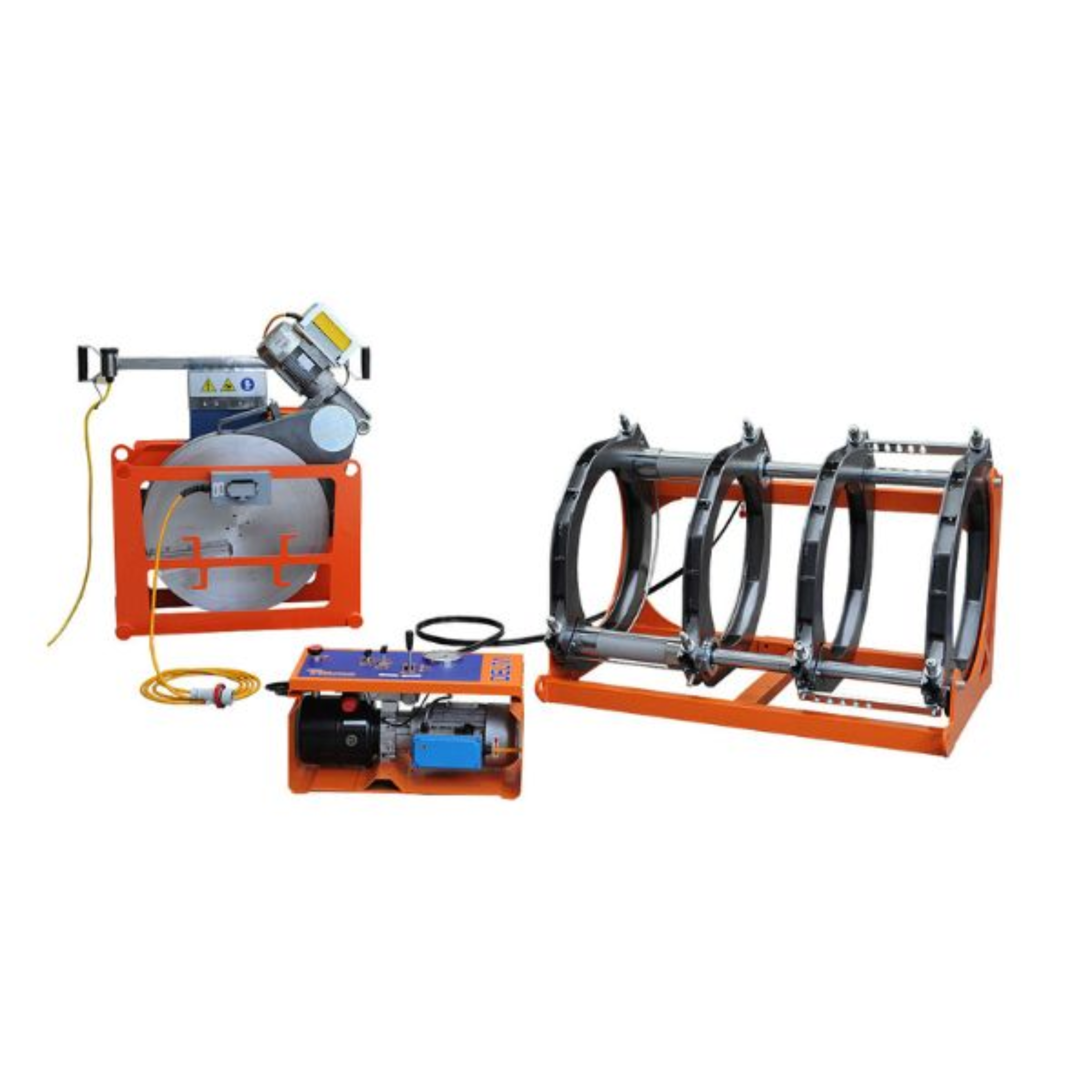

– A machine body with a steel bearing frame

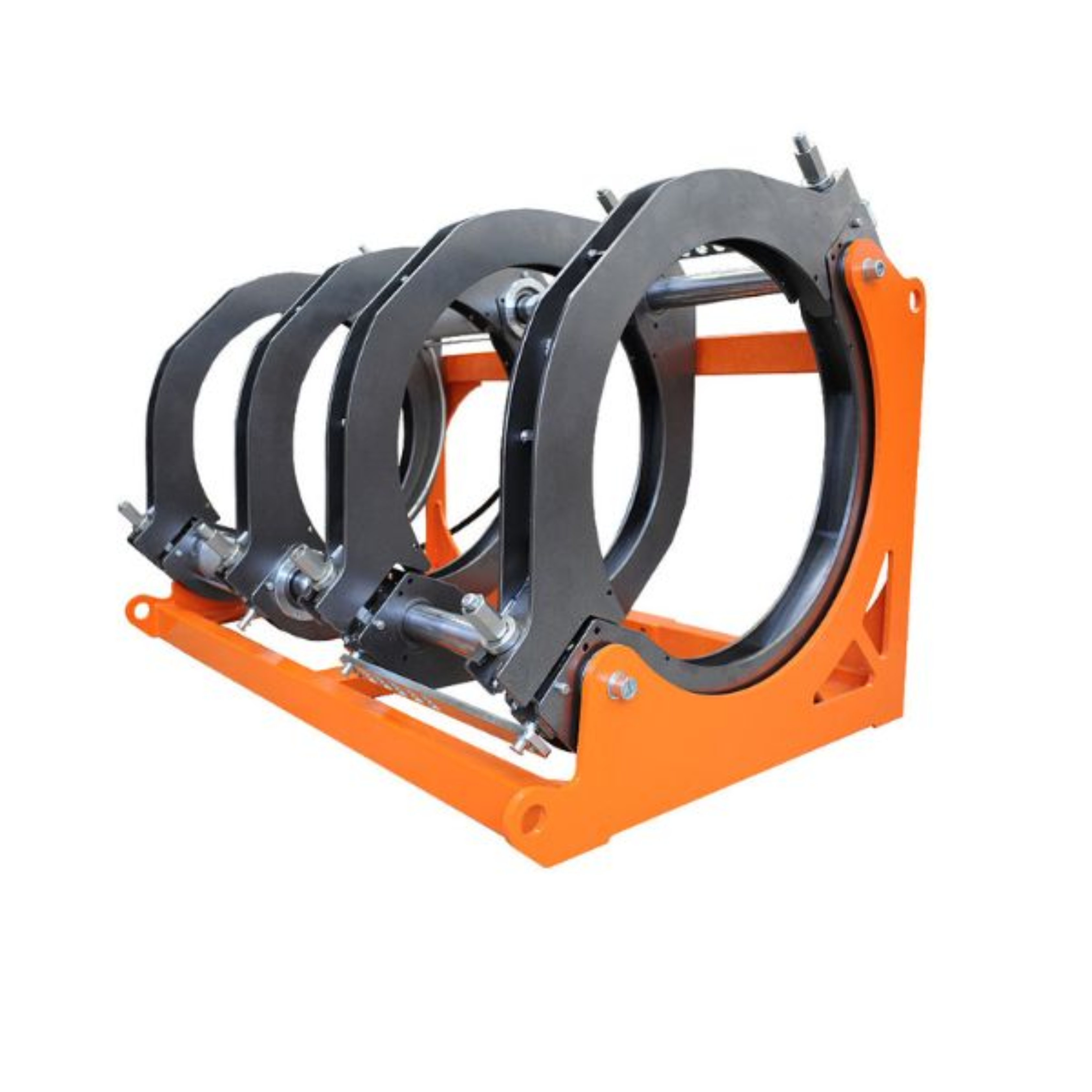

– Clamps in steel
– Insert in steel with quick locking/unlocking system. No tools required
– Self detaching device: helps removing the heating plate during welding procedure
– An extractable heating plate with separate thermometer for reading the working temperature
– An extractable electric milling cutter with a safety microswitch and overload cutout
– Milling cutter’s plastic control box is protected by a metal frame
– Unlocking Milling Cutter, fast removing system to speed up the extraction from machine body
– An electrohydraulic gearcase
– Digital electric connections box with the high precision (± 1°C) “Digital Dragon” temperature controller
– A milling cutter/heating plate support

ON REQUEST (ACCESSORIES)
– Clamps’ inserts from Ø 200 to 450 mm
– Tool for flange necks
– Electrical crane
– Special transport wooden case (DELTA 500 only)
– Special transport wooden case (machine body with trolley)
– Wooden case for inserts
– Machine body trolley
– Data-logging THE INSPECTOR
– Rollers

Technical features

Materials	HDPE/PP/PB/PVDF
Working range	Ø 200 ÷ 500 mm
Power supply	230 VAC 50/60 Hz; 400 V Three phase 50/60 Hz
Total absorbed power	7950 W (230 V); 7200 W (400 V)
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	230 Kg
Dimension	1265x790x780 mm
