Delta 1000

High-pressure fusion machine (Ø630–1000 mm) with automatic temperature control.

Other Variants

Basic 160 Basic 200 Basic 250 Basic 315 Basic 355 Delta 500 Delta 630 Delta 800 Delta 1200 Delta 1600 1600 ECO

Applications

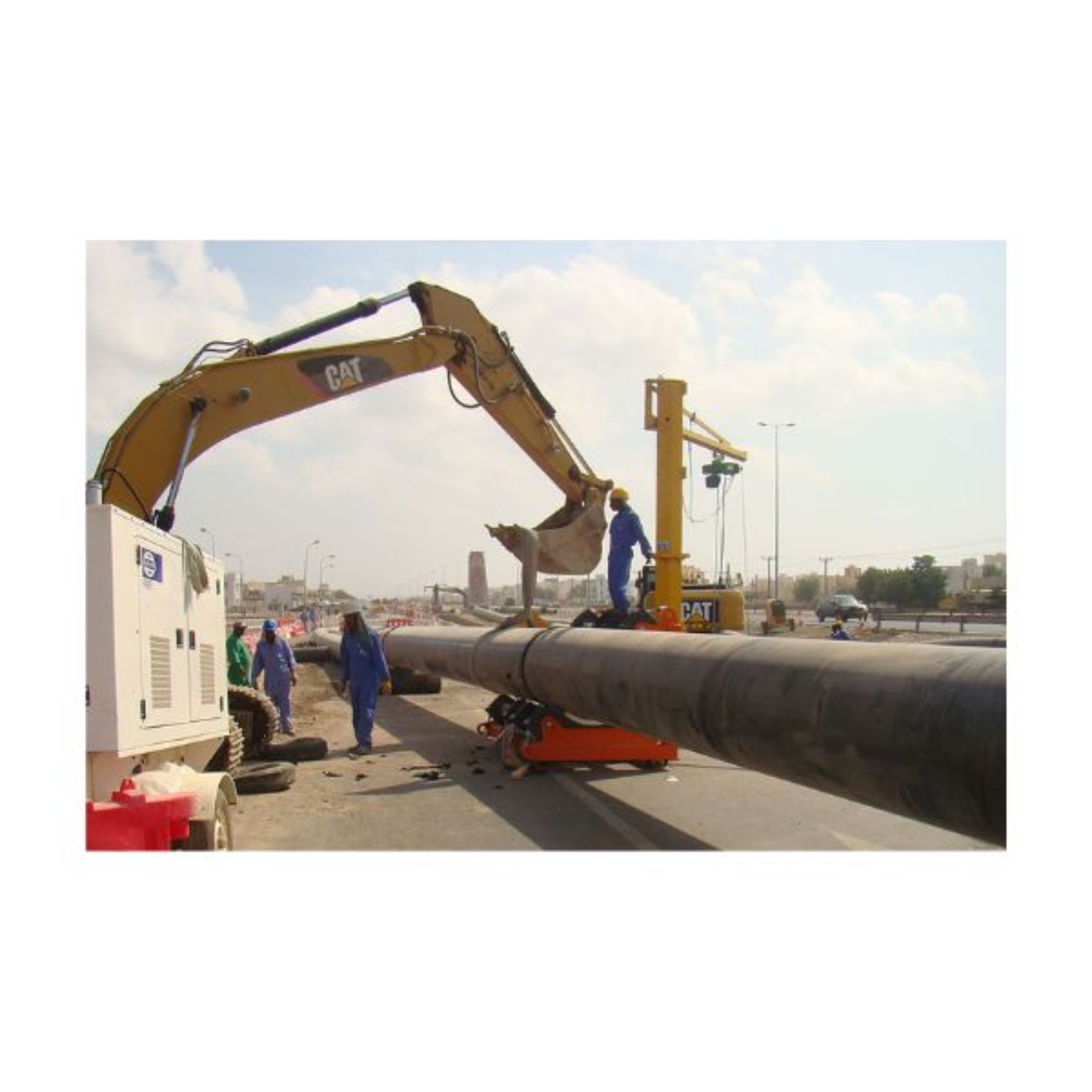

Pipe welding,

Enquire Now Download Brochure

Description

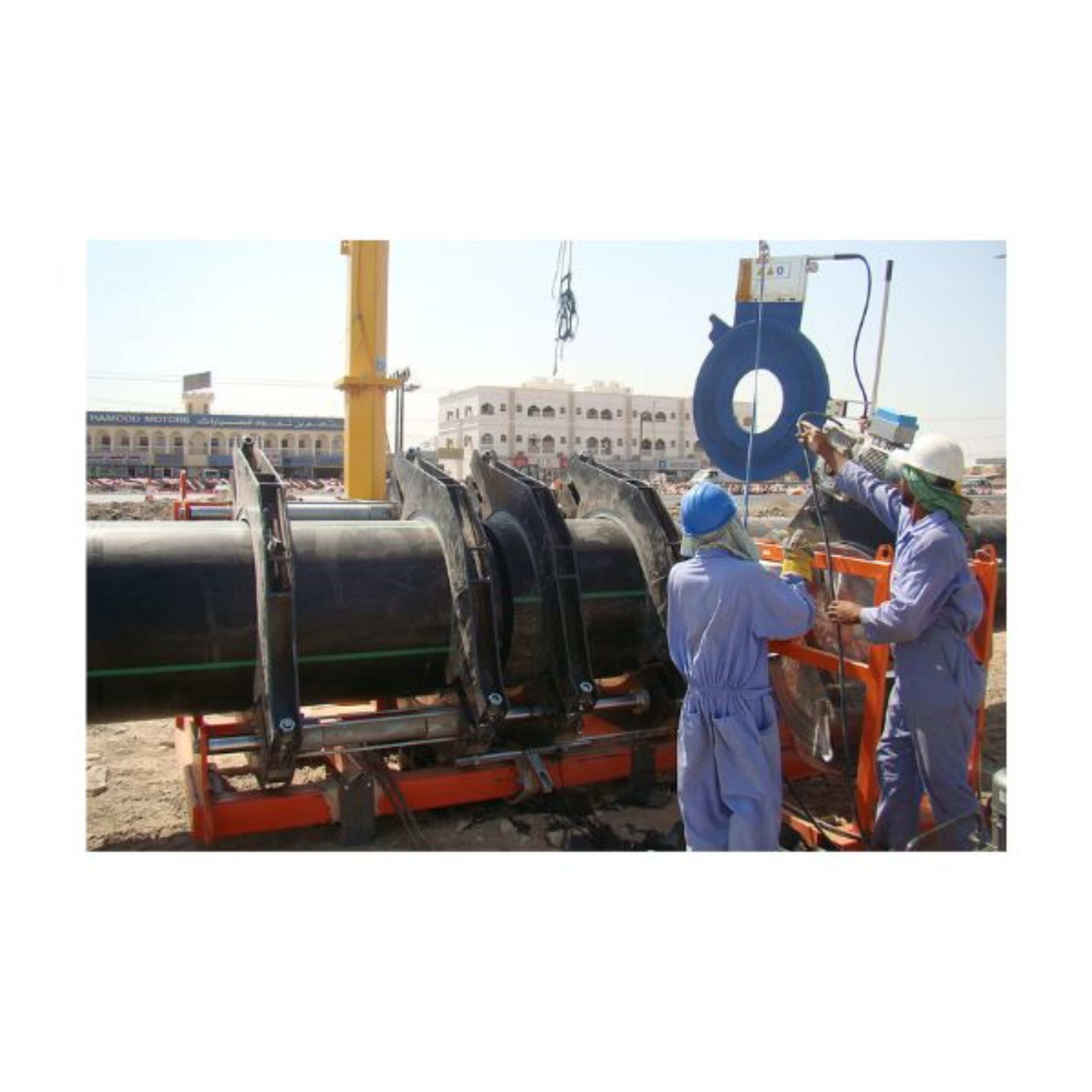

DELTA 1000 can weld fittings such as elbows, tees, wyes and stub ends. This is possible because the 3rd clamp can be anchored to the 1st and 2nd (movable) and slide along with the pipe. The fitting have to be locked in the 4th clamp. Short neck stub ends can be welded with the help of a special tool (on request).

A machine body with a steel bearing frame
Clamps and inserts in steel
Self detaching device: helps removing the heating plate during welding procedure
An extractable heating plate with separate thermometer for reading the working temperature
An extractable electric milling cutter with a safety microswitch and overload cutout
An electrohydraulic gearcase
An electrical panel with power outlet for the heating plate and crane
A milling cutter/heating plate support
ON REQUEST (ACCESSORIES)

Clamps’ inserts from Ø 630 to 900 mm

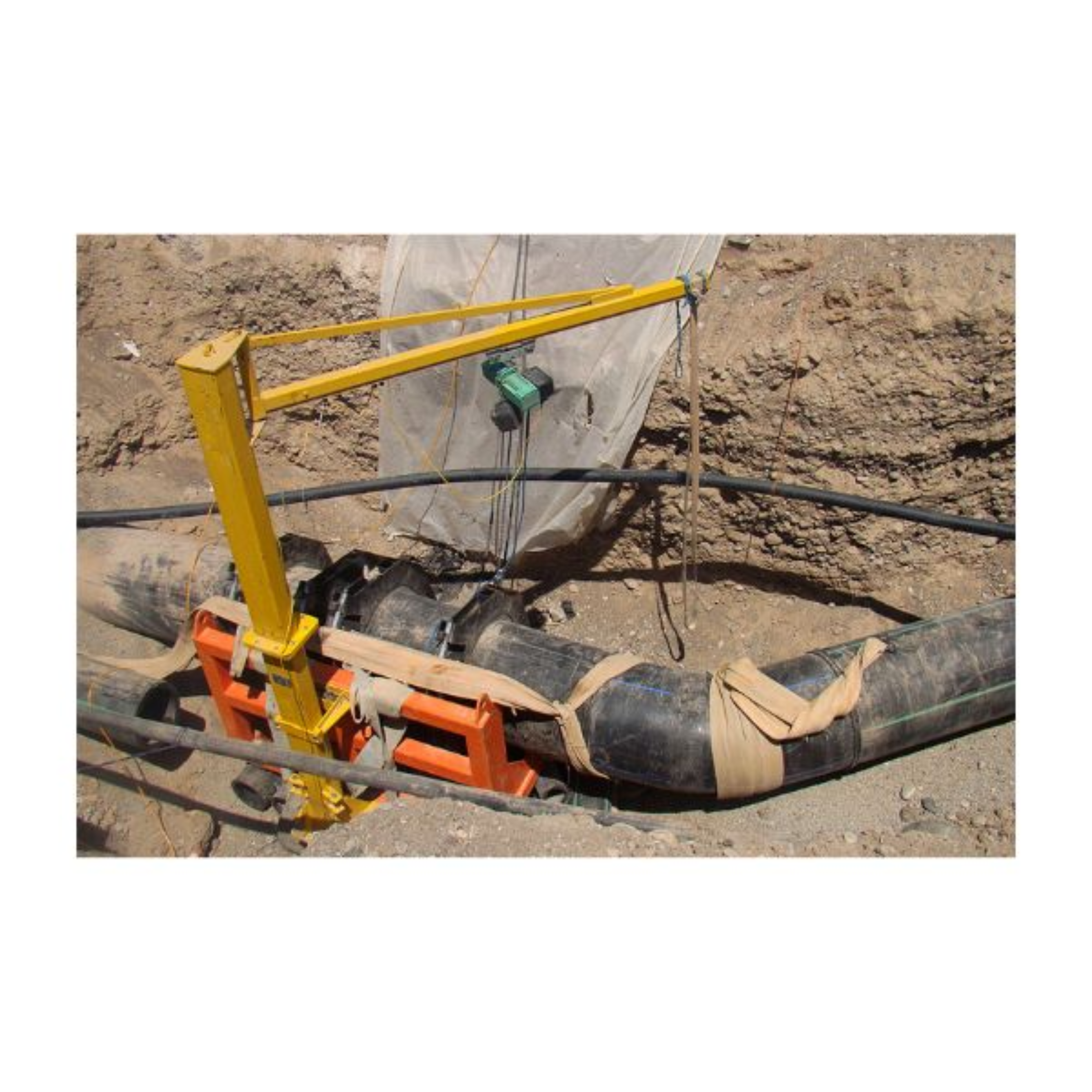

Electrical crane
Machine body trolley
Data-logging THE INSPECTOR
Rollers

Technical features

Materials	HDPE/PP/PVDF
Working range	Ø 630 ÷ 1000 mm
Power supply	400 V Three phase 50/60 Hz
Total absorbed power	25000 W
Working temperature	180° ÷ 280° C
Pressure working range	0 ÷ 150 bar
Weight only body machines	2500 Kg
Dimension	2463x1780x1700 mm
